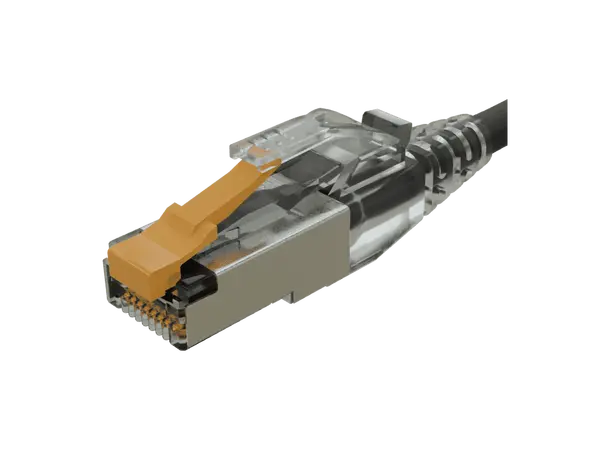

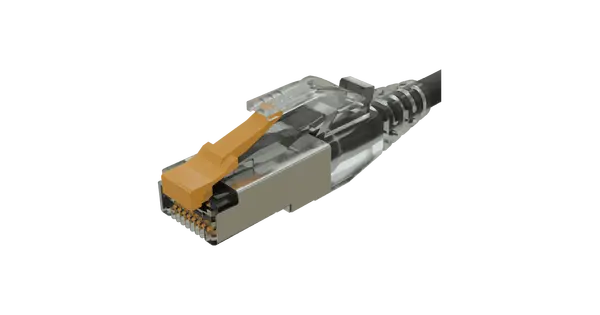

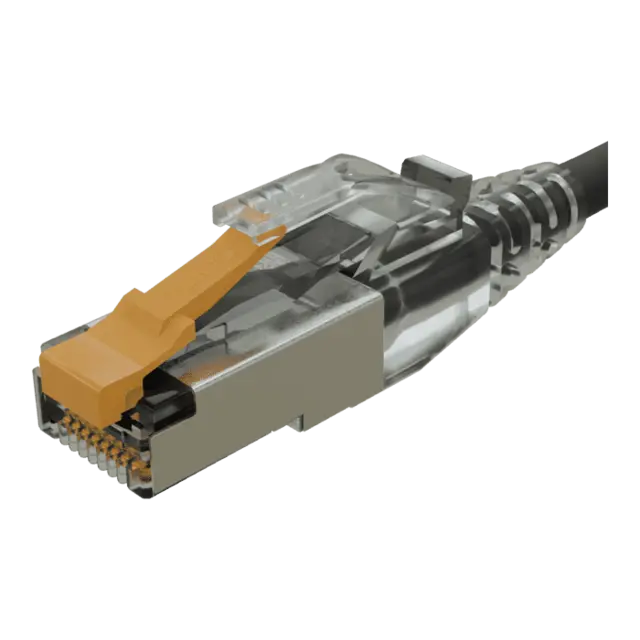

Kordz PRS SlimCat™ Shielded Crimp Connector and PRO Strain Relief

The Kordz PRS SlimCat™ Shielded RJ45 Crimp Connector is designed specifically for use with the Kordz PRS SlimCat™ Cat6A Network Cable. It features an innovative composite construction that incorporates a shielded transparent body and a durable ‘snap-proof’ nylon latch and is compatible with the PRO SlimCat™ Strain Relief.

This connector is rated for IEEE802.3bt PoE++ at 100W. Match it with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product Outline

• Enables delivery of ANSI/TIA-568.2-D Cat6A performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables
• Durable ‘snap-proof’ nylon latch
• Nickel-plated metal shielding
• Transparent polycarbonate body for termination ease

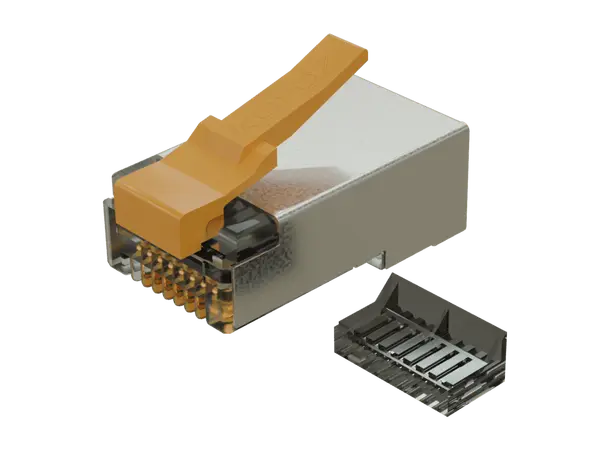

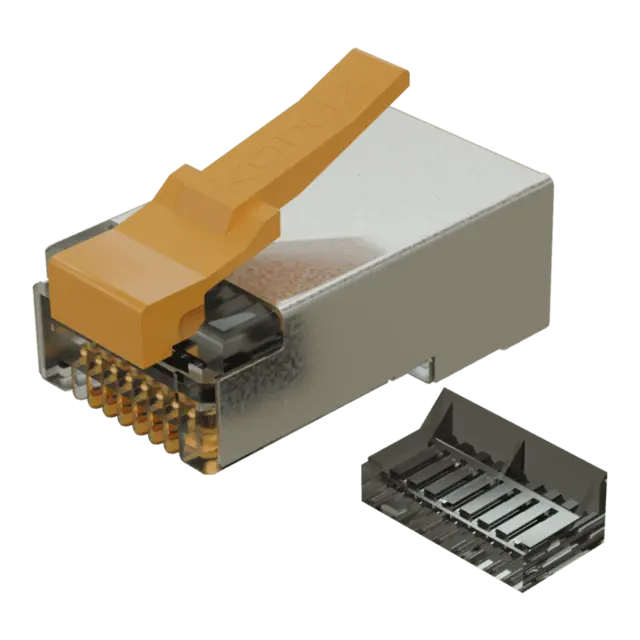

• Tinted wire-manager for handling ease and insertion verification

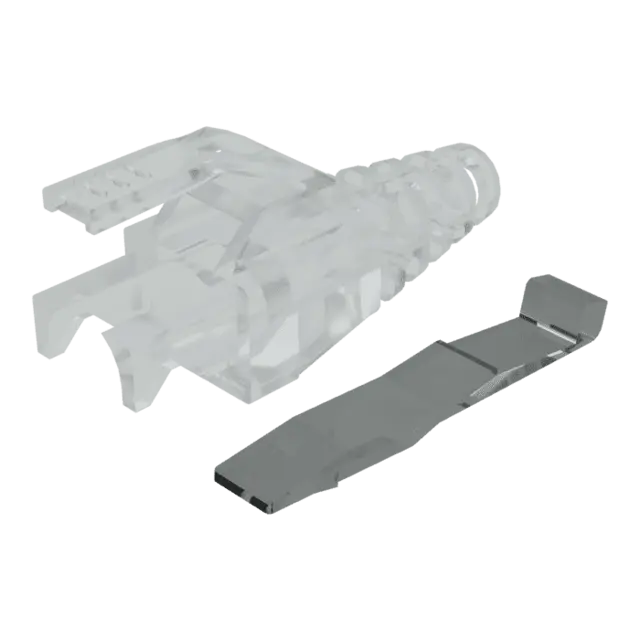

• Optional PRO strain relief available featuring a removable locking pin
• IEEE802.3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• Eco-friendly packaging
• Lifetime warranty

Technical Info

General

• Guaranteed Performance Category: Category 6A
• Applicable Performance Standards: ANSI/TIA-568.2-D
• Power over Ethernet Performance: IEEE 802.3bt PoE++ (max 100W)
• Power over Ethernet Tested Standards: IEC11801
• Shielding Type: Shielded
• Shielding Material: Brass with nickel plating
• Wiring Method: T568A | T568B

Dimensions

• Body Length: 22.50mm | 1.47in
• Body Width: 11.68mm | 0.67in
• Body Height: 6.6mm | 0.93in

Mechanical

• Housing Material: Polycarbonate
• Flammability Rating: UL 94 V-0
• Housing Colour: Transparent
• Contact Type: 3 Prongs, Solid / Stranded
• Gold Plating: 50µ”
• Liner: Included
