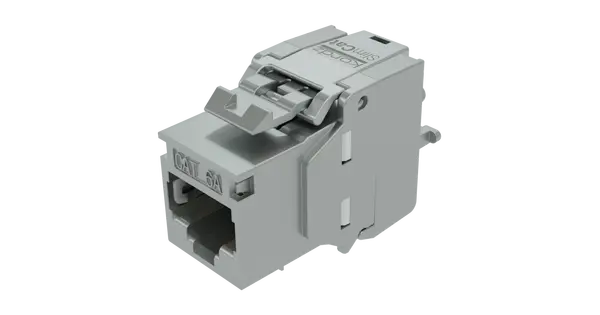

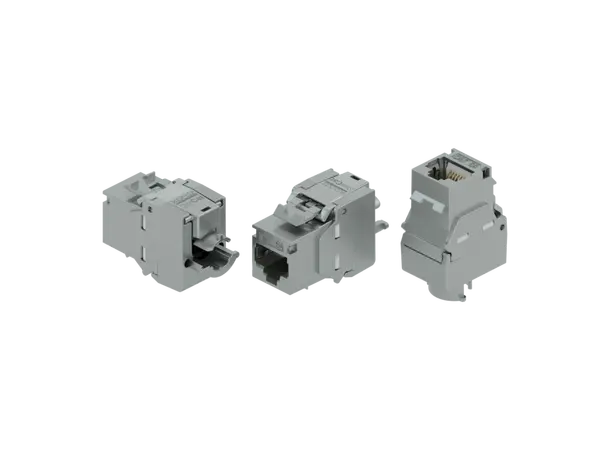

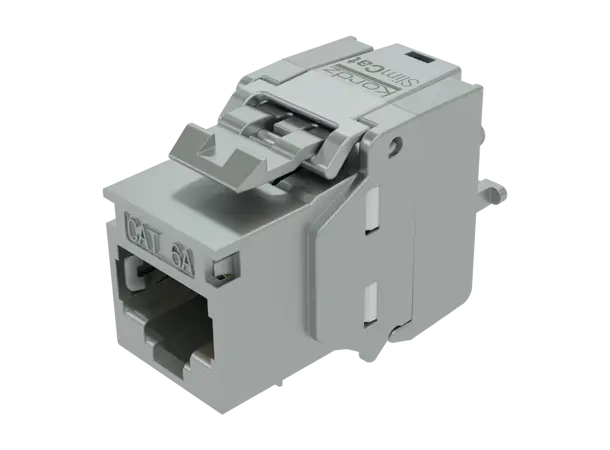

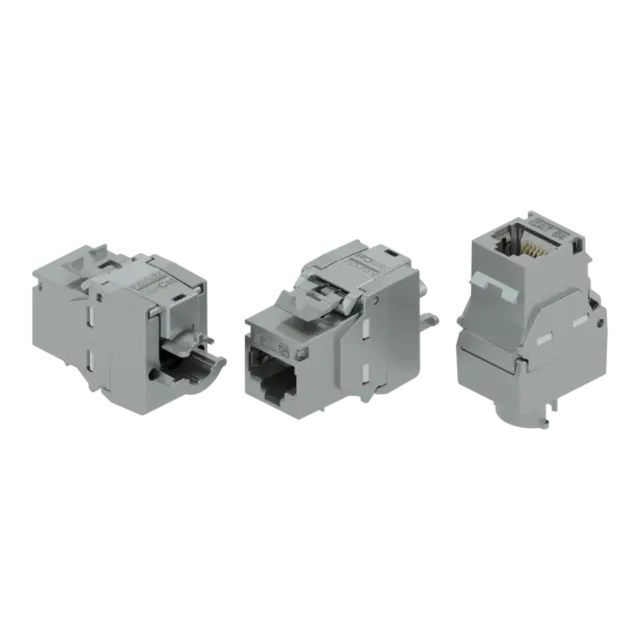

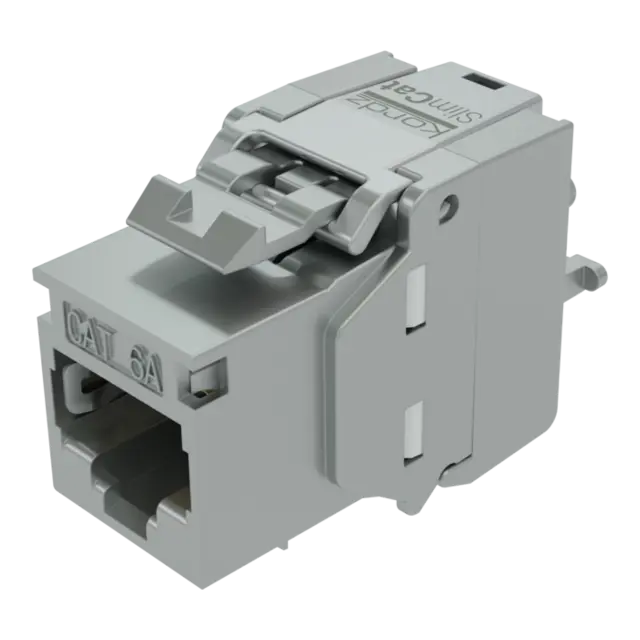

Kordz PRS SlimCat™ Cat6A Keystone RJ45 Socket

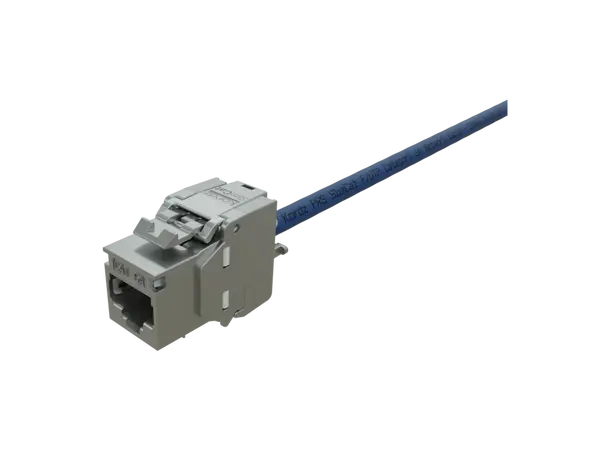

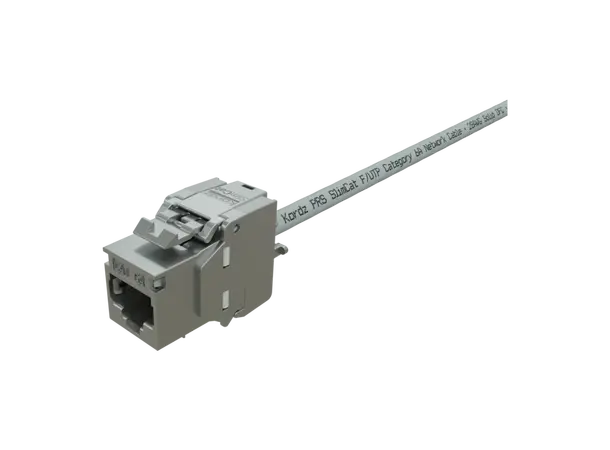

The Kordz PRS SlimCat™ Cat6A Keystone RJ45 Socket is designed specifically for use with the Kordz PRS SlimCat™ Network Cable, enabling professional integrators to deliver ANSI/TIA-568.2-D Cat6A permanent link performance up to 50 metres.

Featuring a die-cast zinc-alloy metallic clamshell design and metal latching mechanism, Kordz PRS SlimCat™ Keystones make installation easier, support PoE++ at 100W, and fit standard keystone panel cut-outs. Match with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product Outline

• Enables delivery of ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables
• Contacts and wire manager customised for 28AWG conductors
• Easy to terminate with metal latching mechanism
• Die-cast zinc-alloy metallic clamshell design
• IEEE802.3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• Eco-friendly packaging
• Manufactured with quality materials and using advanced manufacturing methods
• Lifetime warranty

Technical Info

Technical Specifications

• Connector Part No.: T3R48J-C6AS-ME
• Guaranteed Performance Category: Category 6A
• Applicable Standards: ANSI/TIA-568-C.2
• Housing Material: Zinc Alloy
• Flammability Rating: UL 94 V-0
• Contact Type: Three Prong for Solid / Stranded wires
• Contact Material: Copper
• Contact Plating IDC: Phosphor bronze, Tin Plated
• Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
• Housing Colour: Transparent
• Shielding Type: Shielded
• Operating Temperature: -10° to 66°C

Mechanical

• Keystone Body Length: 37.65mm | 1.48in
• Keystone Body Width: 17.10mm | 0.67in
• Keystone Body Height: 23.64mm | 0.93in
• Panel Mating Height: 16.10mm | 0.63in
• Panel Mating Width: 14.50mm | 0.57in

Electronic

• Voltage/Current Rating UL Applications: 125 Volts AC / 1.5 Amps
• Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
• Contact Resistance: = 20mO
• Insulation Resistance: = 500MO
• RJ45 Cycle: 750 times
• Insertion IDC: 20 times
• Wire Gauge min/max: 28AWG
• Conductor Diameter: 0.5mm Ø
• Cable Jacket Diameter: 5.5mm Ø
