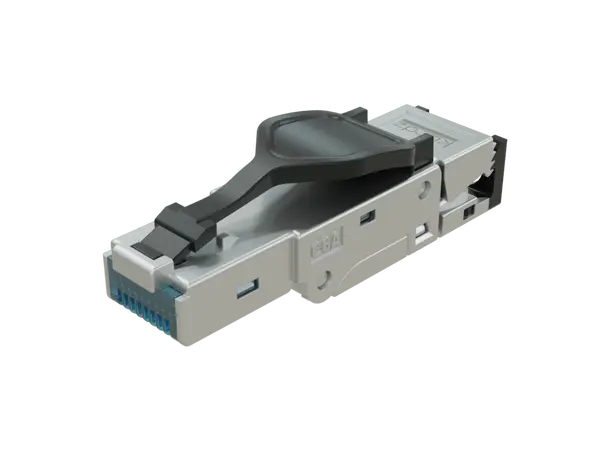

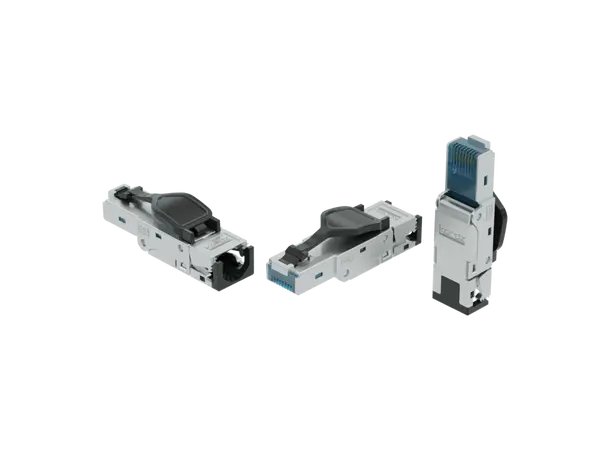

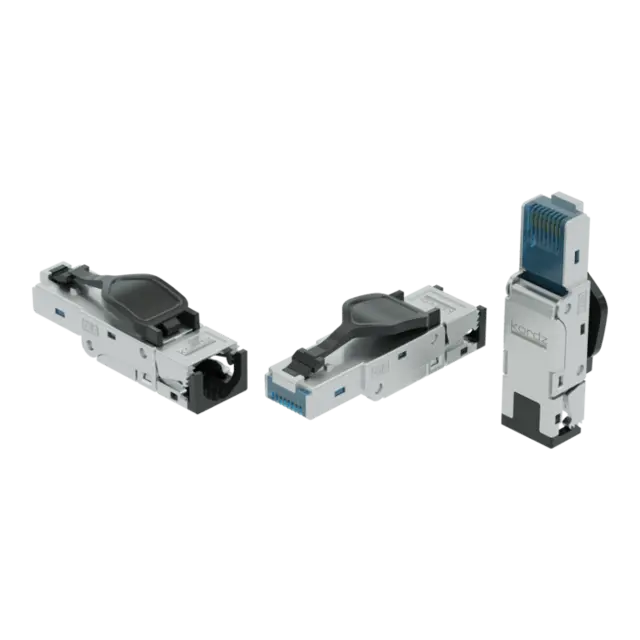

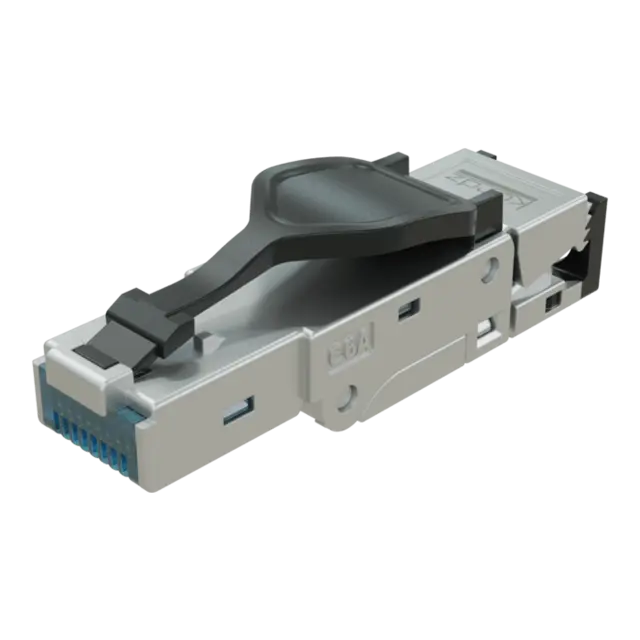

PRS Field Termination RJ45 Plug

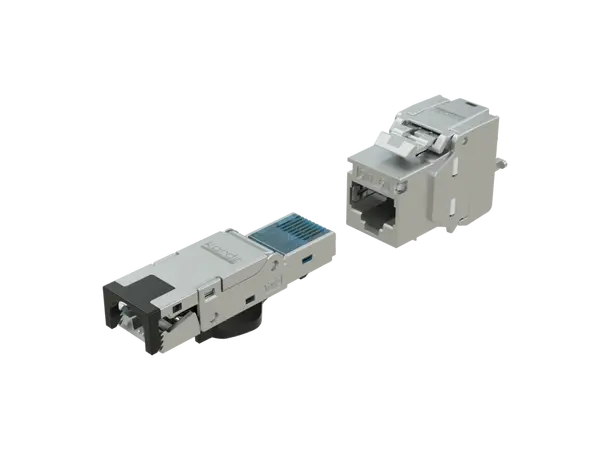

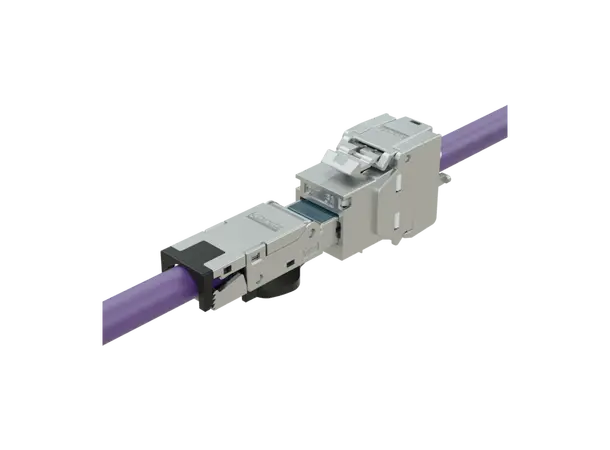

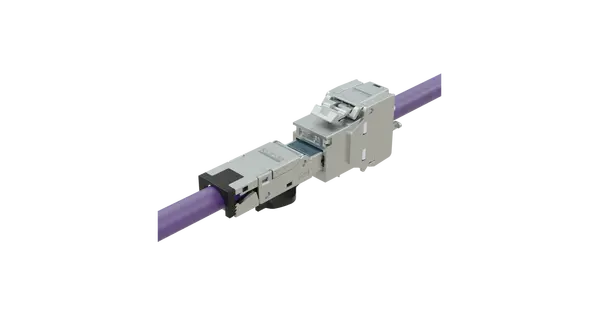

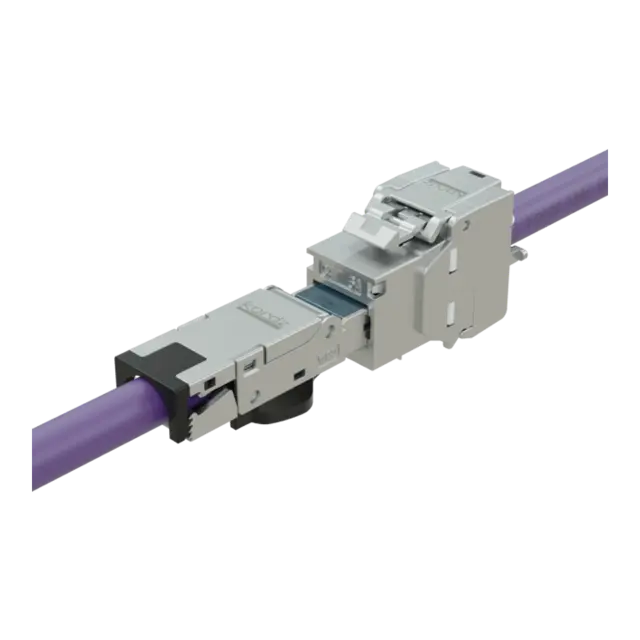

Kordz PRS Field Termination RJ45 Plugs perfectly complement Kordz ONE Series Bulk Category Cabling and give professional integrators total confidence to deliver an end-to-end cabling solution. Featuring a die-cast alligator style design and using advanced manufactured methods, you can match them with Kordz PRS Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Technical Specifications

• Connector Part No.: T3R45M-C6AS-ME
• Performance Standard: ANSI/TIA 568.2-D Category 6A
• Build Conforms to: IEC60603-7-4
• Keystone Body Material: Zinc-alloy Die-cast
• Flammability Rating: UL 94 V-0
• Contact Type: IDC (insulation-displacement contact)
• Contact Material: Phosphorus Bronze with 50µ” gold-plating
• Recommended Panel Cutout Dimensions: 14.8mm x 19.3mm ± 0.1mm
• Recommended Cable: Kordz ONE-CAT6A (Shielded Category 6A)
• Conductor Diameter: min: 26AWG | Ø5.5mm, max: 23AWG | Ø8.0mm
• Maximum Cable Diameter: 8.5mm

Mechanical

• Keystone Body Length: 37.70mm | 14.8in
• Keystone Body Width: 17.10mm | 6.7in
• Keystone Body Height: 23.64mm | 9.3in
• Panel Mating Height: 16.10mm | 6.3in
• Panel Mating Width: 14.50mm | 5.7in
