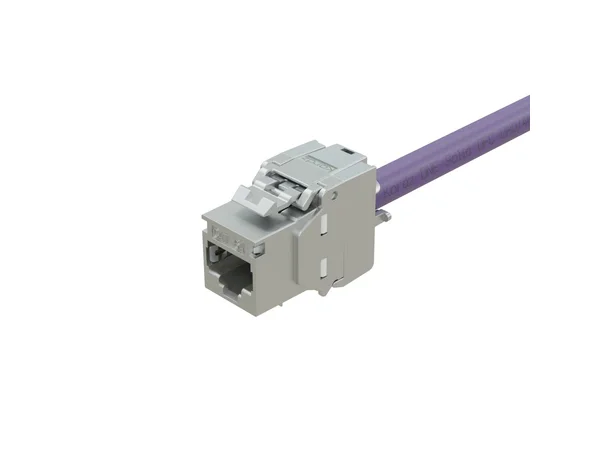

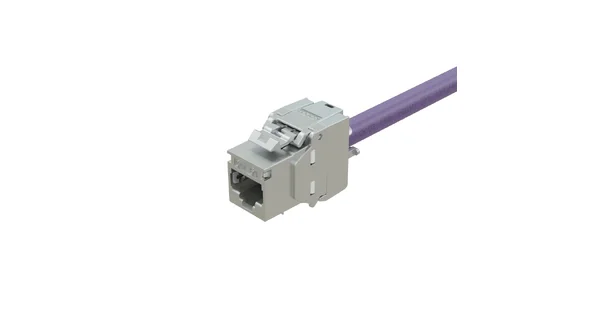

Kordz Keystone RJ45 Sockets perfectly complement Kordz ONE Series Bulk Category Cabling. Featuring a die-cast metal clamshell design and a latching mechanism, Kordz Keystone RJ45 Sockets are very easy to fit. Match them with Kordz PRS Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

The Kordz PRS Keystone RJ45 Socket is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.

Product outline

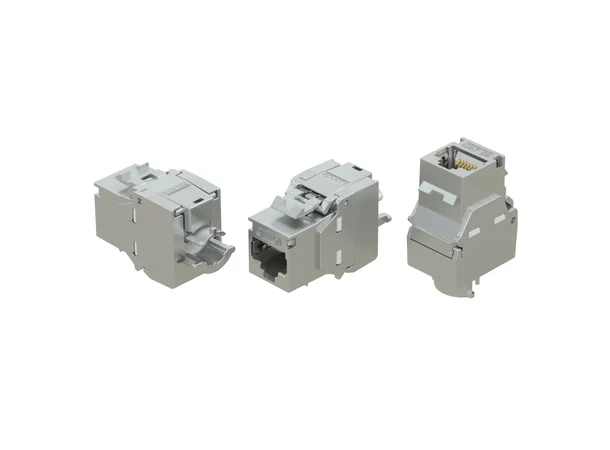

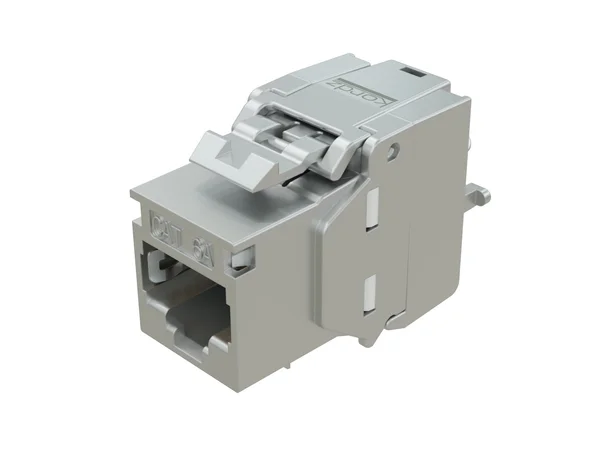

Die-cast metal clamshell design
Easy to terminate with latching mechanism
6 pieces per pack
Sturdy and robust shielded construction
Manufactured with quality materials and using advanced manufacturing methods
Backed by the Kordz Lifetime Guarantee

Technical info
Connector Part No.: T34R45J-C6AS-ME
Guaranteed Performance Category: Category 6A
Applicable Standards: ANSI/TIA-568-C.2
Housing material: Zinc Alloy
Flammability Rating: UL 94 V-0
Contact Type Three Prong for Solid / Stranded wires
Contact Material: Copper
Contact Plating IDC: Phospher bronze, Tin Plated
Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
Housing Colour: Transparent
Shielding Type: Shielded
Operating Temperature: -10° to 66°C

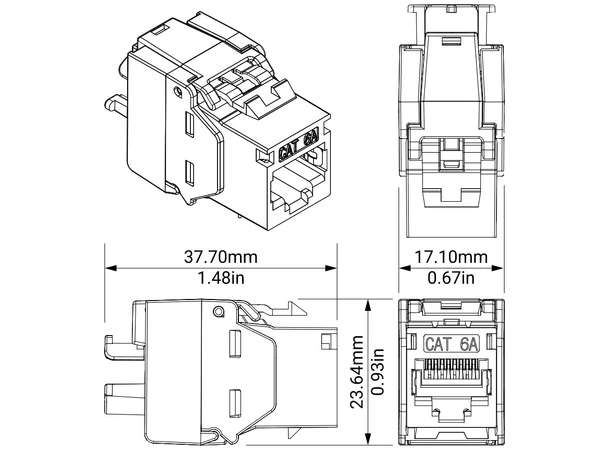

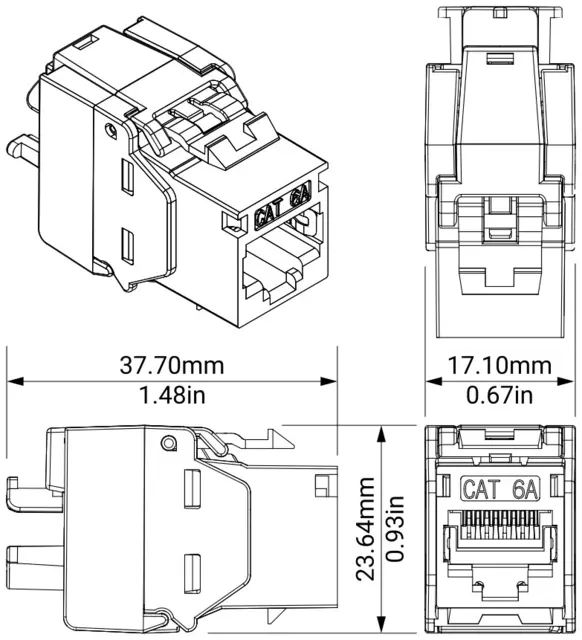

MECHANICAL
Keystone Body Length: 37.33mm | 14.7in
Keystone Body Width: 17.10mm | 6.7in
Keystone Body Height: 23.68mm | 9.3in
Panel Mating Height: 16.10mm | 6.3in
Panel Mating Width: 14.50mm | 5.7in

Electronic
Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: = 20m?
Insulation Resistance: = 500M?
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge min/max: min: 26AWG / max: 23AWG
Conductor Diameter: max:8.5mm Ø
Cable Jacket Diameter max: 6.5mm Ø
