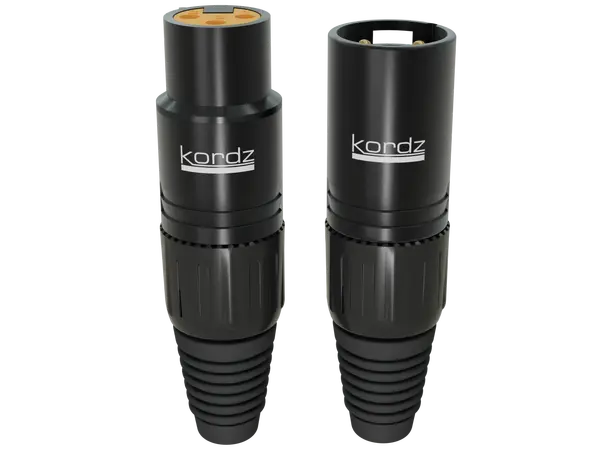

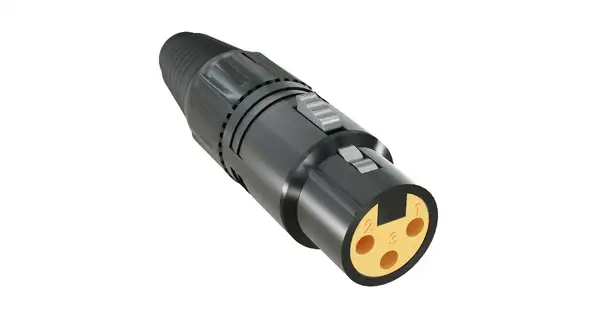

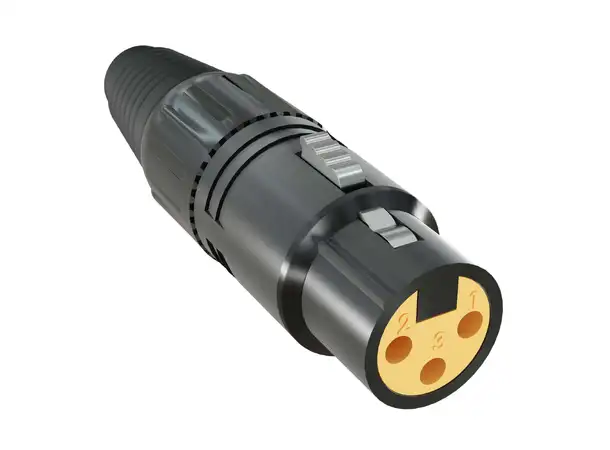

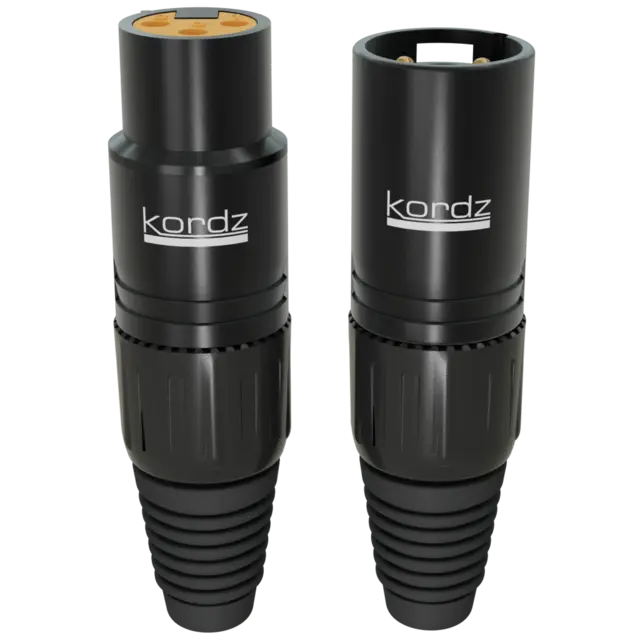

ONE XLR Connectors

The Kordz ONE XLR Connectors deliver durability and reliability for professional integrators. Featuring gold-plated solid pins and a robust zinc-alloy shell, this 3-Pin XLR Connector is built to withstand the rigours of frequent use.

Engineered to fit perfectly with standard specifications, it ensures seamless compatibility across a range of audio equipment. The connector’s solid construction and ease of soldering make it the ideal choice for professional audio installations.

Product Outline

• Robust zinc-alloy shell and gold-plated solid pins for durability
• Rated for over 5,000 insertion cycles
• Compatible with a wide range of cable diameters
• Compliant with IEC 61076-2-103 standards
• Unique Kordz orange internal pin insert for easy identification
• UL94 V-0 fire rating
• Lifetime Warranty

Technical Info

Conforming Standards

• Construction Standard: IEC 61076-2-103
• Fire Rating Standard: UL 94 V-0

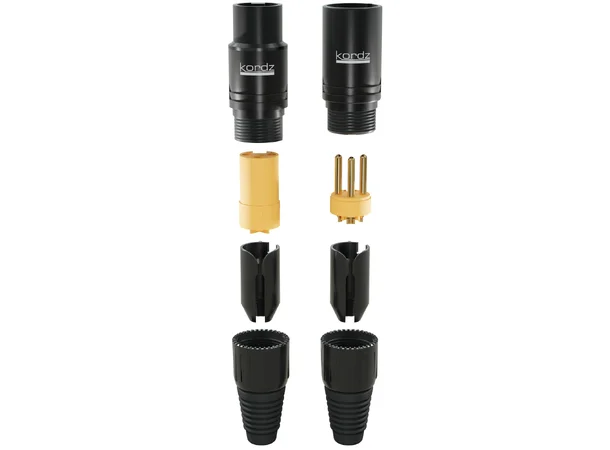

Construction

• Connector Shell: Die-cast zinc alloy (powder-coated black)
• Pin-out Insert: PBT (orange)
• Boot + Strain Relief: POM + Thermoplastic Rubber (black)
• Pins: Brass, 3-pin, 2µ” Gold plated
• Internal Cable Clamp: POM (black)

Mechanical

• Mating Cycles (lifetime): > 5000 cycles
• Compatible Cable Diameter: 3.6mm to 6.5mm
• Operating Temperature Range: -20°C ~ 80°C
• Insertion Force: <20N
• Extraction Force: <20N

Electrical

• Contact Resistance: <3 mO
• Insulation Resistance: >1 GO
• Dielectric Strength: 1500V/DC
