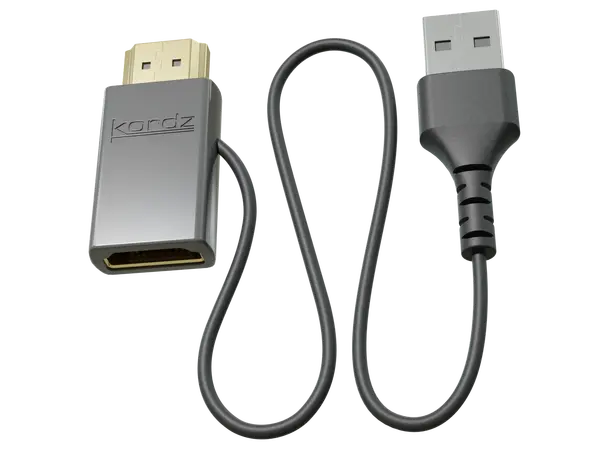

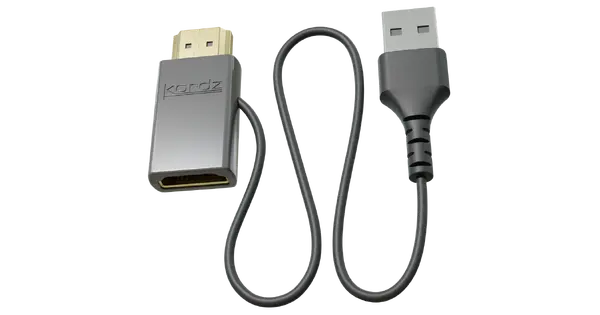

PRO HDMI 5V Power Injector

The Kordz PRO HDMI 5V Power Injector is the easy and reliable way to fix power issues in professional HDMI installations. Designed by integrators for integrators, it injects stable 5V power directly into the HDMI signal path, ensuring Active HDMI cables and connected devices operate reliably, even when source devices fail to provide sufficient power.

Designed with an ultra-compact form factor, integrated power pigtail, and USB-A power plug, it’s perfect for tight installation spaces. With 48Gbps passthrough and a lightweight design, this power injector is the must-have solution for professional integrators seeking faultless HDMI performance.

Product Outline

• Injects stable 5V power into the HDMI 5V pin for reliable Active HDMI cable operation
• Supports 48Gbps passthrough for uncompressed 8K/10K video
• Ultra-compact design for easy installation in high-density setups
• Integrated power pigtail reduces cable clutter in tight spaces
• USB A power plug for flexible power sourcing
• Thin and flexible 0.5m USB-A cable ideal for installation
• Lightweight construction prevents added strain on HDMI sockets
• Individually tested for consistent quality and performance
• Backed by a 2 Year Warranty for peace of mind

Technical Info

Connections

• Input Connector(s): HDMI-A female
• Output Connector(s): 1 x HDMI-A male
• Power Connector(s): 1x USB-A (50cm cable)
• Contact Material: 24kt Gold-plated

Electric Signal

• Maximum Pixel Clock / Bandwidth: 4K@60Hz, UltraHD, 2160p
• Digital Video Formats: HDMI High Speed w. Ethernet compatible
• Digital Audio Formats: HDMI High Speed w. Ethernet compatible
• HDCP: Yes
• CEC: Yes
• EDID: Yes

Construction

• Main Conductors: Stranded OFC 30 AWG
• Cable Jacket: VW-1 PVC Composite, 2.0mm, 0.08in Ø
• Connector Shell: Stainless Steel, Gold-plated
• Insulation Resistance: 10MO (Min) 100V/DC
• Connector Pins: Solid OFC, Gold-plated, 30µ”
• Backshell Material: PVC outer shell, PVC boot & strain relief

Mechanical

• Power Consumption: 5V USB
• Cable Diameter: 2.0mm | 0.2in Ø
• Connector Shell: Stainless Steel, Gold-plated
• Withdrawal Force HDMI: >9.8N (1.0kg/ 2.2 lbs), <39.2N (4kg / 8.8 lbs)
• Withdrawal Force USB: >10N (1.0kg / 2.2lbs), <35N (3.5kg / 7.8 lbs)
• Connector Lifetime: >10000 times
