ONE Balanced Audio Cable

The award-winning Kordz ONE Balanced Audio Cable is engineered to deliver robust audio performance in professional audio installations. It features high-purity stranded OFC conductors and a comprehensive aluminium foil shield for 125% coverage. This ensures minimal signal interference over extended distances.

The cable’s installation-friendly design, coupled with an LSZH jacket, makes it ideal for versatile installations whether in-wall or exposed.

Product Outline

• High-purity stranded OFC conductors for robust sound transmission
• Comprehensive aluminium foil shielding for maximum interference protection
• Foil shield and drain wire for simplified installation
• Versatile LSZH jacket that’s ideal for various installation environments
• Lifetime Warranty

Technical Info

Construction

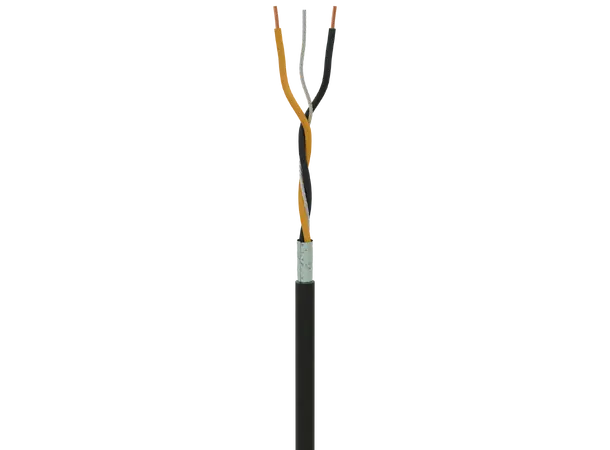

• Cable Lay-Up: 2 cores (Black & Orange), shielded (foil + drain wire)
• Primary Conductors: Stranded 22AWG OFC (19/0.16mm)
• Insulation: Polyethylene (0.2 ± 0.05mm)
• Drain Wire: Stranded 22AWG tinned OFC (7/0.250mm)
• Shielding: Aluminium + PET foil, 125% coverage
• Cable Jacket Material: LSZH composite material
• Jacket Thickness: 0.5mm (nominal)
• Cable Diameter: 3.6mm | 0.14in Ø
• Operating Temperature: -20°C to +60°C

Mechanical

• Cable Bend Radius: 36mm | 1.4in
• Max. Pull Tension: 20kg | 44lbs
