4-Channel 8A DMX LED Driver
4-Channel 8A DMX LED Driver

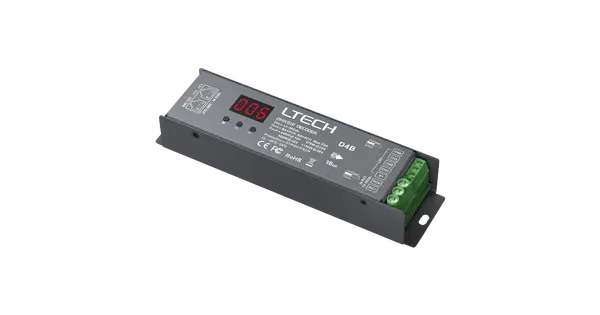

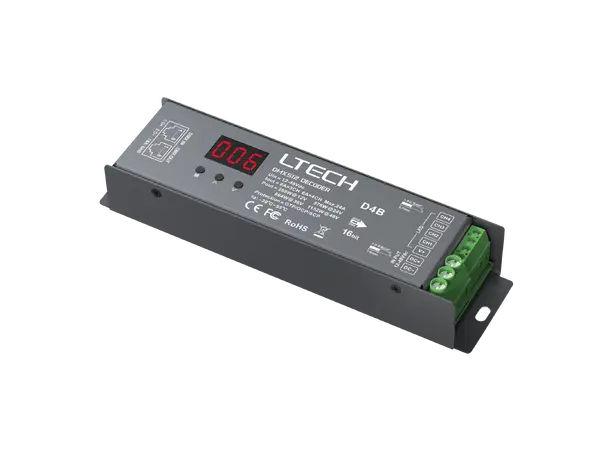

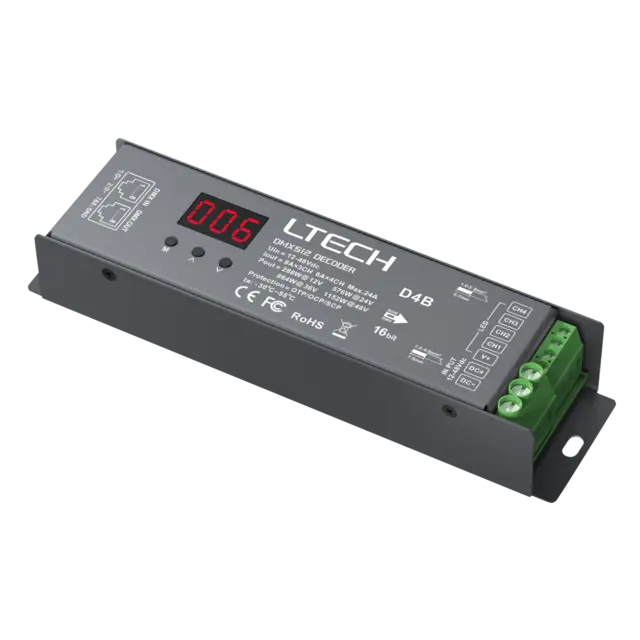

This 4-channel, 8A DMX LED Driver is equipped with RJ45 DMX signal ports. In DMX mode, the digital display shows key settings including the DMX address, PWM frequency, dimming mode (standard or smooth) and grey level. In custom mode, the display provides information about lighting effects, colour change speed, brightness and more.
The built-in control buttons make parameter adjustment easy. With RDM protocol support, operations can also be completed via an RDM master console. The driver features built-in circuit protection for safe operation.
Main Features
- 4x 8A output
- Digital display and control buttons
- Supports 8-bit and 16-bit dimming
- Standard or smooth dimming options
- Built-in circuit protection
Specifications
Control and Programming
Electrical Specifications and Connections
- Power Supply: 12–48 V DC
- Power Connector In: Open End
- Power Connector Out: Open End
Mechanical Specifications
- Length: 175 mm (6.89?)
- Width: 46 mm (1.811?)
- Height: 30 mm (1.181?)
- IP Rating: IP20 (indoor use only)
- Colour: Black
Thermal Specifications
- Maximum Ambient Temperature: 55?°C (131?°F)
- Minimum Ambient Temperature: -25?°C (-13?°F)
