Artecta Cartago Dropper 2835 - 160

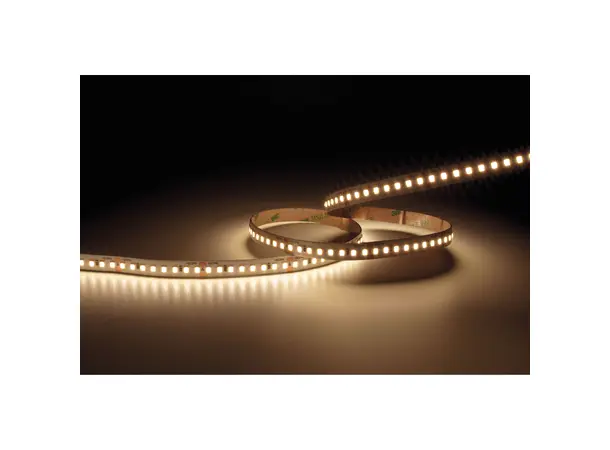

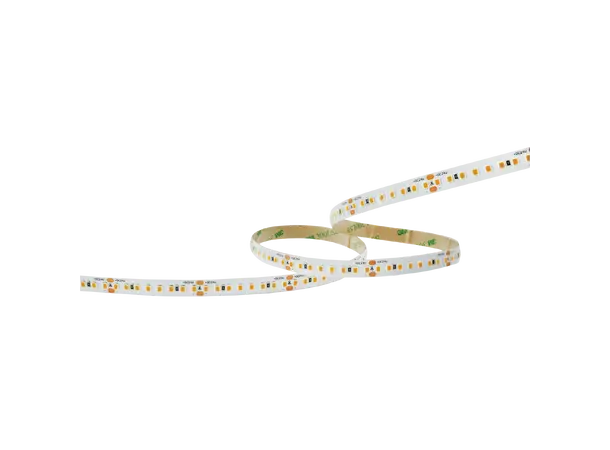

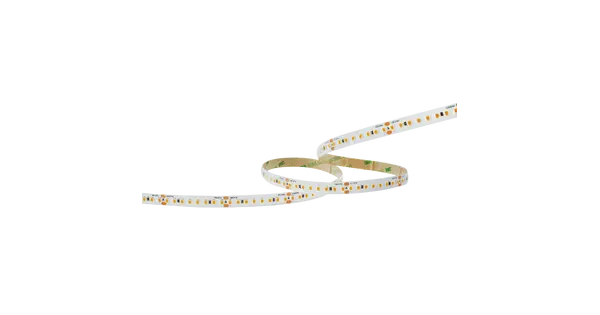

The Artecta Cartago Dropper 2835 - 160 is an IP62-rated LED strip with 160 LEDs per meter, featuring a silicone spray coating. It is suitable for humid environments, but not intended for wet conditions. The strip is available in colour temperatures ranging from 2700 K to 4000 K (soft white to neutral white) and delivers a high CRI of 90.

With a self-adhesive backing, it can be easily installed on a smooth, degreased surface. For optimal performance, it is recommended to use the strip in an aluminium profile to enable proper heat dissipation by convection.

Note: Permanent outdoor installation is not recommended as the silicone is not UV resistant. Due to manufacturing variations, photometric data may differ between production batches in accordance with EU directives. For best heat dissipation, do not close the profile with a cover.

Specifications

Source

• Light Source Type: LED
• LED Quantity: 160 LEDs/m
• Power per LED: 0.075 W
• LED Colour Type: WW
• LED System: SMD2835
• Total Luminous Flux: 9225 lm
• Lumen Output per Meter: 1845 lm
• CRI: 90
• CCT: 3000 K

Electrical Specifications and Connections

• Power Supply: 24 V DC
• Total Power Consumption: 72 W
• Power per Meter: 14.4 W

Mechanical Specifications

• Length: 5 m (16.404 ft)
• Cutting Length: 50 mm
• Height: 1.4 mm (0.055?)
• Width: 10 mm (0.394?)
• Weight: 0.15 kg (0.331 lb)
• IP Rating: IP62
• PCB Colour: White

Thermal Specifications

• Maximum Ambient Temperature: 50?°C (122?°F)
• Minimum Ambient Temperature: -20?°C (-4?°F)

Product Compliance

• Energy Efficiency Class: E
