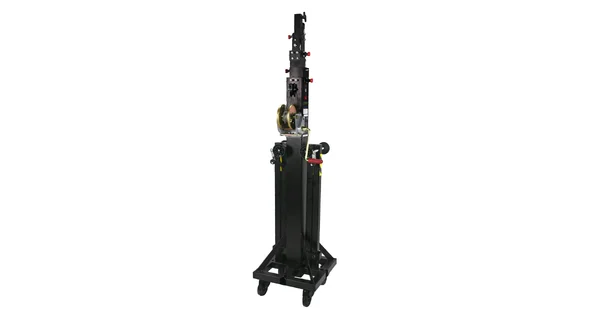

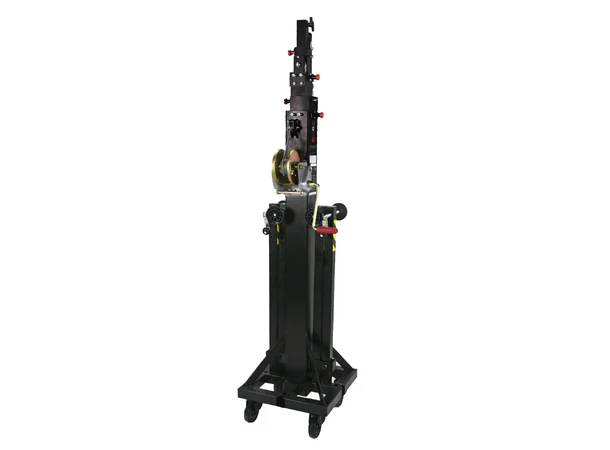

MEGARA 300

The MEGARA 300 lifting tower is a heavy-duty solution designed to lift heavy loads for medium-sized events and audiovisual productions. With an impressive load capacity of 300kg and a maximum height of 6,10m, this telescopic tower offers solid and reliable support for your lighting equipment, speakers and truss structures. Constructed with durable, high quality materials, the MEGARA 300 guarantees strength and stability during use. Its telescopic design allows for smooth and precise height adjustment, adapting to the specific needs of each event. In addition, it has an integrated safety system that ensures risk-free lifting. The MEGARA 300 stands out for its ease of assembly and transport. Despite its strength and load capacity, it can be disassembled and transported efficiently, saving time and effort in each assembly. Its compact, foldable design facilitates storage and transport, ensuring more convenient logistics. With this high-end lifting tower, you can take your audiovisual productions to the next level. Whether it's concerts, festivals, corporate events or live shows, the MEGARA 300 offers the robustness and stability needed to confidently lift your equipment and ensure a stunning, professional visual experience.

Technical Specifications

-Maximum height: 6,10m
-Maximum load: 300kg
-Height folded: 1,92m
-Weight: 90kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,44 x 1,44m
-Minimum charge: 25kg
-Material: Galvanized steel under EN 10305-5.
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: External trigger in sections
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,47 x 0,47m
-Leg attachment: Safety pins

Details

Base-leg trigger: The leg trigger allows it to be anchored to the base in a more agile way, through a push system that replaces the old and uncomfortable ring triggers.

Polyamide plates: This material offers greater resistance than metal and does not wear out. They rest on the surface without damaging the floor, carpets, etc.

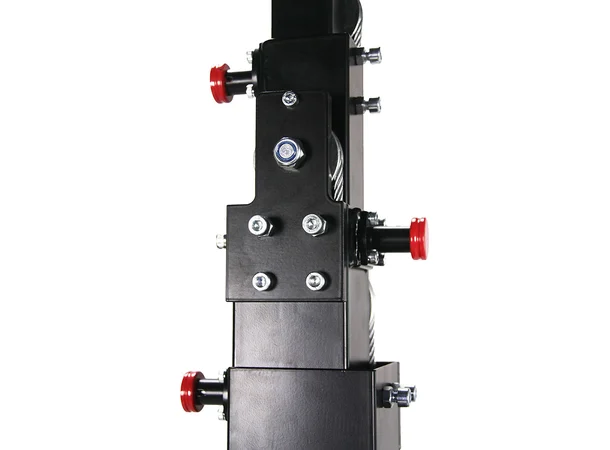

Safety pins: The safety pins prevent the load from collapsing. In addition, they allow the selection of different heights and the raising of all the bars equally, distributing the load from the main bar to the last bar, which extends the useful life of the tower.

Winch: Our winches are manufactured by high-quality companies with recognized prestige. They are durable and long-lasting. In addition, they are oversized for greater safety and better cable traction.

Reinforced base: All our towers have a reinforced iron base capable of supporting large weights and high altitudes.

Level: The new location of the level at the base allows for more comfortable and precise tower stabilization.

Pulleys and pulley holders: Made of reinforced steel, they offer greater resistance.
