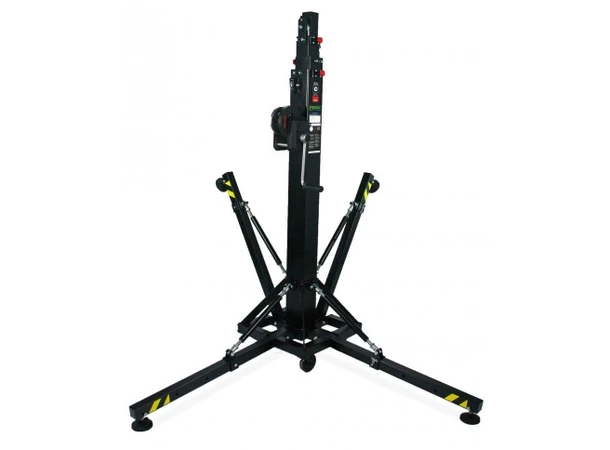

ELV-230/5

The ELV-230/5 lifting tower is a robust and reliable solution for lifting sound equipment, lighting and structures at events and audiovisual productions. With a maximum load capacity of 230kg and a maximum height of 5.30m, this telescopic tower offers safe and sturdy support for your lifting needs. Made of durable, high-quality materials, the ELV-230/5 ensures excellent stability and performance during use. Its telescopic design allows easy adjustment to the desired height, adapting to the specific needs of each event. In addition, an integrated safety system provides additional protection and ensures safe operation. The ELV-230/5 stands out for its easy assembly and disassembly, which speeds up the installation process on any surface and even in confined spaces thanks to its tensioning system on the legs and tilting plates. Its sturdy and stable structure provides a safe platform for lifting loudspeakers, lighting systems and other heavy structures. In addition, its compact design makes it easy to transport and store, which is convenient for event professionals and mobile productions. Whether you're organising concerts, festivals, conferences or other events, the ELV-230/5 lifting tower gives you the confidence and performance you need to lift your equipment efficiently and safely. Harness the power and versatility of this tower lift to create unforgettable, high-quality audio-visual experiences.

Technical Specifications

-Maximum height: 5,30m
-Maximum load: 230kg

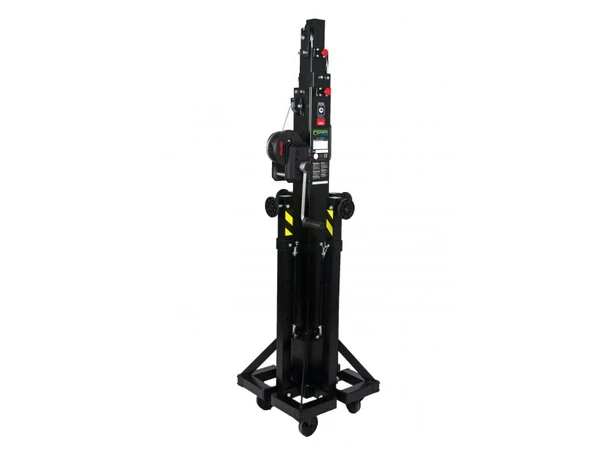

-Height folded: 1,82m
-Weight: 88kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,53 x 1,53m
-Minimum charge: 25kg
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: External trigger in sections
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,49 x 0,49m
-Leg attachment: Safety pins

Details

Nylon pads: This material offers greater strength than metal and does not wear out. They rest on the surface without damaging the floor, carpets, etc.

Safety triggers: The triggers prevent the load from collapsing. In addition, they allow you to select different heights and raise all the bars equally, distributing the load from the main bar to the last bar, which extends the lifespan of the tower.

Tilting pads: The new tilting pads of the ELV series rest entirely at any angle and surface (walls, steps, etc.), achieving better fixation and stability.

Adjustment tensioner and tilting system: The pads, along with the adjustment tensioner and its tilting system, allow the tower to rest entirely on any surface or fixed object.

Winch: Our winches are manufactured by high-quality, reputable companies. They are durable and long-lasting. In addition, they are oversized for greater safety and better cable traction.

Reinforced base: All our towers have a reinforced iron base capable of withstanding great weights and heights.

Level: The placement of the level at the base allows the tower to be stabilized more easily and precisely.
