AT-06
The AT-06 lifting tower is a reliable and efficient option for lifting loads from the ground with ease. Manufactured by FENIX Stage, this front loading tower is constructed from high quality aluminium, giving it exceptional strength and durability. With a maximum height of 6.50m and a load capacity of up to 250kg, the AT-06 is perfect for a variety of event, concert and staging applications. From line array systems to trussing and LED screens, this tower delivers outstanding performance. The AT-06 stands out for its practical and functional design. It can lift the load directly from the floor, which reduces effort and speeds up the assembly process. In addition, its aluminium construction makes it lightweight and easy to transport, making it an excellent choice for touring and mobile events. Equipped with an AL-KO Compact winch, it offers a powerful lifting mechanism and guarantees durability. Its galvanised steel cable meets quality and strength standards, providing hassle-free operation. Safety is a priority in the design of the AT-06. It features a safety system that includes an internal pendulum and an external trigger in sections, ensuring safe and secure use. Available in two colour options, silver and black, the AT-06 combines functionality with style. Its robust design and focus on safety make it an essential tool for professionals who need to lift loads with efficiency and peace of mind. In short, the AT-06 tower lift offers strength, versatility and safety. Its intelligent design, load capacity and ease of use make it the ideal choice for a variety of applications in the entertainment and live events industry.
Technical Specifications
-Maximum height: 6,50m
-Maximum load: 250kg

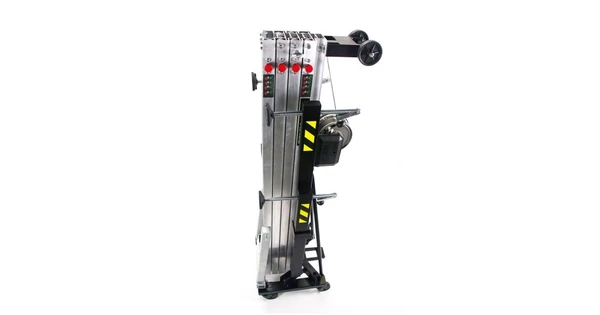

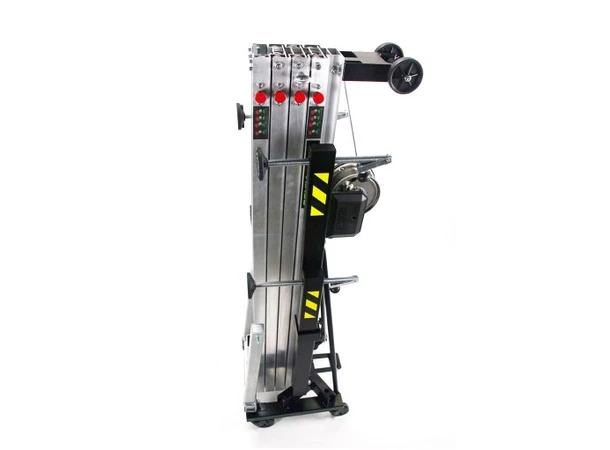

-Height folded: 1,76m
-Weight: 111kg
-Winch: AL-KO Type 900 Compact 900kg
-Workspace: 1,66 x 1,72cm
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,48 x 0,48m
-Leg attachment: Safety pins
Details
Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.
Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.
Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.
Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.
Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.
Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.
Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.
Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.
Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.
Fixation: Prevents the cart from moving during transport.
Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.
Trigger: Allows you to select different heights and distribute the load equally among all bars.
