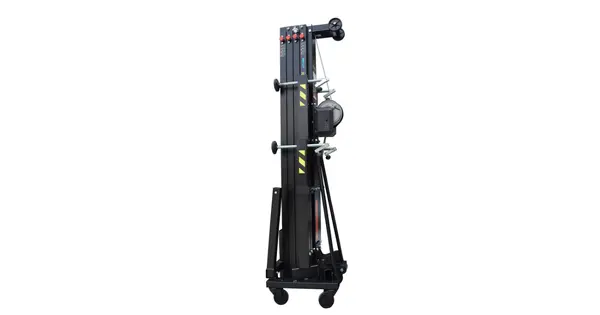

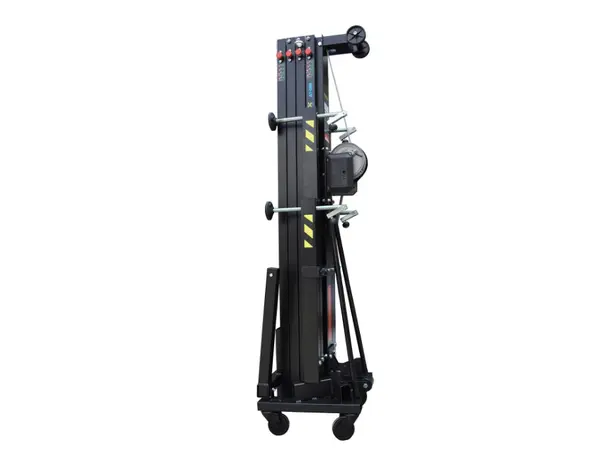

AT-05B

The AT-05B lifting tower is an efficient and reliable solution for easily lifting loads from the ground. Designed by FENIX Stage, this front loading tower is manufactured in high quality aluminium, which guarantees its strength and durability. With a maximum height of 5.40m and a load capacity of up to 250kg, the AT-05B is ideal for a wide range of applications in events, productions and staging. From line array systems to trussing and LED screens, this tower offers exceptional performance. The AT-05B features a compact, foldable design, making it easy to transport and store. Its light weight of 96kg makes it easy to handle and set up in different locations, making it an ideal choice for touring and touring events. Equipped with a 900kg winch, the AT-05B offers a powerful lifting mechanism. Its galvanised steel cable meets safety and strength standards, providing reliability during use. Safety is a priority in the design of the AT-05B. It features a safety system that includes an internal pendulum and an external trigger in sections, ensuring safe and secure operation. Available in black, the AT-05B has a sleek and professional look. Its robust design and focus on safety make it an indispensable tool for professionals who need to lift loads efficiently and safely. In short, the AT-05B tower lift offers strength, versatility and safety. Its compact design, load capacity and ease of use make it an ideal choice for a variety of applications in the entertainment and live events industry.

Technical Specifications

-Maximum height: 5,40m
-Maximum load: 250kg
-Height folded: 1,76m
-Weight: 96Kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,66 x 1,72m
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,48 x 0,48m
-Leg attachment: Safety pins

Details

Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.

Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.

Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.

Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.

Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.

Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.

Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.

Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.

Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.

Fixation: Prevents the cart from moving during transport.

Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.

Trigger: Allows you to select different heights and distribute the load equally among all bars.
