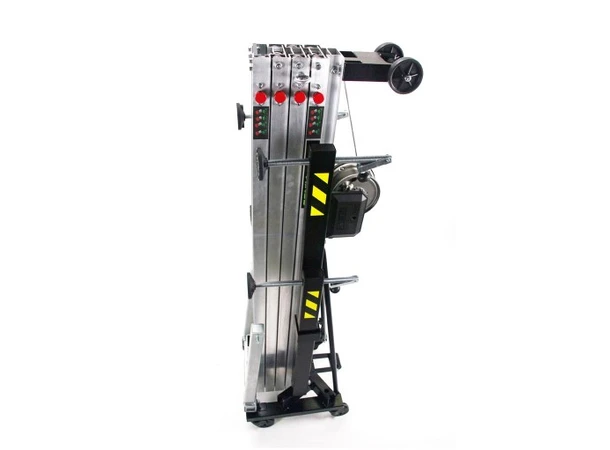

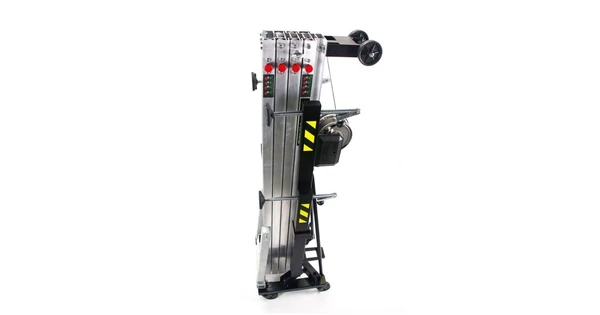

AT-05

Introducing the AT-05 lifting tower, a reliable and efficient solution for lifting loads from the ground in a simple way. Designed by FENIX Stage, this front loading tower is made of high quality aluminium, which guarantees its strength and durability. With a maximum height of 5.40m and a load capacity of up to 250kg, the AT-05 is ideal for a wide range of applications. From lifting line array systems to trussing and LED screens, this tower offers exceptional performance for events, productions and staging. The AT-05 is available in two colour options: silver and black (AT-05B). This allows you to choose the option that best suits your needs and aesthetic preferences, ensuring a professional presentation in any environment. Equipped with a 900kg winch, the AT-05 offers a powerful lifting mechanism and guaranteed durability. Its galvanised steel cable meets safety and strength standards, providing reliability and peace of mind during use. Safety is a priority in the design of the AT-05. It has a safety system that includes an internal pendulum and an external trigger on each of its sections, guaranteeing safe and secure operation. Weighing 96kg, the AT-05 is easy to transport and mount in a variety of locations. Its compact, foldable design makes it easy to store and transport, making it a convenient choice for touring and travelling events.

Technical Specifications

-Maximum height: 5,40m
-Maximum load: 250kg
-Height folded: 1,76m
-Weight: 96Kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,66 x 1,72m
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,48 x 0,48m
-Leg attachment: Safety pins

Details

Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.

Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.

Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.

Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.

Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.

Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.

Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.

Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.

Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.

Fixation: Prevents the cart from moving during transport.

Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.

Trigger: Allows you to select different heights and distribute the load equally among all bars.
