4KE display solution
- 7,000-lumen brightness Sharp images and vivid colours, even in well-lit rooms
- 4KE resolution Sharp 4KE images for excellent clarity
- BYOD connectivity with optional wireless or wired and HDBaseT
- Effortless, flexible installation Lightweight and compact design with wide lens shift
- Large image Scalable display size of up to 500 inches
Overview

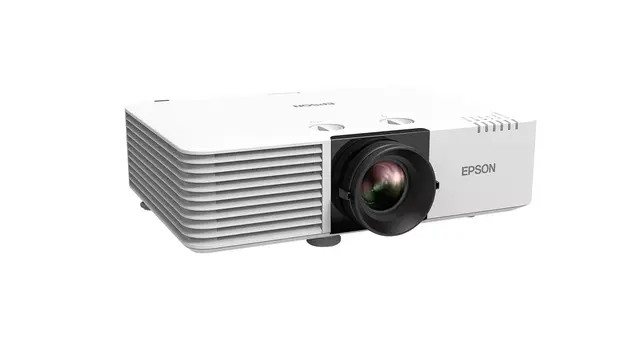

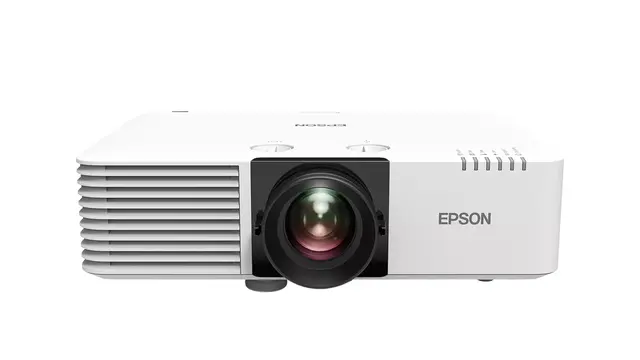

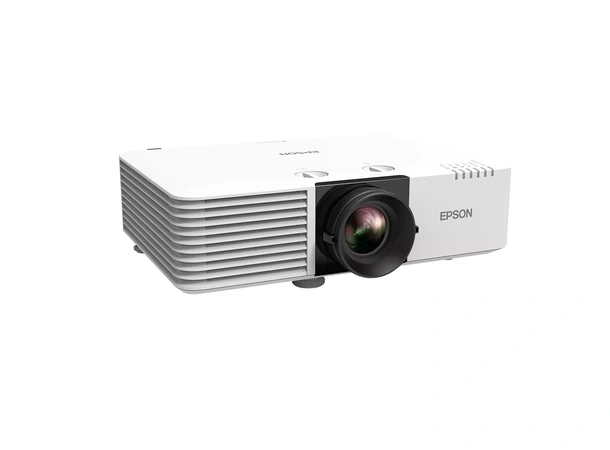

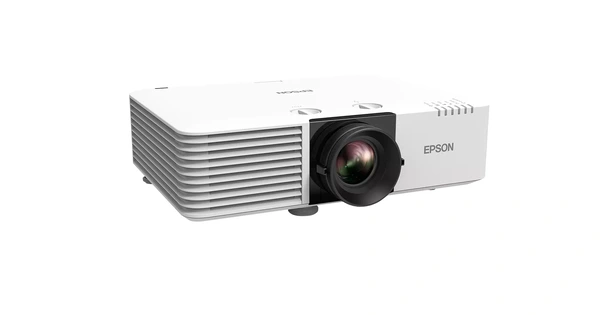

Exceed your vision with Epson compact 3LCD technology laser projector, delivery sharp and smooth 4K images. The EB-L770U delivers effective, practical and creative display applications across a number of different industries.
Outstanding, bright and clear
Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L770U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L770U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.
Superior connectivity
This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L770U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.
Effortless and flexible installation

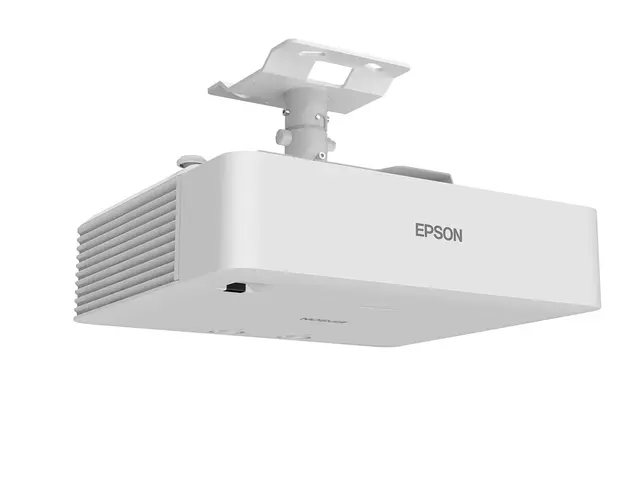

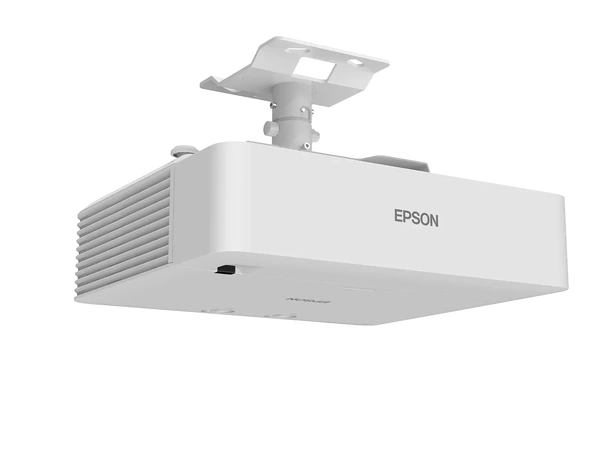

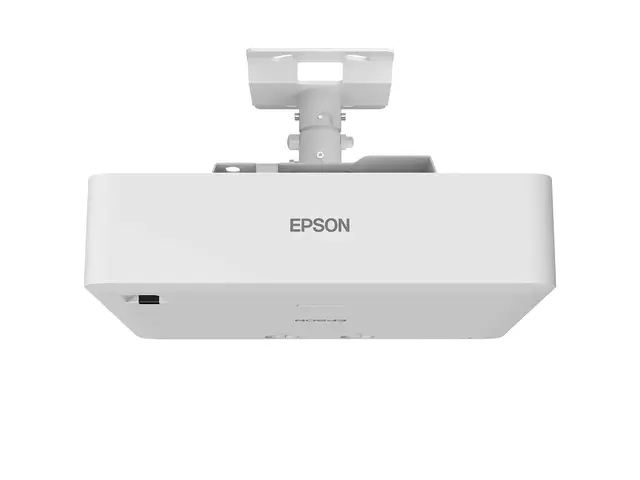

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in black.
Peace of mind and long-lasting durability
Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).
What is in the box?
- Cable cover
- HDMI Cable
- Main unit
- Power cable
- Remote control incl. batteries
- User guide
- Warranty document
Tech Specs
The product features and specifications are subject to change without prior notice
Technology
Projection System
3LCD Technology
LCD Panel
0,67 inch with C2 Fine
Color Light Output
7.000 Lumen- 4.900 Lumen (economy) In accordance with IDMS15.4
White Light Output
7.000 Lumen In accordance with ISO 21118:2020
Resolution
WUXGA
Resolution Enhancement
4K enhancement
Aspect Ratio
16:10
On-Screen Pixel Count
4,608,000 (1920 x1200 x2)
Contrast Ratio
Over 5.000.000 : 1
Light source
Laser
Laser Light source
20.000 hours Durability High, 30.000 hours Durability Eco
Keystone Correction
Manual vertical: ±30 °, Manual horizontal ±30 °
Colour Video Processing
10 Bits
Colour Reproduction
Upto 1.07 billion colours
HDR support
HDR10
Optical
Throw Ratio
1,35 - 2,20:1
Zoom
Manual, Factor:1 - 1,6
Lens
Optical
Lens Shift
Manual - Vertical ±50 %, horizontal ±20 %
Screen Size
50 inches - 500 inches
Projection Lens F Number
1,5 - 1,7
Projection Lens Focal Length
20 mm - 31,8 mm
Projection Lens Focus
Manual
Connectivity

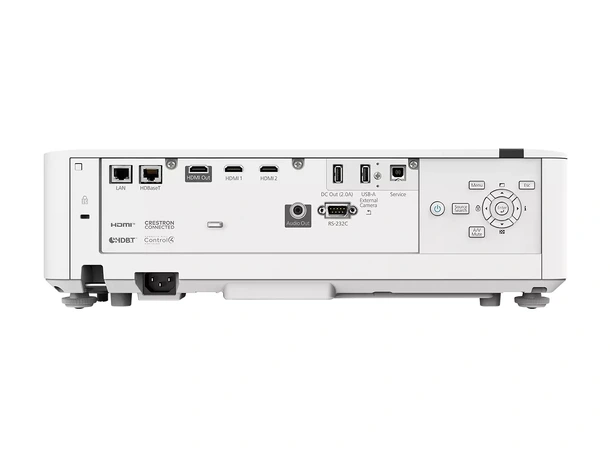

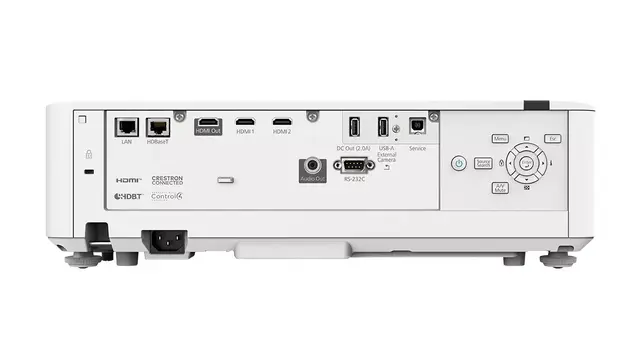

Interfaces
USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)
Epson iProjection App
Ad-Hoc / Infrastructure
Network Protocol
HTTPS, IPv6, SNMP, PJLink
Advanced Features
Security
Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
2D Colour Modes
Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other features
21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App
Video Color Modes
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control
via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
General
Power consumption
300 Watt (Normal On-Mode), 209 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 277 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)
Supply Voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
440 x 304 x 122 mm (Width x Depth x Height)
Product weight
8,5 kg
Noise Level
Normal:38 dB (A) - Economy:27 dB (A)
Supported Temperature
Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
Included Software
Epson Projector Management
Options
Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP20
Loudspeaker
10 Watt
Room Type / Application
Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction
Positioning
Ceiling Mounted, Desktop
Colour
White
TCO Certified
For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf
Other
Warranty
36 months Carry in
