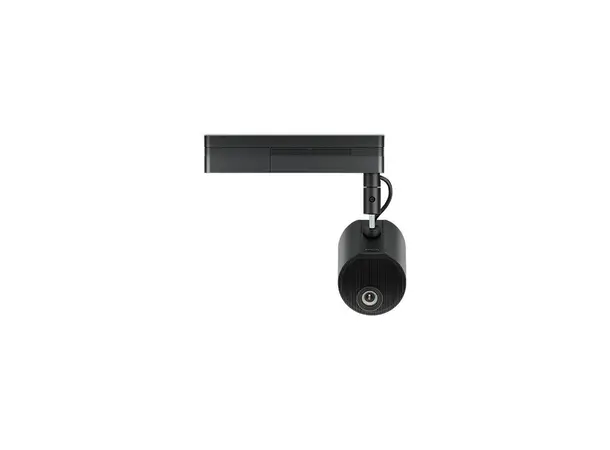

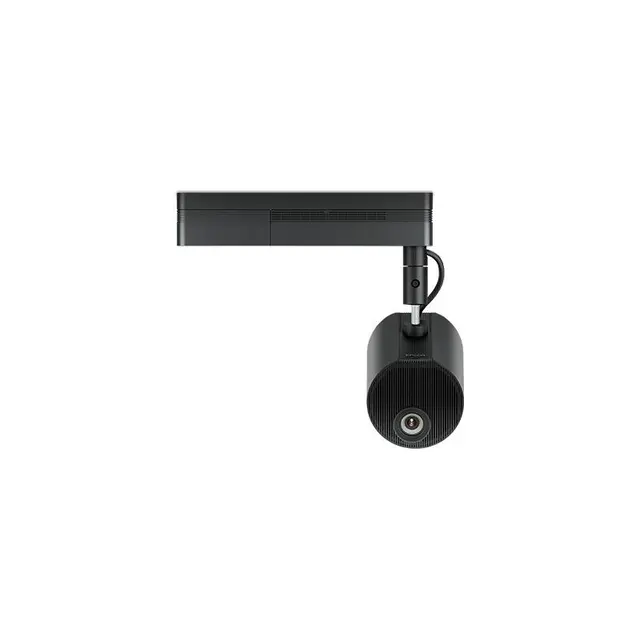

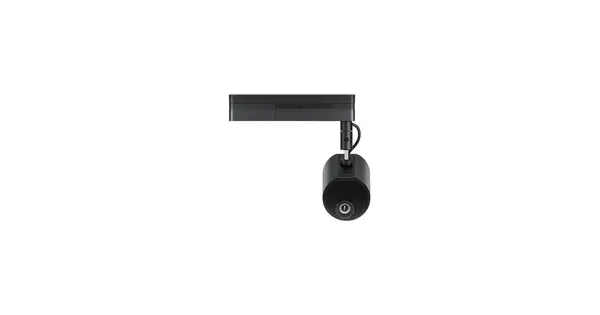

Digital lighting projector

• Experiential projection Create borderless content, lighting effects and blended displays with ease
• Sensor-based content GPI function for simple sensor-based experiences
• Flexible installation Can be ceiling-mounted, freestanding or attached to a lighting track
• Signage-ready Built-in media player and simple CMS integration
• Fit and forget reliability Durable Epson laser technology supported by a five-year warranty

Overview

Add movement and life to retail displays, hospitality events, visitor experiences, galleries, museums, corporate environments or exhibitions, with a low visual noise projector that blends into any environment. The EV-115 brings lighting and projection together, and perfectly combines high design, high image quality and installation flexibility.

Minimalist design - maximum impact

The LightScene EV-115 allows users to unlock their creativity and project instantly appealing visuals, with sharp WXGA resolution and 2,200 lumens brightness. Thanks to its discreet design, it can be used where a traditional projector may stand out. A white version is also available.

Simple, flexible implementation

A lightweight, adaptable design means the EV-115 can be installed in a variety of ways, from a traditional ceiling mount to a freestanding floor mount, or attached to a lighting track, including recessed lighting tracks.

Signage-ready

Featuring a built-in media player with wireless content upload, allowing playlists to be loaded onto an SD card and played directly from the projector1. The EV-115 also features HDMI connectivity for simple integration into content management systems without specialist installation.

Advanced installations made easy

The GPI function supports direct sensor connectivity for creating dynamic experiences that can adapt to situational changes without the need for costly external hardware. The EV-115 also uses advanced techniques such as edge blending to achieve stunning results in larger spaces that require multiple unit installations.

Fit and forget reliability

A five-year warranty, combined with Epson's reliable laser light source technology and sealed optical engine, means that the EV-115 does not require regular maintenance.

Technology

Projection System

3LCD Technology

LCD Panel

0,59 inch with C2 Fine


Color Light Output

2.200 Lumen- 1.100 Lumen (economy) In accordance with IDMS15.4

White Light Output

2.200 Lumen - 1.100 Lumen (economy) In accordance with ISO 21118:2020

Resolution

WXGA 2

Aspect Ratio

16:10

Contrast Ratio

5.000.000 : 1

Native Contrast

2.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±45 °, Manual horizontal ±40 °

Colour Reproduction

16.77 million colours

Optical

Throw Ratio

1,38 - 2,19:1

Zoom

Motorized, Factor:1 - 1,58

Lens

Optical

Screen Size

30 inches - 150 inches

Projection Distance Wide

0,9 m - 4,5 m

Projection Lens F Number

1,51 - 1,92

Projection Lens Focal Length

18,2 mm - 28,4 mm

Projection Lens Focus

Motorized

Connectivity

Interfaces

USB 2.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/g 25GHz, HDMI in, Jack plug out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz)

Network Protocol

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Wireless LAN security, Password protection

Other features

A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote

Video Color Modes

Dynamic, Normal

Projector control

via: Crestron, Crestron Integrated Partner, Crestron RoomView

General

Power consumption

124 Watt (Normal On-Mode), 149 Watt (Normal Peak-mode), 112 Watt (Eco Peak-Mode), 0,4 Watt (Energy saving standby)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product weight

5 kg

Noise Level

Normal:34 dB (A) - Economy:22 dB (A)

Supported Temperature

Operation 5° C - 40° C, Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%

Included Software

Epson Creative Projection, Epson Projector Content Manager

Options

External Speaker, Floor stand, Lighting track mount

Room Type / Application

Projection Mapping, Signage / Retail, Visitor Attraction

Positioning

Ceiling Mounted, Floor, Lighting Track, Wall Mounted

Colour

Black

Other

Warranty

60 months Carry in or 12.000 h
