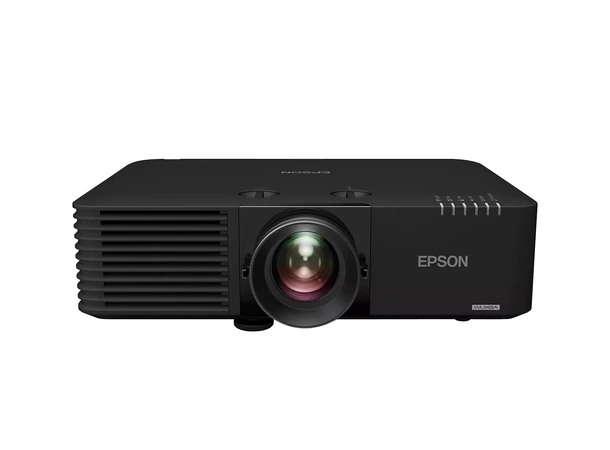

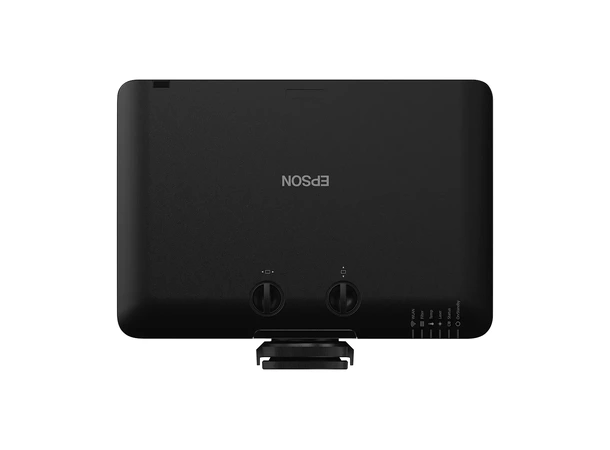

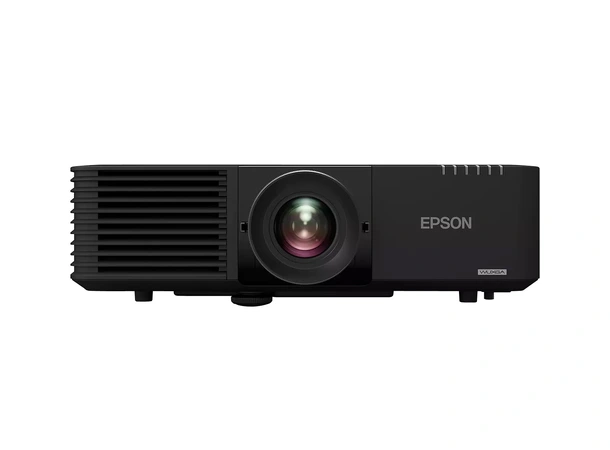

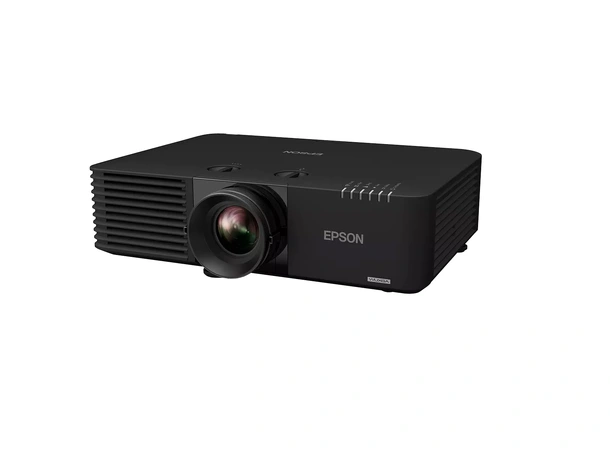

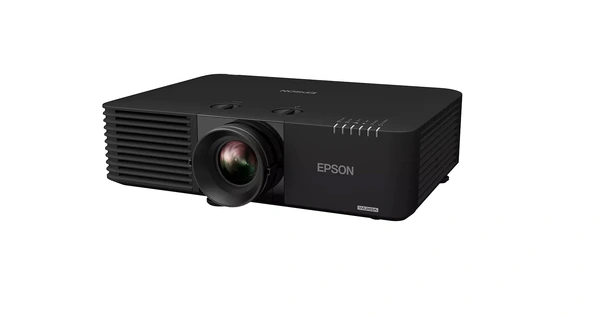

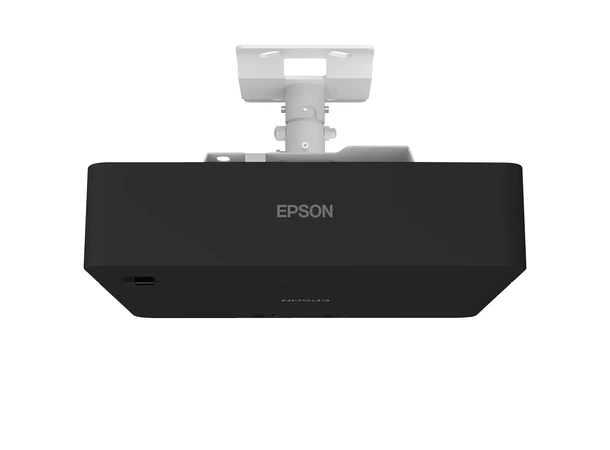

Short-throw laser display solution

• 6,000-lumen brightness Crisp images and bright colours, even in well-lit rooms
• WUXGA resolution Sharp Full HD images for excellent clarity
• Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
• Easy, flexible installation Lightweight and compact design with wide lens shift
• Short-throw projection Large images in tight spaces (0.8:1 throw ratio)

Overview

As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with more compact short-throw display solutions. The EB-L635SU delivers effective, practical and creative applications to meet the display needs in education, corporates, museums and visitor attractions. All achieved without sacrificing image quality or lens shift flexibility.

Experience brighter and bolder displays

The EB-L635SU produces more engaging and impactful displays even in brightly lit environments. It offers impressive 6,000-lumen brightness and WUXGA Full HD resolution at an affordable price. This means you can upgrade to laser performance and reliability, with reduced power consumption. It also features: 0.8:1 throw ratio, 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L635SU is capable of large format and blended displays, without any reduction in clarity or vivid detail.

Install with ease

The EB-L635SU includes many professional features which make installation simple, even when producing more advanced displays. This stylish and compact projector offers 360-degree installation, without compromising the display quality, and supports 16:6 ultra-widescreen, which means you can maximise the visible display space available. Also, with split-screen capability you can display two or four images from different sources simultaneously; and geometric correction and edge blending help create one large, seamless image using multiple displays. Also available in white.

Scale to suit your environment

Unlike a flat-panel display, there's no glare, fingerprints or wasted wall space, and the image can be scaled to fit the required display size. Whether it’s for education, corporate, retail or visitor attractions, the viewing experience can be unrestricted and more engaging for the audience.

Connect and control

The EB-L635SU offers many ways to connect, show multiple sources simulateneously and present wirelessly. The future-proofed connectivity options include: HDMI (input and output) and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, built-in media player, built-in Miracast and support for Epson’s ELPWP10 wireless presentation system. It is also easy to set up and navigate thanks to the intuitive on-screen user guide.

Create customised content for signage

Featuring a built-in media player with network content upload, The EB-L635SU allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App or create and schedule playlists using Epson Projector Content Manager software.

Plug, click and collaborate

Collaboration is made easy with Epson’s wireless presentation system, the ELPWP10. Achieve cost-saving and contemporary wireless connectivity. No cables - just plug-and-play!

Take control of your projected images

Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.

Support social distancing

Where social distancing remains both a requirement and responsible consideration, the EB-635SU's large format display allows the content to be viewed from any position.

Technology

Projection System

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0,67 inch with C2 Fine


Color Light Output

6.000 Lumen- 4.200 Lumen (economy) In accordance with IDMS15.4

White Light Output

6.000 Lumen - 4.200 Lumen (economy) In accordance with ISO 21118:2020

Resolution

WUXGA

Resolution Enhancement

Full HD

Aspect Ratio

16:10

On-Screen Pixel Count

2,304,000

Contrast Ratio

Over 5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±30 °, Manual horizontal ±30 °

Colour Video Processing

10 Bits

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,80 - 1,07:1

Zoom

Digital, Factor:1 - 1,35

Lens

Optical

Lens Shift

Manual - Vertical ±50 %, horizontal ±20 %

Screen Size

50 inches - 200 inches

Projection Distance Wide

0,9 m - 3,5 m

Projection Lens F Number

1,7

Projection Lens Focal Length

11,76 mm

Projection Lens Focus

Manual

Connectivity

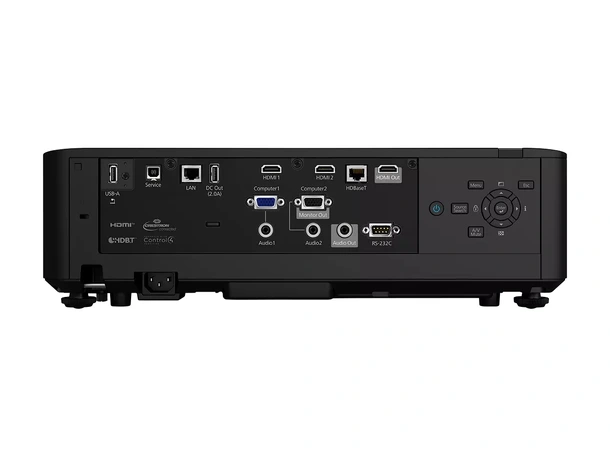

Interfaces

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback

Epson iProjection App

Ad-Hoc / Infrastructure

Network Protocol

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

2D Colour Modes

Dynamic, Cinema, Presentation, sRGB, DICOM SIM

Other features

21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App

Video Color Modes

Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

287 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 345 Watt (Normal Peak-mode), 258 Watt (Eco Peak-Mode), 0,3 Watt (Energy saving standby)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

440‎ x 334 x 136 mm (Width x Depth x Height)

Product weight

8,4 kg

Noise Level

Normal:38 dB (A) - Economy:27 dB (A)

Supported Temperature

Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%

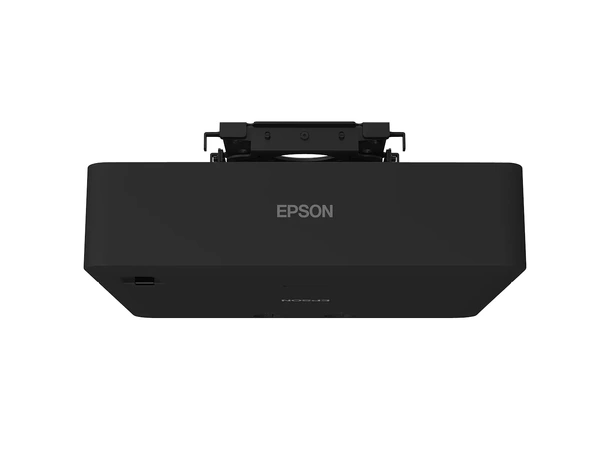

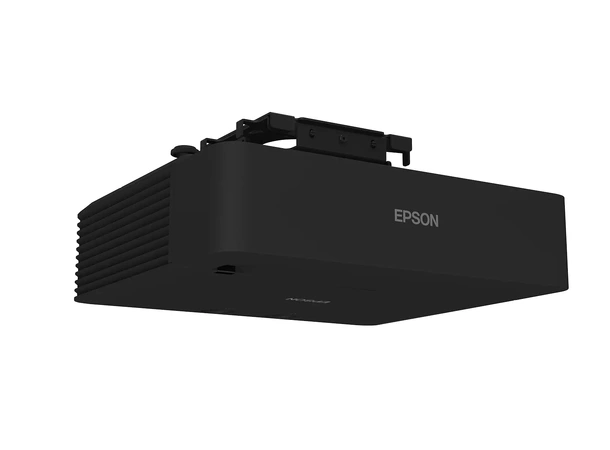

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Options

Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit

Loudspeaker

10 Watt

Room Type / Application

Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction

Positioning

Ceiling Mounted, Desktop

Colour

Black

Other

Warranty

36 months Carry in
