Digital signage solution

• Ultra-short-throw signage projector Compact, unobtrusive design.
• Up to 130-inch display Full HD resolution, 5,000 lumen brightness and 3LCD technology
• Fit and forget reliability Low maintenance laser projector with a 5 year warranty
• Easy installation 360 degree rotation with portrait projection support
• Flexible playback Play content directly from a USB stick

Overview

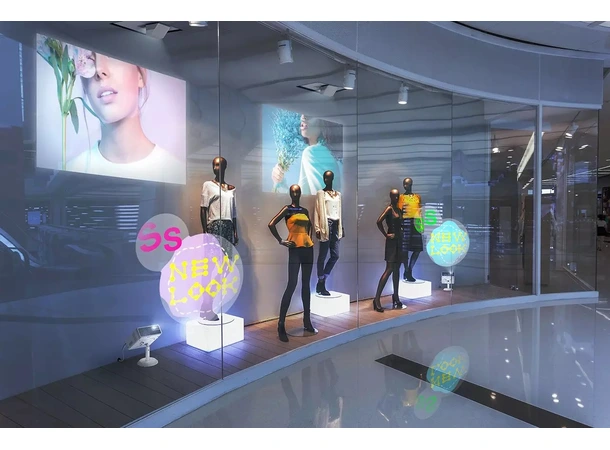

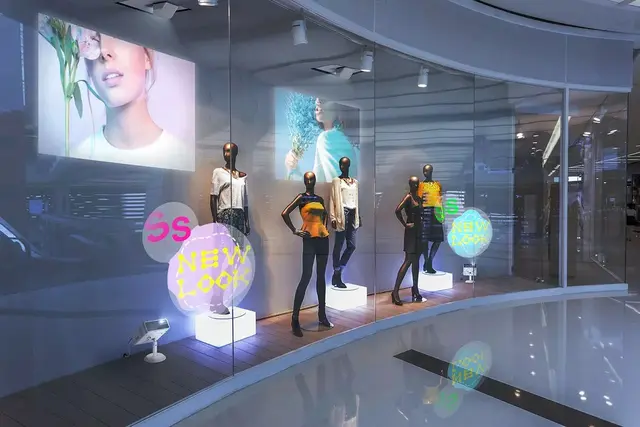

This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-800F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective

Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images

The EB-800F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install

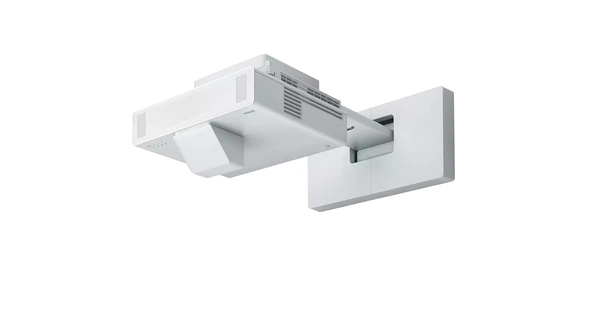

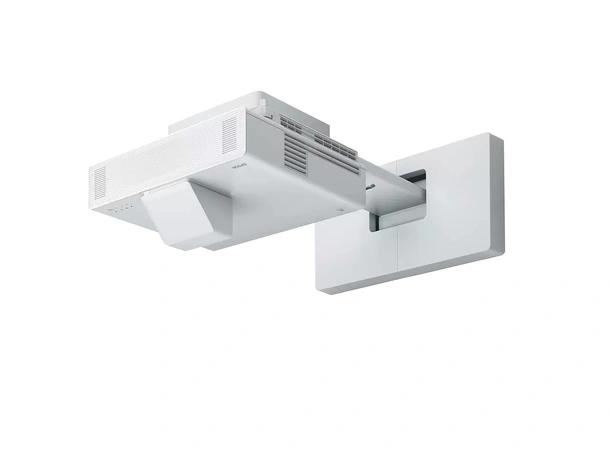

This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A black version is also available.

Flexible playback options

Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.

Technology

Projection System

3LCD Technology

LCD Panel

0,62 inch with C2 Fine


Color Light Output

5.000 Lumen- 3.500 Lumen (economy) In accordance with IDMS15.4

White Light Output

5.000 Lumen - 3.500 Lumen (economy) In accordance with ISO 21118:2020

Resolution

1080p

Aspect Ratio

16:9

Contrast Ratio

Over 5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±3 °, Manual horizontal ±3 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

192 Hz - 240 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,27 - 0,37:1

Zoom

Digital, Factor:1 - 1,35

Lens

Optical

Screen Size

65 inches - 130 inches

Projection Distance Wide

0,4 m ( 65 inch screen ),

Projection Distance Tele

0,8 m ( 130 inch screen ),

Projection Lens F Number

1,5

Projection Lens Focal Length

3,9 mm

Projection Lens Focus

Manual

Offset

9 : 1

Connectivity

USB Display Function

2 in 1: Image/ Sound

Interfaces

USB 2.0-A (2x), USB 2.0, Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional), VGA in (2x), VGA out, HDMI in (3x), HDMI out, Composite in, HDBaseT, Miracast (optional), Jack plug out, Jack plug in (3x)

Epson iProjection App

Ad-Hoc / Infrastructure

Network Protocol

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Kensington lock, Password lock, Padlock, Security cable hole, Password protection

Other features

A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network administration, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, iProjection App

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

293 Watt (Normal On-Mode), 194 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 262 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)

Heat Dissipation

1.244 BTU/hour (max)

Supply Voltage

AC 220 V - 240 V, 50 Hz - 60 Hz

Product dimensions

458‎ x 375 x 210 mm (Width x Depth x Height)

Product weight

9,4 kg

Noise Level

Normal:36 dB (A) - Economy:27 dB (A)

Supported Temperature

Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software

Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Options

Wireless LAN unit

Loudspeaker

8 Watt, Stereo: Stereo

Room Type / Application

Signage / Retail, Visitor Attraction

Positioning

Ceiling Mounted, Desktop, Wall Mounted

Colour

White

Other

Warranty

60 months Carry in or 12.000 h
