Digital signage solution

• Versatile signage projector Compact, unobtrusive, ultra-short-throw design for tight spaces
• Create engaging displays Up to 150" Full HD displays, 4,100 lumens and 3LCD technology
• Fit and forget reliability Low maintenance laser projector with a 5 year warranty
• Flexible playback Play content directly from a USB stick
• Easy installation 360 degree rotation with portrait projection support

Overview

The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.

It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.

Create enaging displays

Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.

Bring any surface to life, discretely

The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.

Robust, reliable and cost effective

Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.

Flexible playback options

Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.

Technology

Projection System

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0,61 inch with C2 Fine


Color Light Output

4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4

White Light Output

4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020

Resolution

1080p

Resolution Enhancement

Full HD

Aspect Ratio

16:9

Contrast Ratio

Over 5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±3 °, Manual horizontal ±3 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

192 Hz - 240 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,25 - 0,35:1

Zoom

Digital, Factor:1 - 1,35

Lens

Optical

Screen Size

60 inches - 150 inches

Projection Distance Wide

0,4 m ( 65 inch screen ),

Projection Distance Tele

0,7 m ( 120 inch screen ),

Projection Lens F Number

1,6

Projection Lens Focal Length

3,7 mm

Projection Lens Focus

Manual

Offset

5 : 1

Connectivity

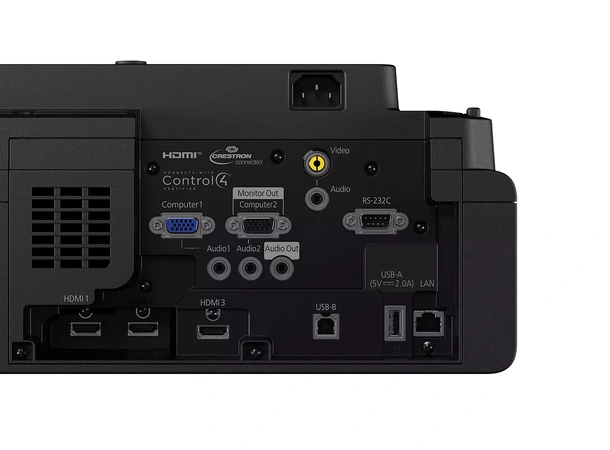

Interfaces

USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct

Epson iProjection App

Ad-Hoc / Infrastructure

Network Protocol

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Other features

21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

200 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)

Heat Dissipation

895 BTU/hour (max)

Supply Voltage

AC 220 V - 240 V, 50 Hz - 60 Hz

Product dimensions

356‎ x 395 x 133 mm (Width x Depth x Height)

Product weight

5,9 kg

Noise Level

Normal:37 dB (A) - Economy:27 dB (A)

Supported Temperature

Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software

Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Options

Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Loudspeaker

16 Watt

Room Type / Application

Signage / Retail, Visitor Attraction

Positioning

Ceiling Mounted, Desktop, Wall Mounted

Colour

Black

TCO Certified

For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

Warranty

60 months Carry in or 12.000 h
