Ultra-mobile business projector

• Exceptional image quality Equally high white and colour light output of 3,000 lumens
• Horizontal and Vertical Keystone correction Slides and images can be aligned and distortion corrected
• Lightweight & ultra-slim form factor Fits in the same bag as a laptop computer
• Free iProjection app Present wirelessly from a smartphone or tablet
• Split screen capability Display images from two different sources simultaneously

Overview

Staff that are constantly on the move and frequently make presentations at customer sites can benefit from this ultra-mobile projector, offering a winning combination of ultra-slim lightweight design, exceptional image quality and advanced functionality. With traditional wired and built-in wireless connectivity, time-saving set-up plus a range of advanced features, it's ideal for polished presentations.

Exceptional image quality

Enjoy superb image quality, impressive natural colours with an equally high white and colour light output of 3,000 lumens thanks to Epson's 3LCD technology. True Colours technology delivers a faithful reproduction of colours as they are meant to be and, with a 10,000:1 contrast ratio, projected images are crisp and clear.

Easy set-up

Automatic vertical and horizontal keystone correction makes it easy to set up the projector almost anywhere. The short throw ratio projects a large image from a shorter distance so that all meeting participants can be seated behind the projector as the front exhaust directs heat away from them. Thanks to its Auto Power On feature, the projector turns on when it detects signal input.

Smarter presentations

Users can view two data sources side by side with split screen, and MHL can show high-quality video and audio content from mobile devices while charging them at the same time.

True portability

The ultra-slim form factor and lightweight design makes this the ideal projector for anyone on the move. A carry case is included and the projector fits easily into a standard laptop bag.

Technology

Projection System

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0,59 inch with C2 Fine


Color Light Output

3.000 Lumen- 1.900 Lumen (economy) In accordance with IDMS15.4

White Light Output

3.000 Lumen - 1.900 Lumen (economy) In accordance with ISO 21118:2020

Resolution

WXGA 2

Resolution Enhancement

HD ready

Aspect Ratio

16:10

On-Screen Pixel Count

1,024,000

Contrast Ratio

10.000 : 1

Light source

Lamp

Lamp

206 W, 4.000 h durability, 7.000 h durability (economy mode)

Keystone Correction

Auto vertical: ±30 °, Manual horizontal ±30 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

100 Hz - 120 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

1,04 - 1,26:1

Zoom

Manual, Factor:1 - 1,2

Screen Size

30 inches - 300 inches

Projection Distance Wide

0,7 m - 6,8 m

Projection Distance Tele

0,8 m - 8,2 m

Projection Distance Wide/Tele

1,35 m - 1,62 m ( 60 inch screen ),

Projection Lens F Number

1,58 - 1,7

Projection Lens Focal Length

13,52 mm - 16,22 mm

Projection Lens Focus

Manual

Offset

10 : 1

Connectivity

USB Display Function

3 in 1: Image / Mouse / Sound

Interfaces

USB 2.0-A, USB 2.0, VGA in, HDMI in, Composite in, Jack plug in, MHL, Wireless LAN IEEE 802.11b/g/n, Wireless LAN b/g/g 25GHz

Epson iProjection App

Ad-Hoc / Infrastructure

Advanced Features

Security

Kensington lock, Wireless LAN security, Password protection

Other features

AV Mute Slide, Built-in speaker, Document Camera Compatible, Home Screen, Instant on/off, JPEG Viewer, Long lamp life, MHL audio/video interface, PC Free, Projection App for Chromebook, Quick Corner, Split-Screen-Function, Wireless LAN capable, iProjection App

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM

General

Power consumption

252 Watt (Normal On-Mode), 178 Watt (Eco On-Mode), 277 Watt (Normal Peak-mode), 200 Watt (Eco Peak-Mode), 0,34 Watt (Energy saving standby)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

292‎ x 213 x 44 mm (Width x Depth x Height)

Product weight

1,8 kg

Noise Level

Normal:39 dB (A) - Economy:30 dB (A)

Supported Temperature

Operation 5° C - 40° C, Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%

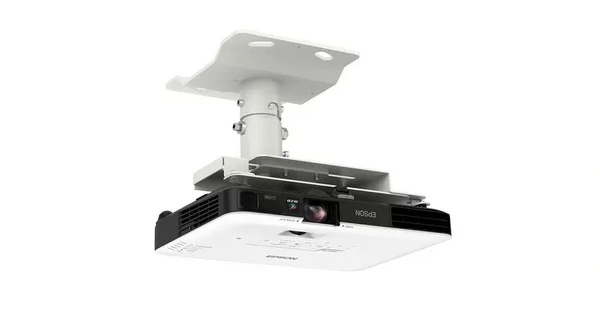

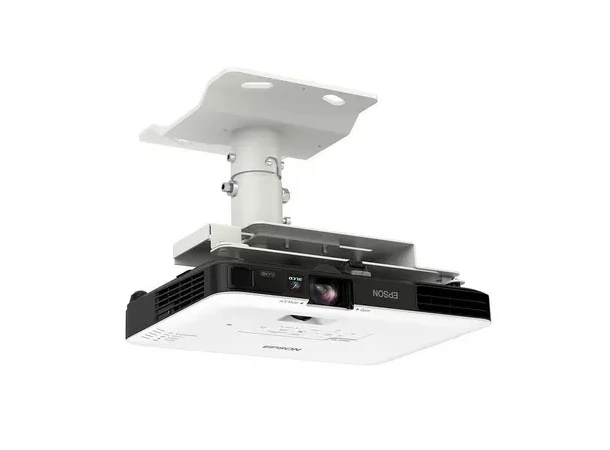

If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software

EasyMP Multi PC Projection

Options

Air filter, Ceiling mount, Document camera, Setting plate, Spare lamp, WP System - ELPWP20, Wireless transmitter - ELPWT01

Loudspeaker

1 Watt

Room Type / Application

Boardroom, Huddle space / Portable, Large Meeting Room / Auditorium

Positioning

Ceiling Mounted, Desktop

Colour

White / Black

Other

Warranty

60 months Carry in, Lamp: 60 months or 1.000 h (whichever comes first)
