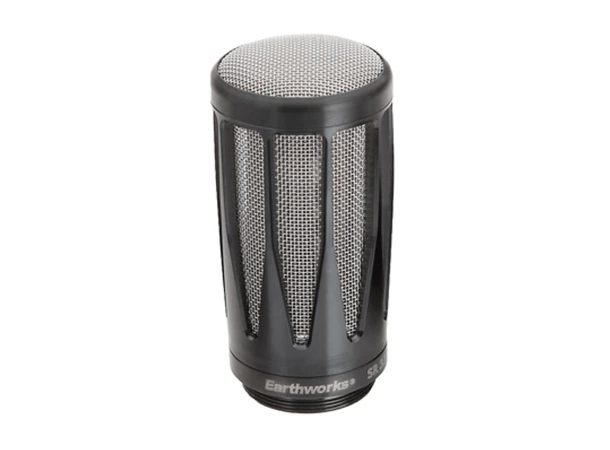

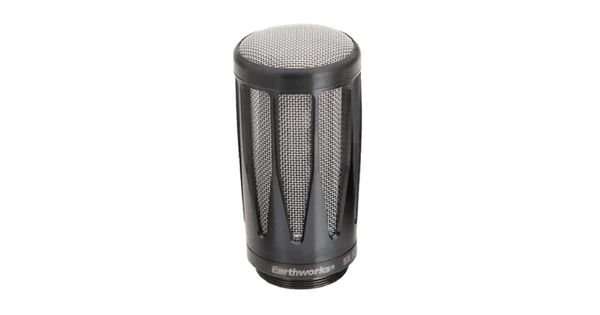

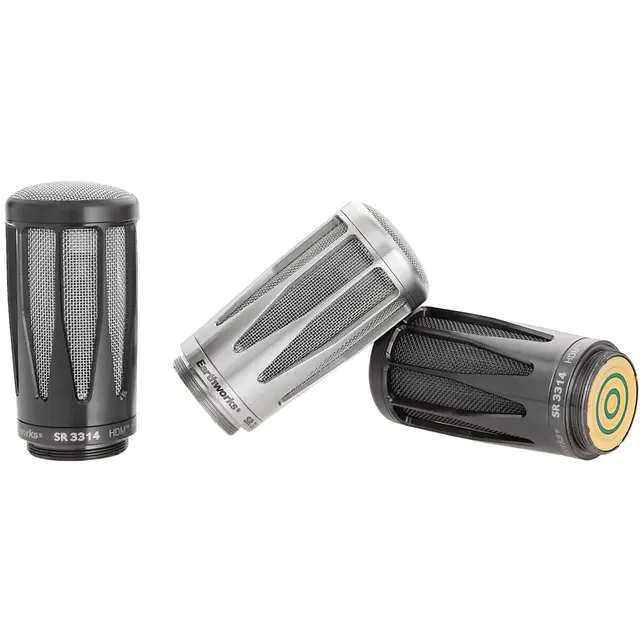

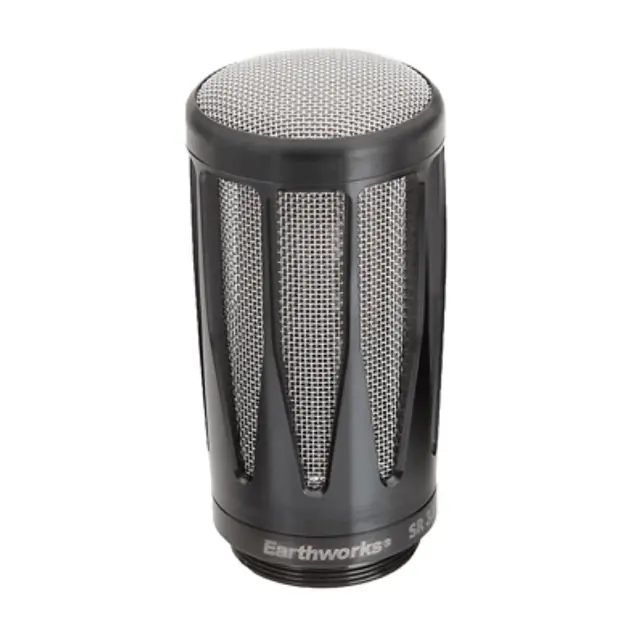

SR3314
Commanding presence. Crystal clear vocals.
The Fastest
Microphone Capsule.
Speed matters. Bring the most responsive wireless capsule to your favorite wireless platform. Formatted for use with any 3-ring wireless microphone base, the Earthworks SR3314 captures natural, open, rich-sounding vocals with minimal proximity effect.
STUDIO CONTROL ON PAGE
Mitigate bleed and feedback with unparalleled off-axis sound rejection.
WIRELESS FLEXIBILITY
Whether performing for an intimate live streaming session or for a local gig, work the stage while sounding like you’re singing through a wired handheld.
FASTER SOUNDCHECKS
Clean impulse response combined with a textbook cardioid pattern equals better monitor mixes.
Specifications
| FREQUENCY RESPONSE |
20Hz – 30kHz |
| POLAR PATTERN |
Cardioid |
| SENSITIVITY |
6.5 mV/Pa (-43.7 dBV/Pa) |
| POWER REQUIREMENTS |
3V to 6V; 2.1 mA @ 5V |
| DISTORTION |
Less than 3% THD |
| PEAK ACOUSTIC INPUT |
133dB SPL @ 6V |
| OUTPUT |
Center & outer ring on 3-ring concentric connector |
| OUTPUT IMPEDANCE |
0.1 ohms |
| THREADS |
1.25”/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters |
| SELF NOISE |
22dBA @ capsule output (A weighted) |
| DIMENSIONS |
3.3” (84mm) long
1.6” (40.6mm) max dia.
1.46” (37mm) min dia |
| WEIGHT |
0.4 lbs. (0.18kg) |
COMPATIBLE WIRELESS SYSTEMS
SHURE®
ULX-D
QLX-D
SLX-D
*Axient
*with Shure Axient AD2 and ADX2 handheld transmitters, the SR3314 may take a little over 3 seconds to warm up, starting from the moment the transmitter is switched on. We recommend keeping the channel muted during this short warmup period to prevent distortion and/or noise being heard.
AUDIO-TECHNICA®
3000 Series
5000 Series
6000 Series
LECTROSONICS®
HH
HHa
LINE 6®
V75
V55
