TC20
Exceptional definition. Precise sound.
Vivid Sound, No
Matter the Volume.

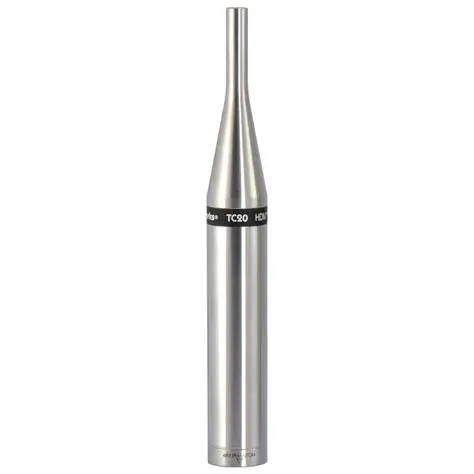

The TC20 is an omnidirectional microphone designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects.
Headroom Perfected
With a whopping SPL rating of 150dB the TC20 has plenty of headroom. And with no proximity effect, you can get it as close as you want to the sound source.
Remarkable Response
With a 9Hz – 20kHz ruler-flat frequency response, and an ultra-fast transient response, the result is a more accurate representation of the original sound.
Control With No Compromise
Its near-perfect omnidirectional polar pattern is uniform across all specified frequencies, letting the microphone capture rich and consistent detail at any position around the capsule.
Specifications
| FREQUENCY RESPONSE |
9Hz to 20kHz ±1/-3dB |
| POLAR PATTERN |
Omnidirectional |
| SENSITIVITY |
8mV/Pa (-42dBV/Pa) |
| POWER REQUIREMENTS |
24-48V Phantom, 10mA |
| MAX ACOUSTIC INPUT |
150dB SPL |
| OUTPUT |
XLR (pin 2+) |
| OUTPUT IMPEDANCE |
65Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD |
600Ω between pins 2 & 3 |
| NOISE |
26dB SPL equivalent (A weighted) |
| DIMENSIONS (L x D) |
165mm x 22mm (6.5 x .860 inches) |
| WEIGHT |
.35 lb. (160g) |
