SR30
Also available in hypercardioid.
The Ultimate in Definition.

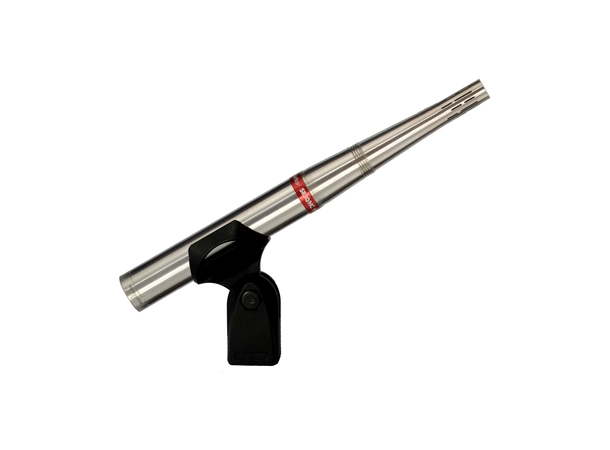

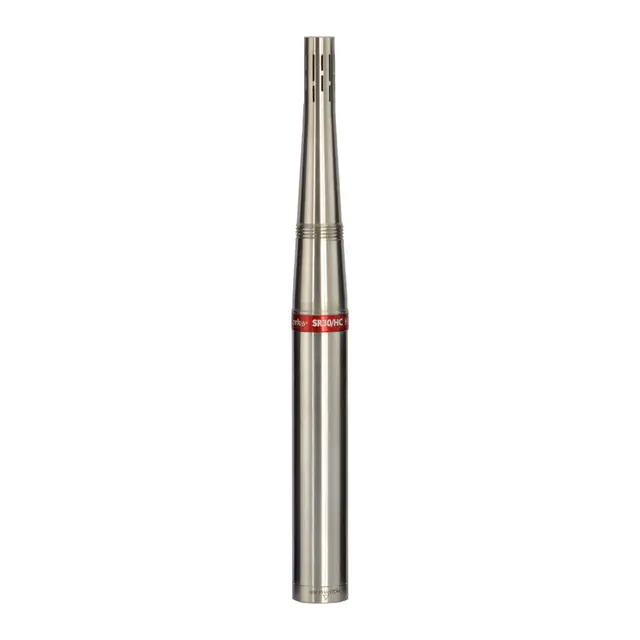

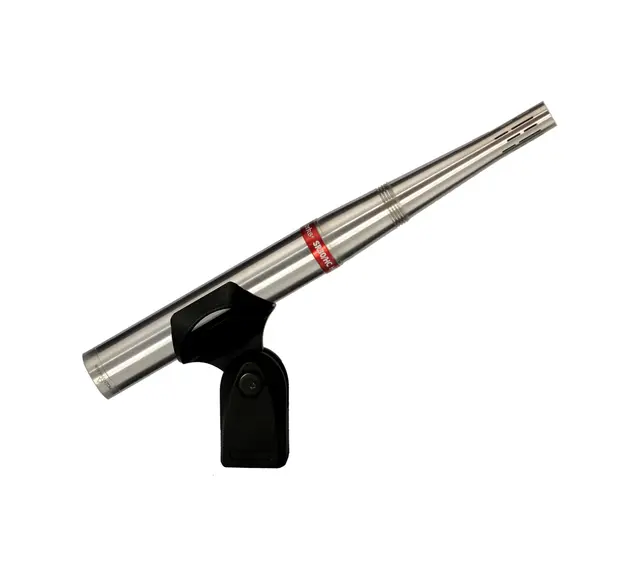

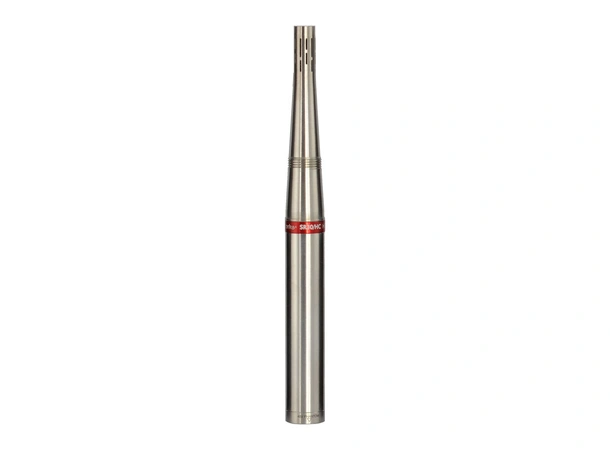

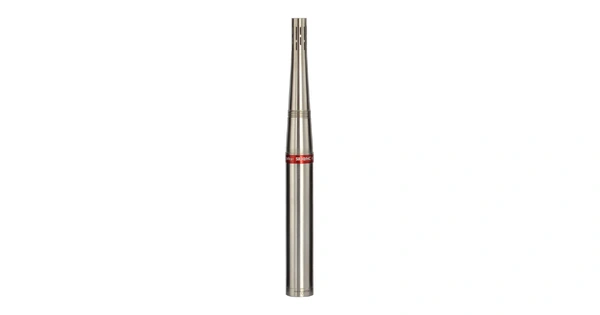

The Earthworks SR30 is a multi-purpose cardioid condenser microphone designed for instrument miking in live performance and studio recording environments.
The Detail You Deserve
With a lighting fast transient response, the SR30 handles sharp attacks with ease, while still capturing all of the subtle nuances.
Nothing Short of Superior
Its near-perfect cardioid polar pattern is consistent across all frequencies, with over 30dB of off-axis rejection.
Specifications
| FREQUENCY RESPONSE |
20Hz to 30kHz |
| POLAR PATTERN |
Cardioid |
| SENSITIVITY |
20mV/Pa (-34dBV/Pa) |
| POWER REQUIREMENTS |
24-48V Phantom, 10mA |
| MAX ACOUSTIC INPUT |
139dB SPL |
| OUTPUT |
XLR (pin 2+) |
| OUTPUT IMPEDANCE |
65Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD |
600Ω between pins 2 & 3 |
| NOISE |
16dB SPL equivalent (A weighted) |
| DIMENSIONS (L x D) |
229mm x 22mm (9.0 x .860 inches) |
| WEIGHT |
.5 lb. (225g) |
