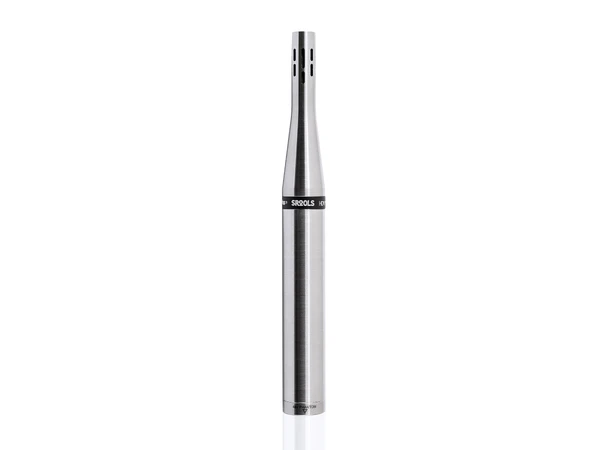

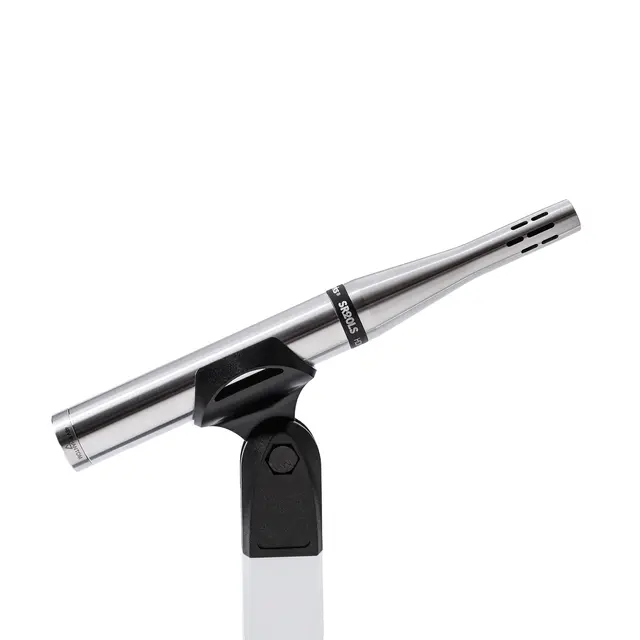

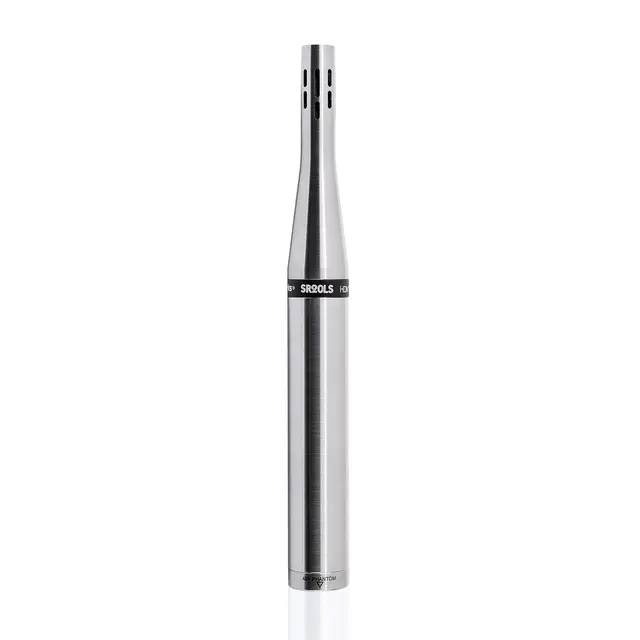

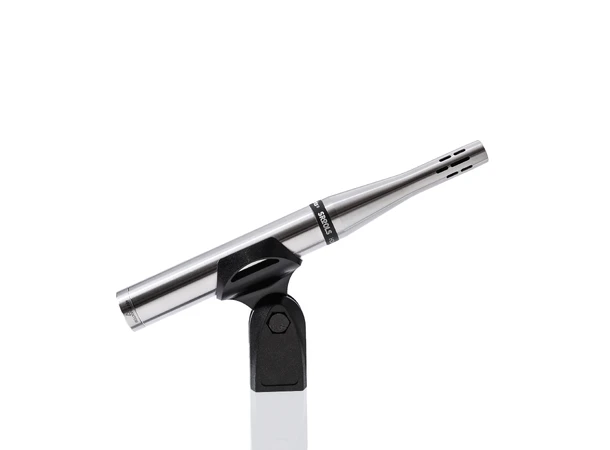

SR20LS
Natural highs. Deep lows. Sound you can feel.
Punch through the mix.
Don’t be fooled by its small size. The SR20LS won’t miss a beat on your bass drum. With handling capabilities of 150dB SPL and a cardioid condenser capsule that captures the full spectrum of sound all the way down to 20Hz, the Earthworks SR20LS beautifully captures all of the deep, rich lows you’re after.
Never Boomy
A subtle proximity effect makes it easy to place the mic to capture your bass drum, without getting that boomy sound.
Ready For Anything
If it can handle a jet engine, it can handle your bass drum. With an SPL rating of 150dB, you never need to worry about overloading the SR20LS.
Specifications
| FREQUENCY RESPONSE |
20Hz – 20kHz |
| POLAR PATTERN |
Cardioid |
| SENSITIVITY |
3mV/Pa (-50dBV/Pa) |
| POWER REQUIREMENTS |
24-48V Phantom, 10mA |
| PEAK ACOUSTIC INPUT |
150dB SPL |
| OUTPUT |
XLR (pin 2+) |
| OUTPUT IMPEDANCE |
200Ω balanced (between pins 2 & 3) |
| MIN OUTPUT LOAD |
1000Ω between pins 2 & 3 |
| SELF NOISE |
20dB SPL equivalent (A weighted) |
| DIMENSIONS L x D |
192mm x 22mm (7.57 x .860 inches) |
| WEIGHT |
.36 lb (164g) |
