The Ultimate in
Audio Measurement.

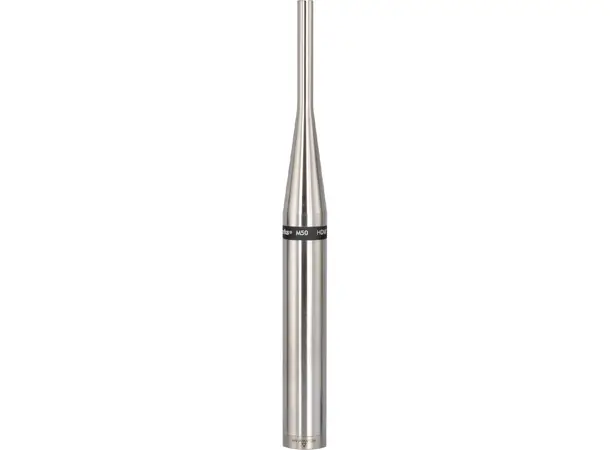

The M50 is a precision engineered 50kHz omnidirectional measurement microphone ideally suited for acoustical measurements including high-end loudspeaker design and quality control, scientific research, measurements of ultrasonic or subsonic transducers, or any application where an extremely accurate free-field measurement microphone is required.

The Pinnacle of Transparency

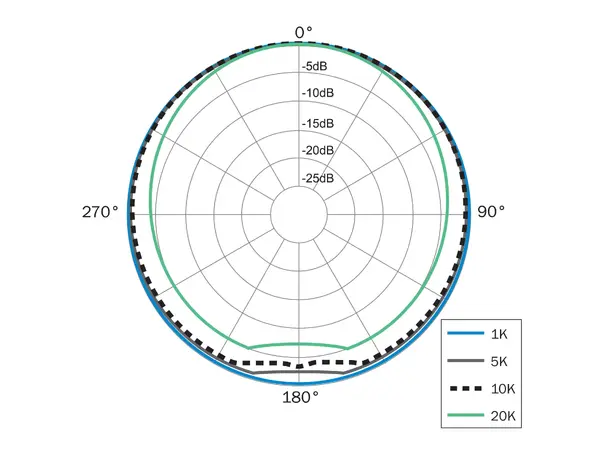

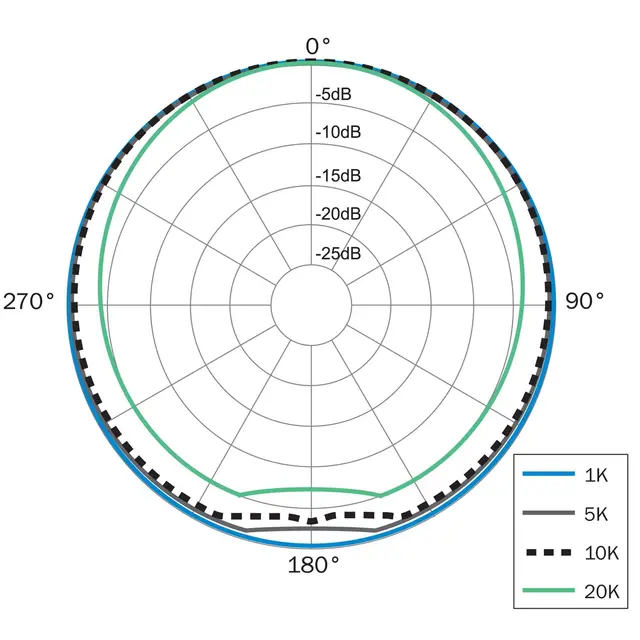

An ultra wide flat frequency response that extends from 3Hz to 50kHz and is flat throughout the entire spectrum. An omnidirectional polar response that is exceptionally consistent. A 140dB SPL rating without distortion and no handling noise.

Professional products
designed with professionals in mind

With temperature-compensated electronics, the M50 was built to deliver repeatable results no matter what the environment.

Compatible With Your Favorite Measurement Software

Lightning fast impulse response and linear phase response make the M50 ideal for use with high-quality FFT-based real-time audio system measurement software like SMAART™, SIM™, REW™, Electroacoustics Toolbox™, FuzzMeasure™ and others, as well as for use in PA system alignment and loudspeaker design.

Electronic Calibration File

Every M50 is individually hand-tuned and tested and is delivered with its own printed frequency response chart. An Electronic Calibration File (ECF) is generated for each microphone during final testing, and can be downloaded free of charge after product registration.

Professional products
designed with professionals in mind

In audio, our perception of what feels real and natural is incredibly sensitive to resolution in the time domain. In particular, the level of detail present in the initial transient is responsible for much of our sense of content, meaning, and frequency balance. This includes defining attributes like “timbre”, “texture”, and “air”. Earthworks’ blazingly fast technology ensures that every performance sounds like life.

Specifications
