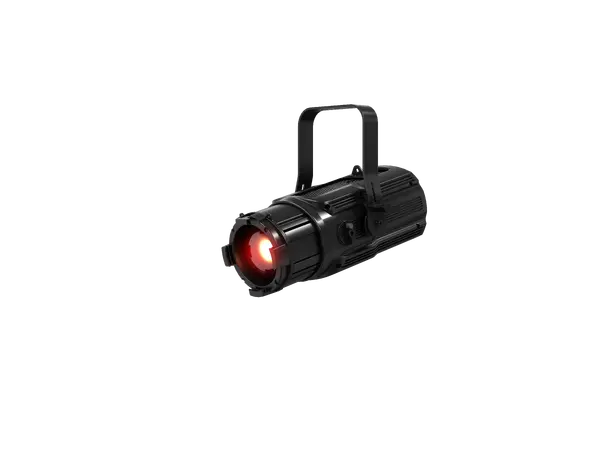

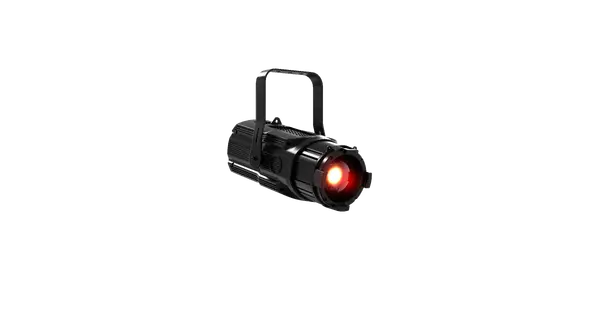

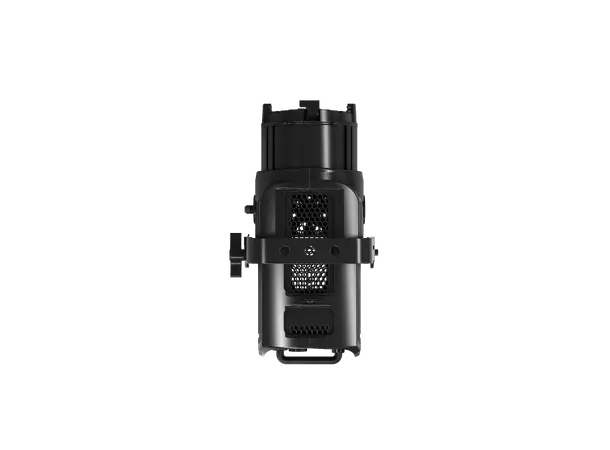

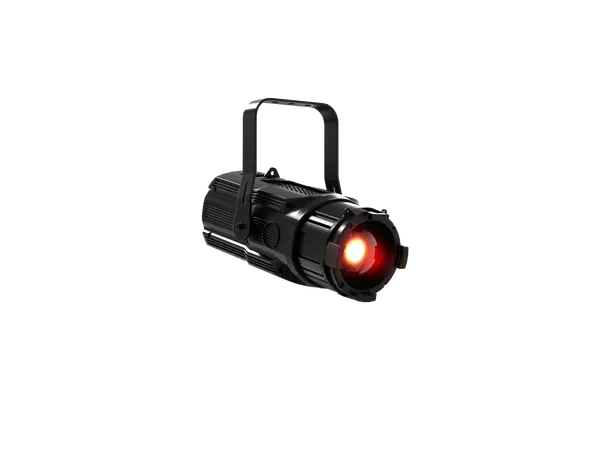

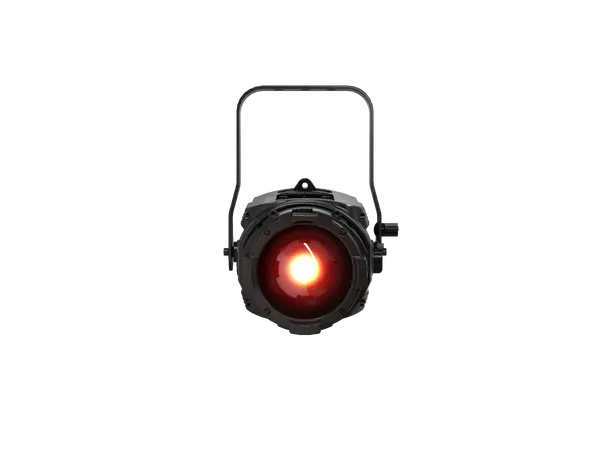

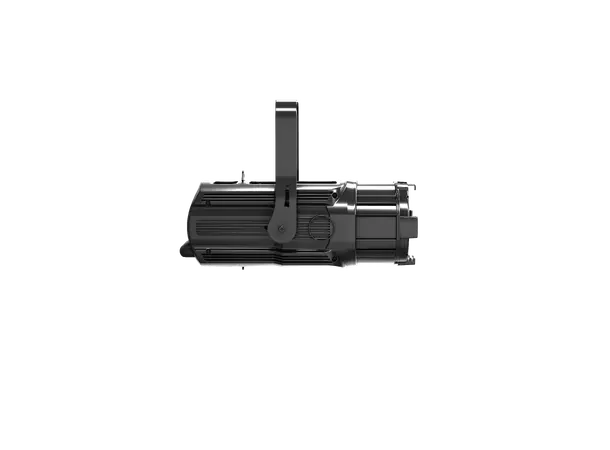

DTS TENORE 1 HQS PC

The new high-power conventional projector with Fresnel or PC lens, multi-chip source, and Italian design. High performance and low noise.

Technical Specifications

Output

• Multi chip LED Source
• Lumens output: 3800 (Fresnel Lens)
• Lumens output: 3860 (PC Lens)
• CRI: up to 98
• TLCI: up to 96
• LED Lifespan: 50000 hours (L70B10)

Optical Group

• Ø120 mm Fresnel lens - 10°-68° linear Zoom
• Ø120 mm PC lens - 8°-68° linear Zoom

Color & White Generation

• 6-color LED engine
• Linear CCT (1800 K - 10000 K)
• Linear ‘Green saturation’
• 100 gel filters emulation:
  • Linear crossfade from gel filters emulation to CCT whites
  • Linear crossfade between emulated gel filters
  • True color of gel filters emulation at any CCT values
• “Raw” RGBACL color-mixing in Advanced mode

Dimmer

• ‘Hi-Q Dimming’ technology – guarantees perfect linearity in brightness control, even at low dimming levels
• Tungsten emulation - CCT variation emulates behavior of Halo-lamps

Control

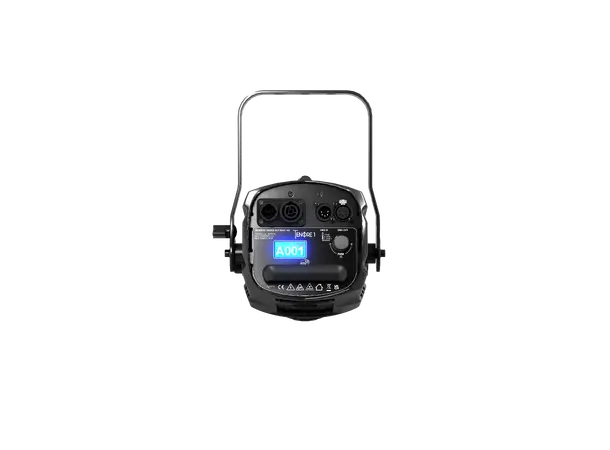

• LCD graphic display + Jog Shuttle
• RDM/DMX 512 protocols
• Fan modes:
  • Standard: 23dBA @ 1m (100% power)
  • Silent: 22dBA @ 1m (100% power)
  • Ultra Silent: 21dBA @ 1m (90% power)
  • Automatic: fans adapt to operational status
• Firmware updatable via DTS firmware uploader dongle

DMX

• 5 DMX modes:
  • CCT (Default) - Correlated Color Temperature
  • Advanced - CCT + Raw control for RGBACL color channels
  • Basic - CCT with priority on Gel Library and RGBACL color
  • Expo - Dimmer 8 bit; CCT priority on Gel Library
  • CMY Emulation - Cyan, Magenta, Yellow, and CTO emulation mode

Power Supply

• Wide range 100/240 Vac 50-60 Hz
• Power consumption: 135 W max / 230Vac
• Power Factor: PF >0.94

Connections

• DMX: XLR 5 pole In/Out panel connectors
• Power supply: PowerCON TRUE1 In/Out panel connectors

Circuits Protections

• Overvoltage and overtemperature circuits protection

Temperature

• Operating: -10° +45°
• Storage: -20° +60°

Physical

• Weight:
  • FR - 5.3 Kg (11.7 lbs)
  • PC - 5.6 Kg (12.3 lbs)
• Finishing: Black - White
• IP rating: IP20

Test and Certification

• CE
