high definition white
Ø 175 mm Fresnel lens
superior white light quality
CRI up to 98
linear CCT
noise management
Green – Magenta linear balance,
for a natural reproduction of any skin tone
Technical data

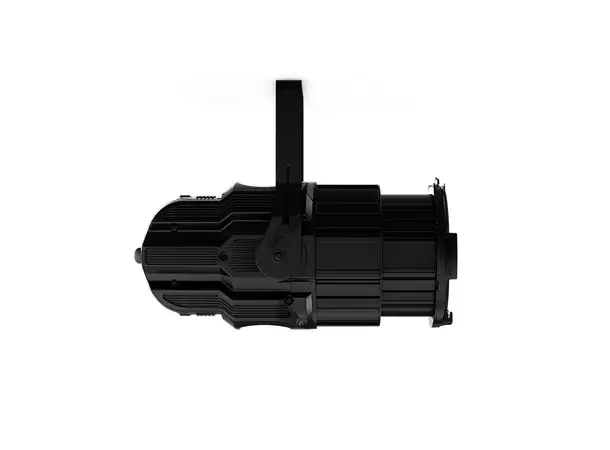

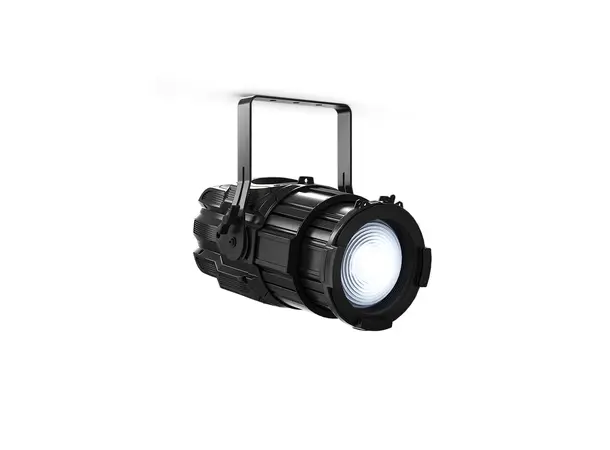

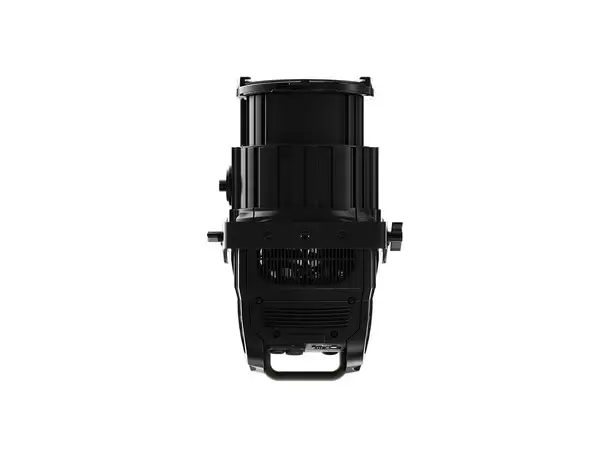

TENORE 5 HDW is the un-conventional evolution to the conventional series of static LED lights. Thanks its high power multi-chip source and the linear CCT management, this conventional projector offers superior white light quality and an optimal color rendering up to 98.
To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 26dBA.
Output
• Multi chip LED Source
• Lumens output: 9,300 lm (Fresnel lens)
• Lumens output: 6,300 lm (PC lens)
• CRI: up to 98
• TLCI: up to 96
• LED Lifespan: 50,000 hours (L70B10)
Optical group

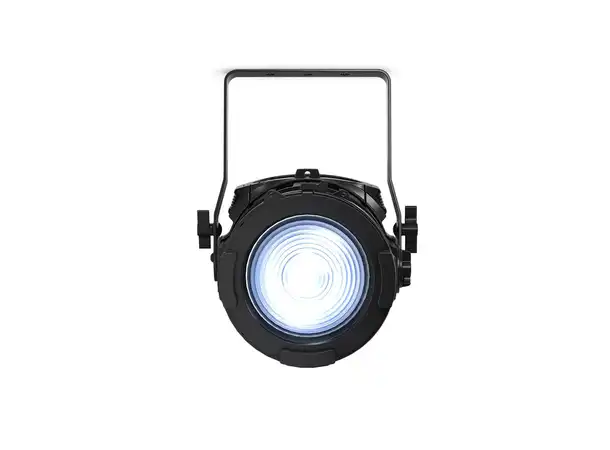

• Ø 175 mm Fresnel (FR) lens
• Ø 150 mm Antihalo (PC) lens
• Linear zoom
- 12° - 62° with Frensel lens
- 6.5° - 45° with PC lens
White generation
• 6-color LED engine
• Linear CCT (1800 K - 10000 K)
• Linear ‘Green saturation’
Dimmer
• ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
• Tungsten emulation - CCT variation emulates behavior of Halo-lamps
Control

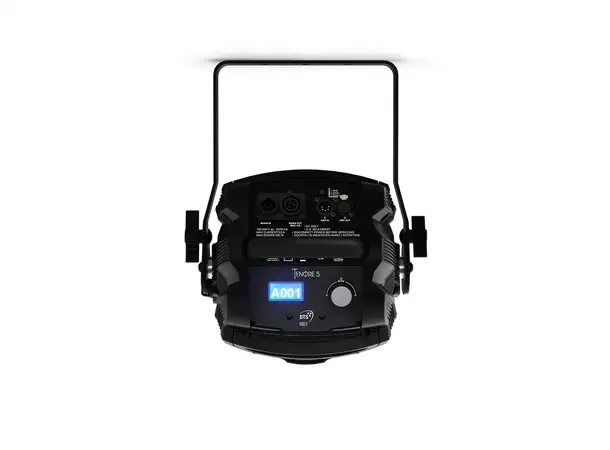

• LCD graphic display + Jog Shuttle
• RDM/DMX 512 protocols
• ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes
• Noise level
- Standard: 34dBA @ 1m (normal operation, 100% power)
- Silent: 29dBA @ 1m (normal operation, 72% power)
- Ultra Silent: 26dBA @ 1m (normal operation, 57% power)
- Automatic: fans adapt to operational status (output power priority)
• Firmware updatable via DTS firmware uploader dongle
DMX
• 2 DMX modes:
- CCT (Default) - Dimmer 16 bit with Correlated Color Temperature; Green saturation control
- Basic - Dimmer 8 bit with Correlated Color Temperature control
Power supply
• Wide range100/240 Vac 50-60 Hz
• Power consumption: 390 W max / 230Vac
• Power Factor: PF >0.94
Connections
• DMX: XLR 5 pole In/Out panel connectors
• Power supply: PowerCON TRUE1 In/Out panel connectors
Circuits protections
Overvoltage and overtemperature circuits protection
Operating temperature
-10° / 45° C
Storage temperature
-20° / 60° C
Physical
• IP20
• Weight:
- FR - 9.3 Kg (20.5 lbs)
- PC - 10.4 Kg (22.9 lbs)
• Finishing: Black - White
Accessories included
• 1x PowerCON TRUE1 female cable connector (code 0520P066)
• 1x XLR 5 pins female cable connector (code 0508B147)
• 1x XLR 5 pins male cable connector (code 0508B148)
• 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)
