multi chip LED Source
Ø 175 mm Fresnel lens
superior white light quality and precise color rendering
extensive colour palette, wide range of pastel colors
linear CCT
noise management
Green – Magenta linear balance,
for a natural reproduction of any skin tone
Technical data

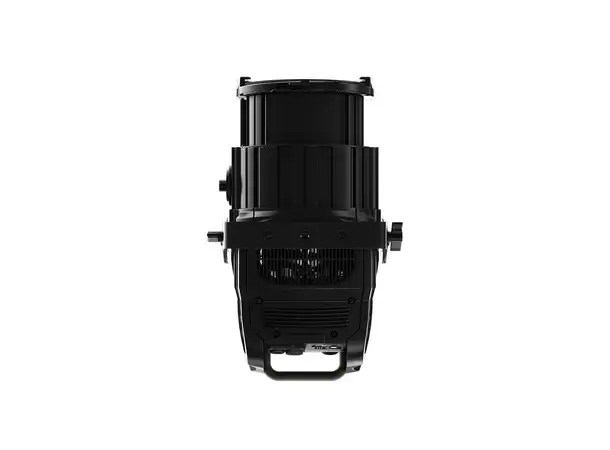

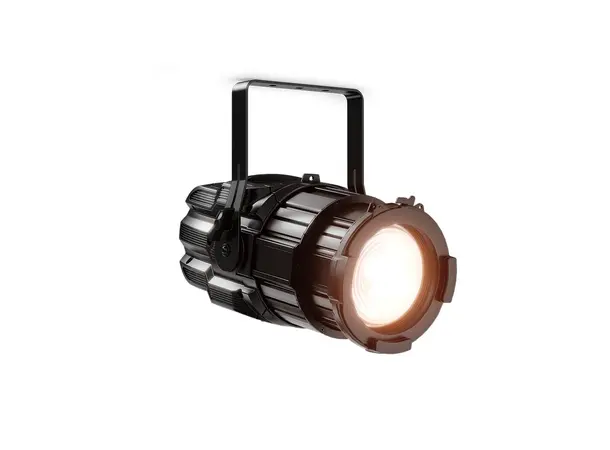

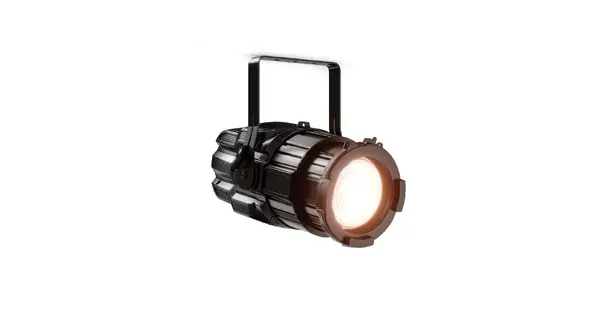

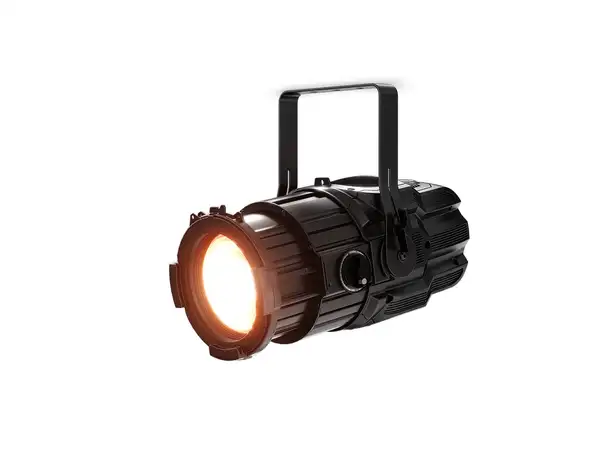

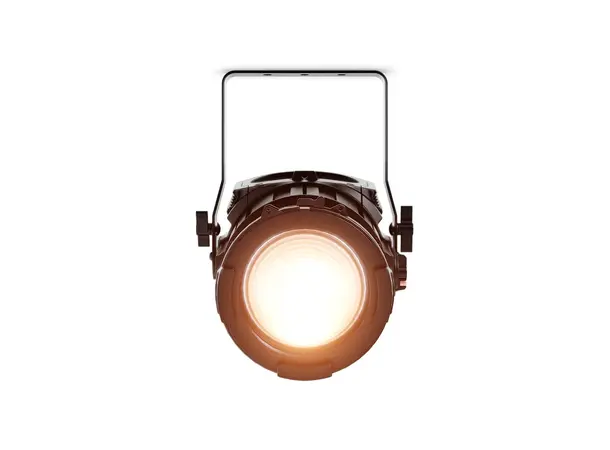

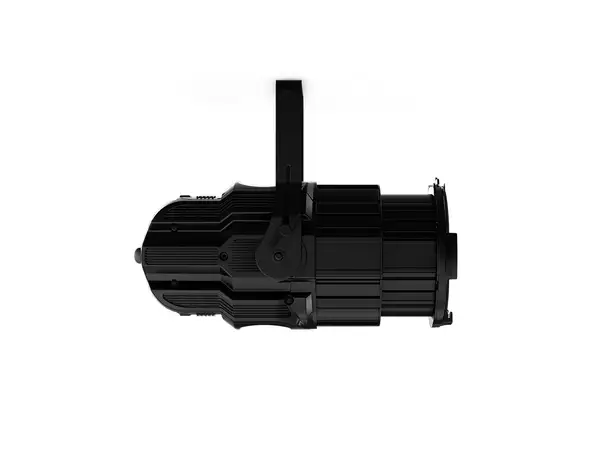

TENORE 5 HQS is the un-conventional evolution to the conventional series of static LED lights. With a lumen output up to 9,300 lm, Tenore 5 HQS represents a perfect example of uncompromising professional lighting performance.
Thanks its multi-chip source, this conventional projector offers superior light quality, both white, with an optimal color rendering up to 98, and in color creation. The HQS mark (High Quality Spectrum - DTS trademark) is for DTS a guarantee of the ability to generate quality whites, a wider color palette with a range of pastel shades and rich warm nuances.
To meet the needs of theater and television locations, Tenore allows noise control with 4 fan management modes up to 26dBA.
Output
• Multi chip LED Source
• Lumens output: 9,300 lm (Fresnel lens)
• Lumens output: 6,300 lm (PC lens)
• CRI: up to 98
• TLCI: up to 96
• LED Lifespan: 50,000 hours (L70B10)
Optical group
• Ø 175 mm Fresnel (FR) lens
• Ø 150 mm Antihalo (PC) lens
• Linear zoom
- 12° - 62° with Frensel lens
- 6.5° - 45° with PC lens
Color & White generation
• 6-color LED engine
• Linear CCT (1800 K - 10000 K)
• Linear ‘Green saturation’
• 100 gel filters emulation:
- Linear crossfade from gel filters emulation to CCT whites
- Linear crossfade between emulated gel filters
- True color of gel filters emulation at any CCT values
• “Raw” RGBACL color-mixing in Advanced’ mode
Dimmer
• ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
• Tungsten emulation - CCT variation emulates behavior of Halo-lamps
Control
• LCD graphic display + Jog Shuttle
• RDM/DMX 512 protocols
• ‘Standard’, ‘Silent’, ‘Ultra Silent’ and ‘Automatic’ fan modes
• Noise level
- Standard: 34dBA @ 1m (normal operation, 100% power)
- Silent: 29dBA @ 1m (normal operation, 72% power)
- Ultra Silent: 26dBA @ 1m (normal operation, 57% power)
- Automatic: fans adapt to operational status (output power priority)
• Firmware updatable via DTS firmware uploader dongle
DMX
• 5 DMX modes:
- CCT (Default) - Correlated Color Temperature
- Advanced - Correlated Color Temperature + Raw control for color channels RGBACL
- Basic - Correlated Color Temperature with priority on Gel Library and RGBACL color
- Expo - Dimmer 8 bit; Correlated Color Temperature priority on Gel Library
- CMY Emulation - Cyan, Magenta, Yellow and CTO emulation Mode
Power supply
• Wide range100/240 Vac 50-60 Hz
• Power consumption: 390 W max / 230Vac
• Power Factor: PF >0.94
Connections
• DMX: XLR 5 pole In/Out panel connectors
• Power supply: PowerCON TRUE1 In/Out panel connectors
Circuits protections
Overvoltage and overtemperature circuits protection
Operating temperature
-10° / 45° C
Storage temperature
-20° / 60° C
Physical
• IP20
• Weight:
- FR - 9.3 Kg (20.5 lbs)
- PC - 10.4 Kg (22.9 lbs)
• Finishing: Black - White
Accessories included
• 1x PowerCON TRUE1 female cable connector (code 0520P066)
• 1x XLR 5 pins female cable connector (code 0508B147)
• 1x XLR 5 pins male cable connector (code 0508B148)
• 1x Filter frame Black finishing - already installed on the projector (code 02M093424.49)
