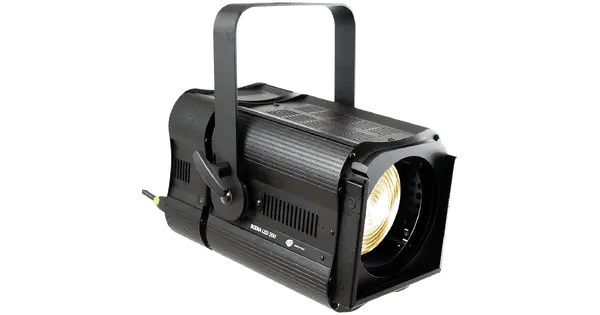

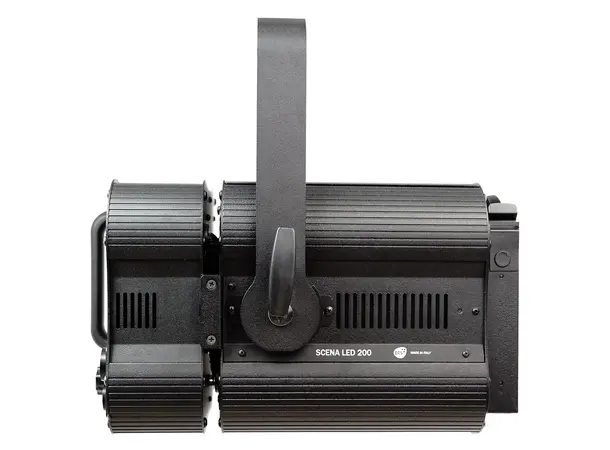

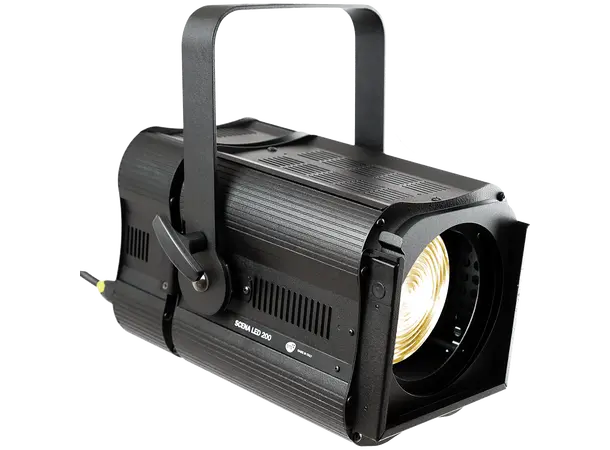

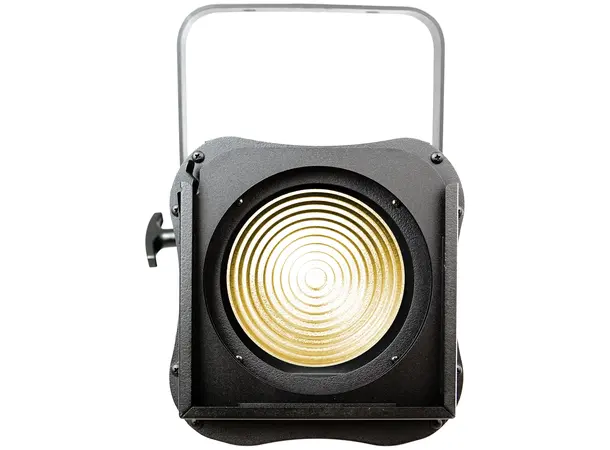

DTS Scena LED 200 CT – Tunable White LED Fresnel (2700 K – 6500 K)

The SCENA line has been designed for theatre installations, and offers a remarkable light quality emission, both in full color LED variants, and in white LEDs, which include the variable temperature color solutions. The classic design, combined with the unmatched performance of the Fresnel lens and the wide zoom excursion, ensures a striking wash lighting.

Scena LED 200 CT is a DMX-controlled LED projector equipped with a tunable white LED 2700 K ÷ 6500 K that guarantees a color rendering index up to 90. The unit features a 150 mm diameter Fresnel lens and a long excursion linear zoom that make it suitable for medium to big theatres, museums or exhibition areas where adjustable color temperature is required.

Technical Data

Output

• Single white LED with linearly tunable color temperature (2700 K - 6500 K)
• Lumens output: up to 5,613 @ 700mA - CRI >90
• LED lifespan: 50,000 hours (L70B10)

Optical Group

• Ø 150 mm Fresnel lens
• 6.5°- 70° linear zoom

Control

• DMX 512 / RDM protocols
• 4-digit 7-segment LED display + 4 soft keys
• Internal operating system updatable via DTS dongle firmware uploader

DMX

• 7 DMX channels (default)
• 2 DMX channels
• “CTC” mode

Power Supply

• Full-range 100-240Vac 50-60 Hz
• Power consumption: 200 W max
• Power Factor: PF >0.94

Connections

• Power supply: PowerCON TRUE1 In/Out panel connectors
• DMX: XLR 5-pole In/Out panel connectors

Circuits Protection

• Overvoltage and overtemperature circuits protection

Physical

• Finishing: black RAL 9005
• Weight: 8.6 Kg (21 lbs)

Accessories Included

• 1 x PowerCON TRUE1 female cable connector (code 0520P066)
• 1 x XLR 5 pins female cable connector (code 0508B147)
• 1 x XLR 5 pins male cable connector (code 0508B148)
• 1 x FilterframeBlack finishing - already installed on the projector (code 02M093278.49)

Accessories on Request

• 03.TBD04 – Barndoor black finishing
• 0521A047 – Universal Hook Clamp - Max load 40 Kg - 88 lbs
• 0509C158 – Outdoor DMX cable 2 x 0.25 mm² - Flame retardant
• 03.LA.206 – DTS Dongle firmware uploader
• 0521A010 – Safety cable 3 x 600 mm - Max load 30 Kg
