DTS SCENA LED 80 CT

The SCENA line has been designed for theatre installations, and offers a remarkable light quality emission, both in full color LED variants, and in white LEDs, which include the variable temperature color solutions. The classic design, combined with the unmatched performance of the Fresnel lens and the wide zoom excursion, ensures a striking wash lighting.

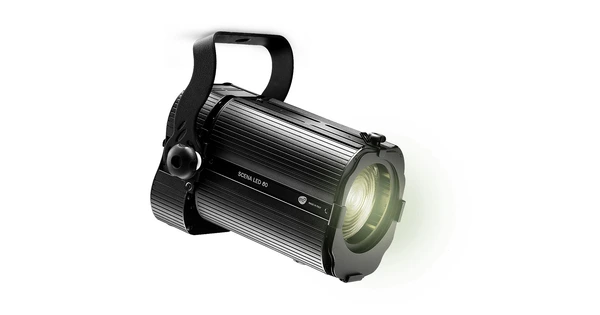

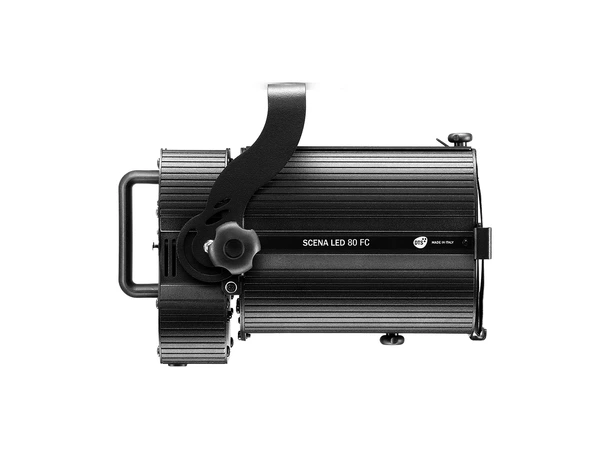

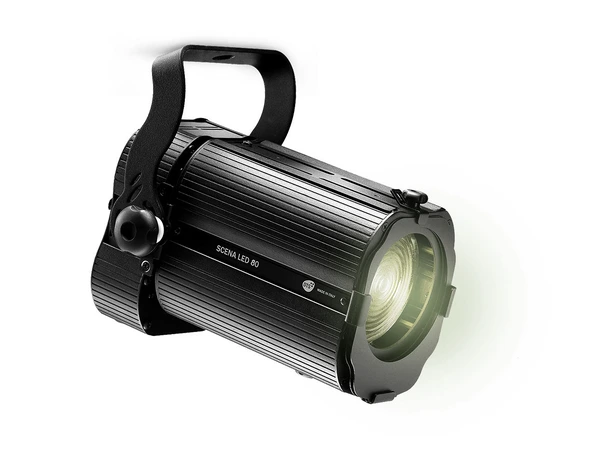

Scena LED 80 CT is a DMX-controlled LED projector equipped with a tunable white LED 2700 K ÷ 6000 K (Warm White / Cold White). The unit features a 112 mm diameter Fresnel lens and a long excursion 14°-77° linear zoom. SCENA LED 80 CT is a modern alternative to conventional lights, improving light quality and flexibility thanks the dedicate kit for the installation on electrified rail.

Output

• Single white LED with linearly tunable color temperature (2700 K - 6000 K)

• Lumens output: up to 5,400 @ 700mA - CRI >80

• LED lifespan: 50,000 hours (L70B10)

Optical group

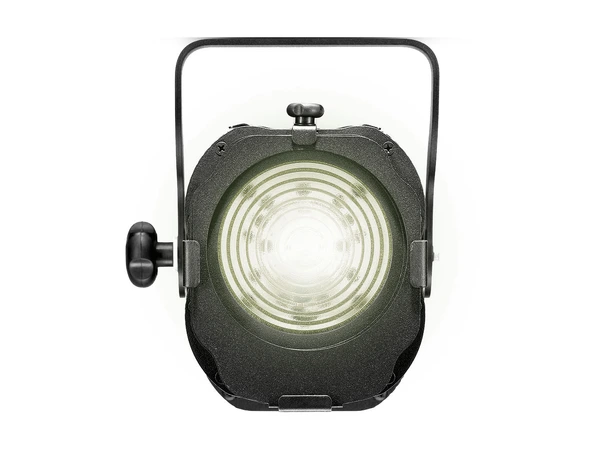

• Ø 112 mm Fresnel lens
• 14°- 77° linear zoom

Control

• DMX 512 / RDM protocols

• 4-digit 7-segment LED display + 4 soft keys

• Internal operating system updatable via DTS dongle firmware uploader

DMX

• 7 DMX channels (default)
• 2 DMX channels
• “CTC” mode

Power supply

• Full-range 100-240Vac 50-60 Hz

• Power consumption: 100 W max

• Power Factor: PF >0.95

Connections

• Power supply: PowerCON In&Out panel connectors

• DMX: XLR 5-pole In&Out panel connectors

Circuits protection

• Overvoltage and overtemperature circuits protection

Physical

• Weight: 4.2 Kg (9.3 lbs)

Accessories included

• 1 x PowerCON female cable connector (code 0520P014)

• 1 x XLR 5 pins male cable connector (code 0508B028)

• 1 x XLR 5 pins female cable connector (code 0508B027)

• 1 x FilterframeBlack finishing - already installed on the projector (code 02M00422.46)

Accessories on request

• 03.TA206 • Barndoor black finishing

• 0521A047 • Universal Hook Clamp - Max load 40 Kg - 88 lbs

• 0509C158 • Outdoor DMX cable 2 x 0.25 mm2 - Flame ratardant

• 03.LA.206 • DTS Dongle firmware uploader

• 0521A010 • Safety cable 3 x 600 mm - Max load 30 Kg

• 03.LA.235 • Kit track adaptor - black finishing (Mecanical adaptor + Electrical adaptor)
