32 Osram Ostar stage N RGBW LEDs

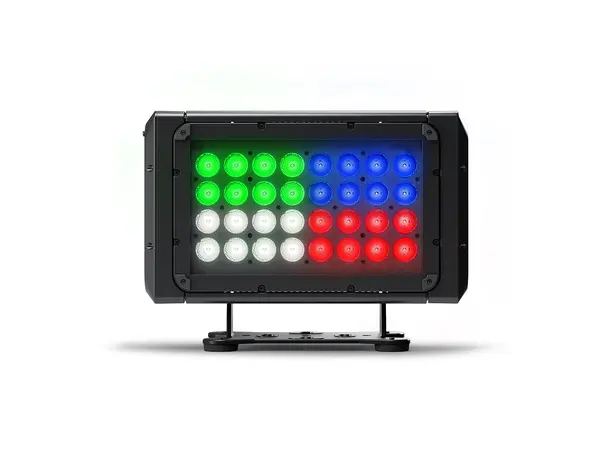

independent 4 sectors control
high-quality color mixing
quickly interchangeable beam angles
IP65 rated
sturdy: designed for very demanding applications
built-in full-range PSU
Built-in wireless DMX transmitter – receiver
Technical data

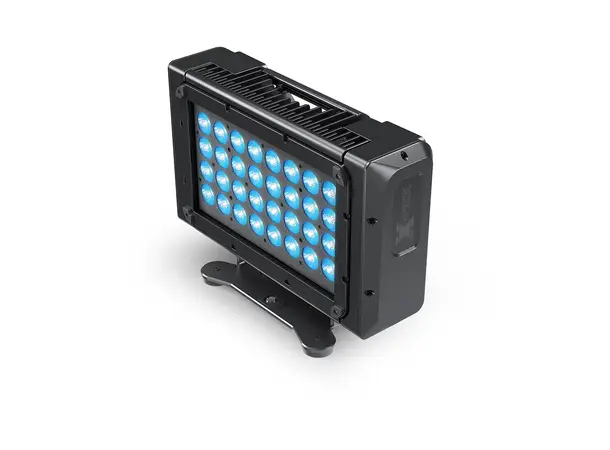

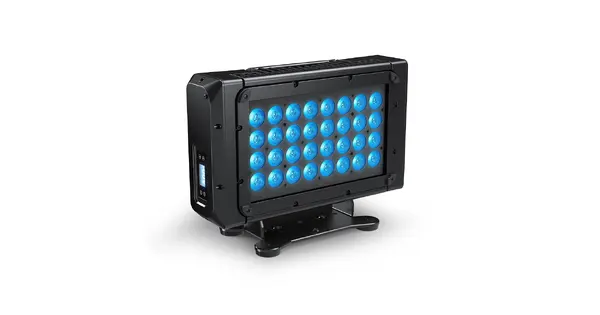

X BRICK is the self-contained, IP65 LED Wash light that combines light power, dynamic sectors and sturdiness to fit every application needs. X BRICK features a built-in PSU, a range of holographic filters easy interchangeables and IP65 connections. Furthermore two ergonomic handles and a smart swiveling bracket garantee right support on a variety of surfaces, rigging and easy installation.
Output
• 32 OSTAR STAGE “N” Full Color (RGBW) LEDs
• 15,300 lumen output
• LED lifespan: 50,000 hours
(70% lumen output)
Optical group
• 8° projection angle

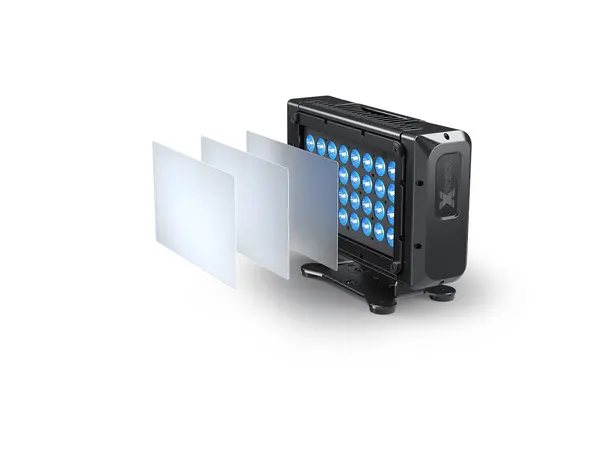

• Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting tools required)
• Uniform projection on surfaces
Color generation
• Ultra-Narrow 8°
• Narrow 10°
• Medium 25°
• Wide 40°
Control
• Wireless DMX receiver and transmitter (built-in)
• DMX 512 / RDM protocols

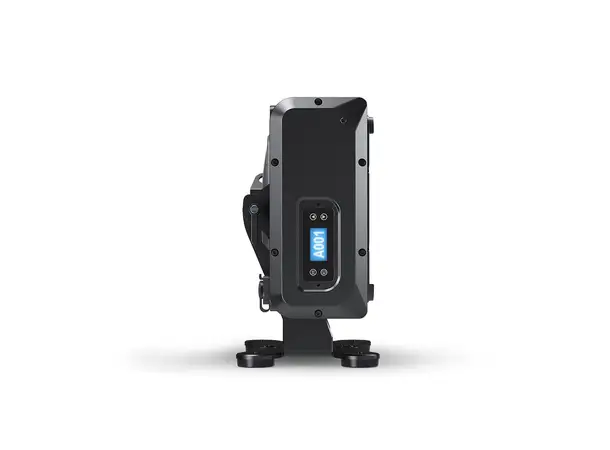

• LCD display + 4 capacitive touch keys
• Internal operating system updatable via DTS dongle firmware uploader
DMX
• 9 DMX modes
DMX FULL OPERATION MODES
1. Chase mode (default)
2. Extended mode
3. Sectors RGBW x4
4. Sectors RGBW fine x4
5. Sectors RGBW + Shut + Dim x4
DMX SINGLE LAYER MODES
(compatibility with all BRICK models)
6.Standard
7. Global RGBW
8. Global RGBW + Shut + Dim
9. Global RGBW + Dim fine
Power supply
• Built-in full-range PSU 100-240Vac 50-60 Hz
• Power consumption: 650 W
• Power factor: PF > 0.90
Connections
• All connectors are IP65 rated with water-proof caps
• PowerCon TRUE 1 In/Out panel connectors
• DMX In/Out panel connectors.
Internal safety devices
Overvoltage and overtemperature circuits protection
Operating temperature
-20° / 40° C
Physical
• IP65
• Max dimensions (WxHxD): 438 x 323 x 177 mm
(17.24” x 12.71” x6.96”)
• Weight 14 Kg (31 lbs)
• Finishing: Black - Silver - White
• Qualicoat Seaside treatment
Accessories included
• 1 x Holographic filter 20° (code 0506A043.D18)
• 1 x Holographic filter 40° (code 0506A045.D18)
• 1 x Holographic filter 60°x10° (code 0506A092.D18)
• 1 x connector PowerCON TRUE1 female (code 0520P066)
• 1 x Display UV protection (code 03.LA.218)
• 1 x Omega bracket with “Fast Lock” (code 02K00467)
