24 x Osram Ostar stage N RGBW LEDs
high-quality color mixing
quickly interchangeable beam angles
IP65 rated
designed for both temporary and permanent installations
built-in full-range PSU
very compact and lightweight
the best value for money
Technical data

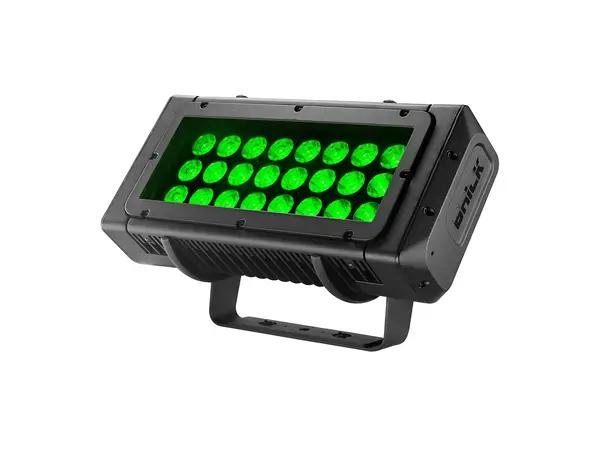

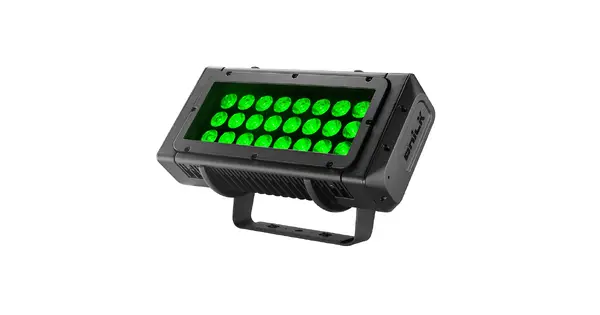

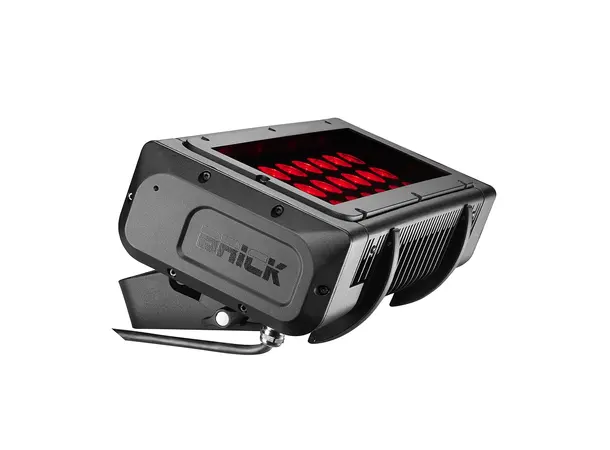

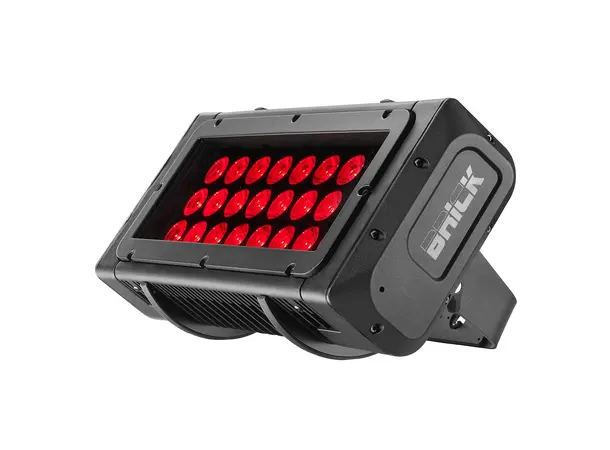

The new BRICK is a high power, very compact, self-contained, IP65 LED Wash light.
BRICK is suitable for various purposes, offering a range of projection angles quickly interchangeable (no tools required).
BRICK comes with an IP65 power cable plus 2 DMX cables with M / F XLR connectors, that make it perfect for temporary lighting applications, but also for safe long-lasting installations. Built with top quality components, BRICK gives you the best value for money by efficient design and full production automation.
Output
• 24 OSTAR STAGE “N” RGBW or RGBA (HQS) LEDs
• Lumen output (RGBW): 11,500 @ 700 mA
• Lumen output (HQS): 10,800@ 700 mA - CRI >90
• LED lifespan: 50,000 hours (70% lumen output)
Optical group
• 8° projection angle
• Range of quick-mounting holographic filters included: 20° / 40° / 60°x10° (no mounting tools required)
• Uniform projection on surfaces
Color generation
• 16 million colors
• Wide palette of pure uniform Whites with variable linear color temperature (2700K - 8000K)
Control
• DMX 512 / RDM

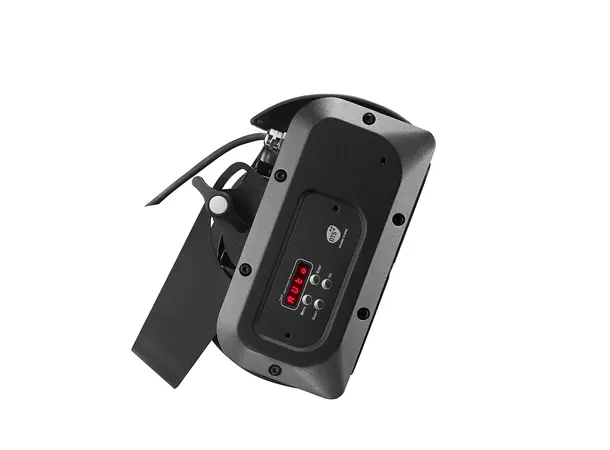

• 4-digit 7-segment LED display + 4 soft keys
• Internal operating system updatable via DTS dongle firmware uploader
DMX
• 10 DMX channels (Default)
Power supply
• Built-in full-range PSU
- ETL: 100-240Vac 50-60 Hz
- CE: 180-240Vac 50-60 Hz
• Consumption: 400 W
• Power Factor: PF >0.93
Connections
• Power supply: 3 x 1,5 sq mm cable (1.5 m length)
• DMX In/Out: 0.7 m cable with XLR 5 pins IP65
connector
Internal safety devices
Overvoltage and overtemperature
circuits protection
Operating temperature
• -20°/45° C
Physical
• IP65
• Dimensions (LxHxD): 438.7x262.2x160.5 mm
(17.27''x10.32''x6.32'')
• Weight: 10 Kg (22 lbs)
• Finishing: Black - Silver - White
• Qualicoat Seaside treatment
Accessories included
• 1 x Holographic filter 20° (code 0506A043.D11)
• 1 x Holographic filter 40° (code 0506A045.D11)
• 1 x Holographic filter 60°x10° (code 0506A092.D11)
• 1 x PowerCON TRUE1 female cable connector (code 0520P066)
• 1 x PowerCON TRUE1 male cable connector (code 0520P067)
• 1 x Brick display uv protection 9005 (code 02LD0137.97)
• 1 x XR:bracket omega with fast lock (code 02MH0240)
