Highlights

DRIVENET is a line of digital power supplies and controllers for large networks of LED projectors. Designed to supply, control and monitor LED networks centrally and remotely, DRIVENET units offer total flexibility and absolute reliability. With a range of 10 different models, DRIVENET provides effective solutions tailored to the most complex and demanding lighting installations, whether indoors, outdoors or underwater.

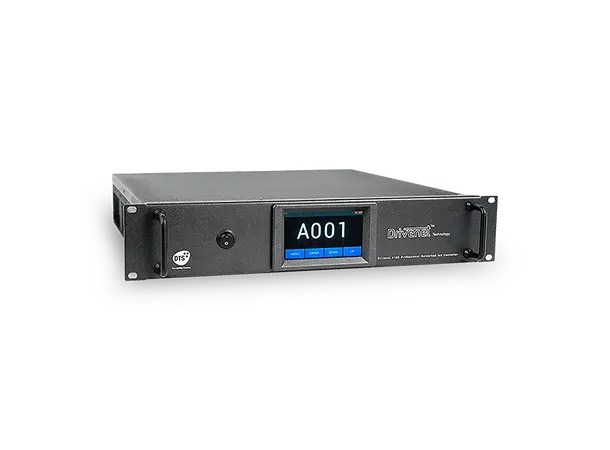

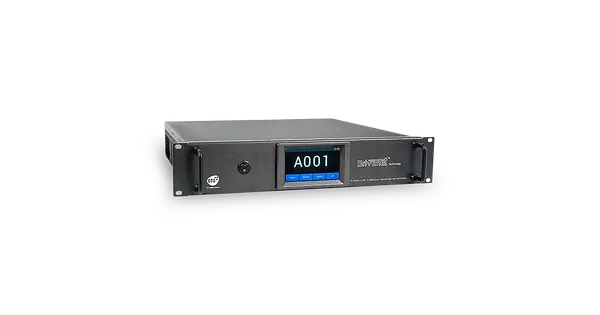

Drivenet 832 24Vdc is the DTS 32-channel rack-mountable power supply / controller. The unit has been developed to power LED projectors working in underwater installations – such as swimming pools – where safety regulations request 24 V DC max voltage. The unit can be controlled via RDM / DMX 512 protocols or with Art-Net optional interface.

Output

• Input voltage/frequency range: 100-240Vac 50-60 Hz

•Power Factor: PF >0.95

• Output channels: 32 (4 channels x 8 groups)

• Output voltage: 24 Vdc

• Output current: 700mA max (per channel)

• Max power: 600 W

Distance between Drivenet and projectors

• Max 100 m

Connections

• Output: Screw terminals connectors

• Mains: PowerCON male panel connector

• DMX: XLR 5-pole In/Out panel connectors

Control

• Protocols: RDM / DMX 512

• Art-Net: Available on request

• Touch-screen color display

• Internal operating system updatable via DTS dongle firmware uploader

Physical

• < 2-unit rack
• Weigth: 9.1 Kg (20.1 lbs)

Accessories included

• 1 x XLR 5 pins female cable connector (code 0508B065)

• 1 x XLR 5 pins male cable connector (code 0508B066)

• 1 x PowerCON female cable connector (code 0520P014)
