Titan Quick Trigger TV Clamp – Doughty Engineering

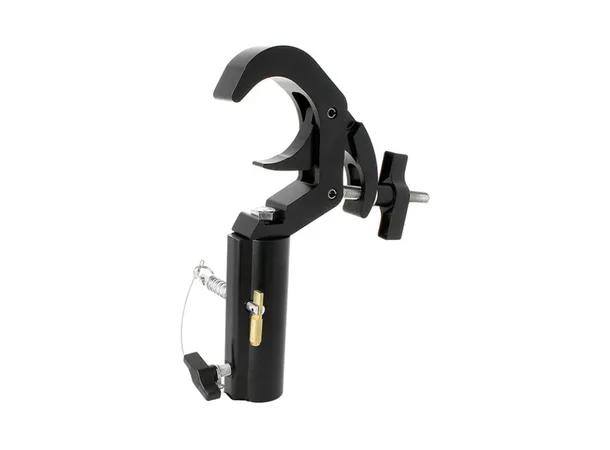

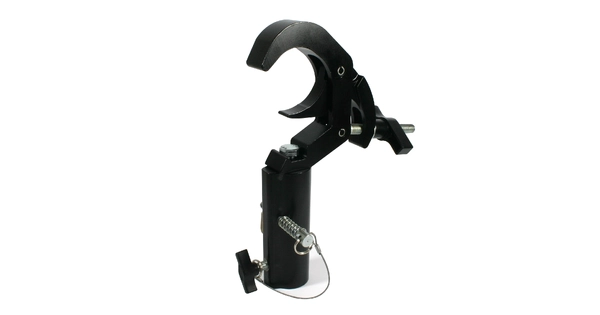

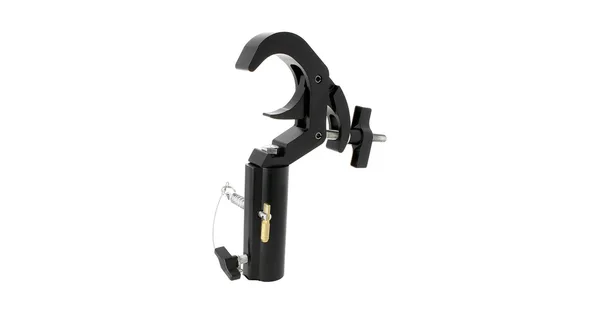

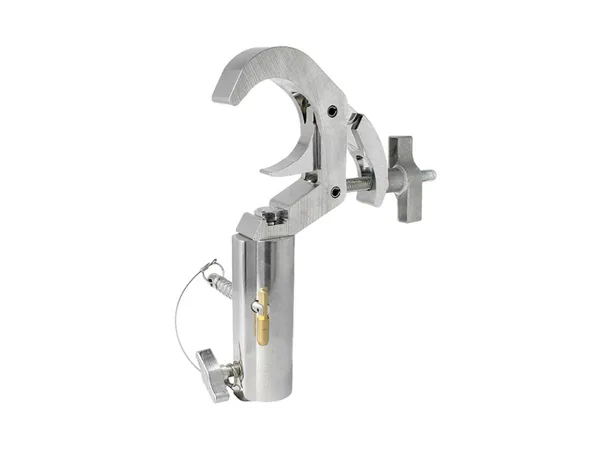

A high tensile extruded aluminium quick trigger clamp that is suitable for 48mm to 80mm diameter tubes. It has a WLL of 100Kg and is 30mm wide factory fitted with a 29mm Spigot receiver designed to accept a 28mm diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

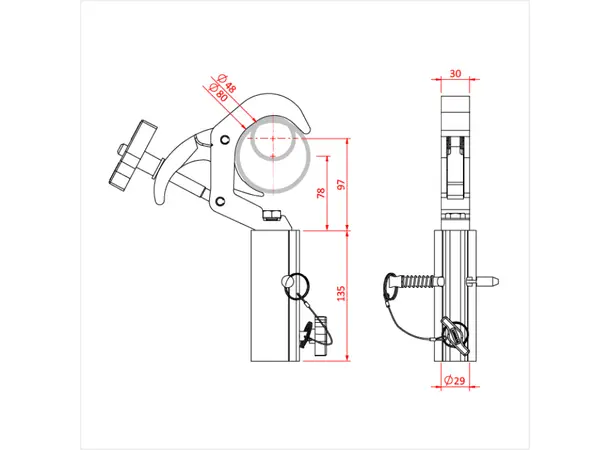

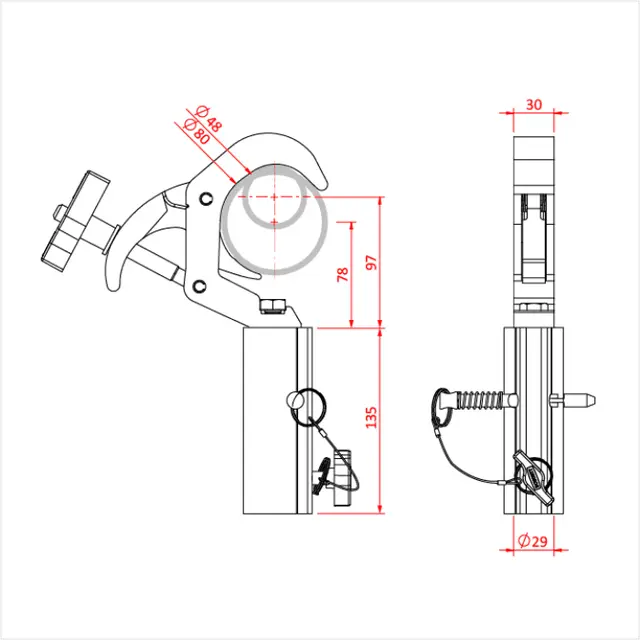

Specification
WLL:
100Kg
Tube Diameter:
48 – 80mm
Clamp Width:
30mm
Colour:
Silver Black
Product link:
https://doughty-engineering.co.uk/products/titan-quick-trigger-tv-clamp/
