Slimline Quick Trigger TV Clamp – Doughty Engineering

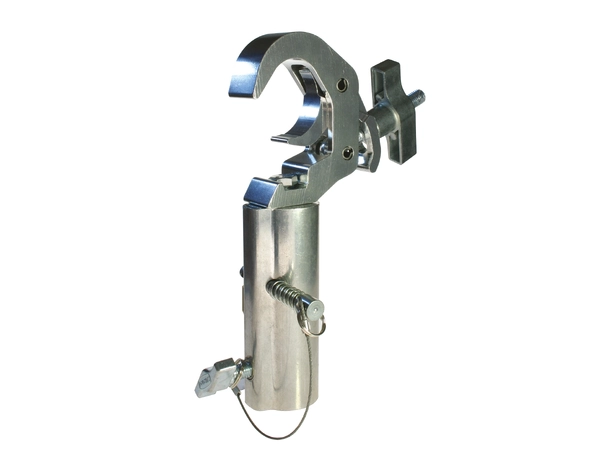

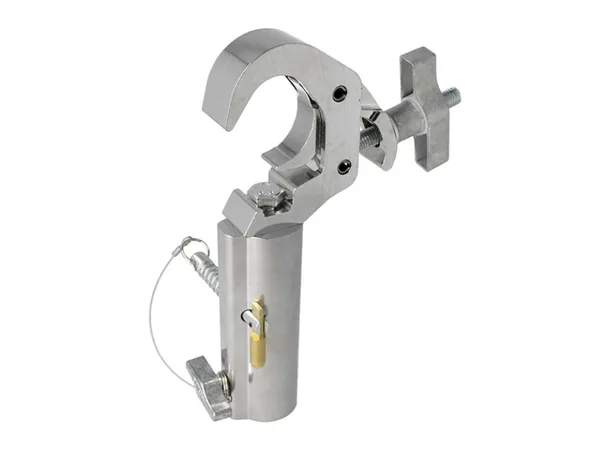

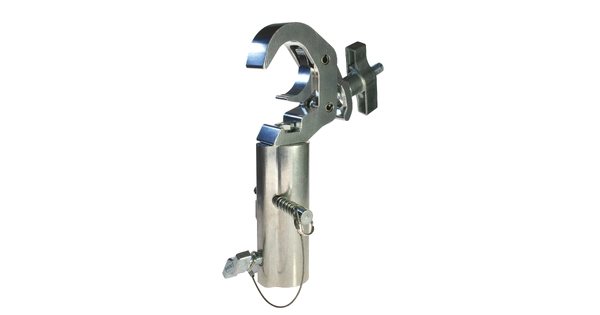

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 100Kg and is 30mm wide factory, fitted with a 29mm Spigot receiver designed to accept a 28mm diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.

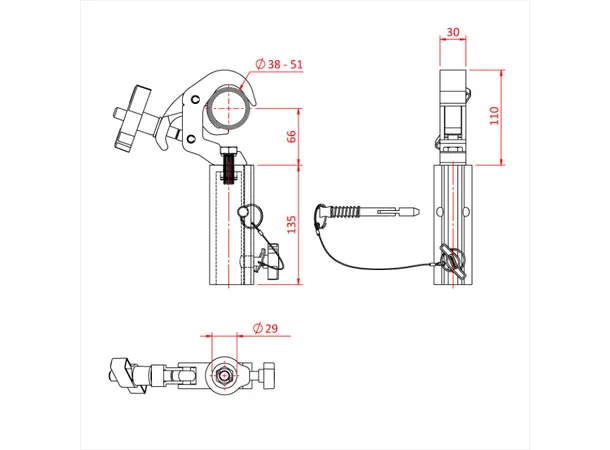

Specification
WLL:
100Kg
Tube Diameter:
38-51mm
Clamp Width:
30mm
Spigot Diameter:
16mm
Colour:
Silver Black
Box Qty:
6
