Baby Quick Trigger TV Clamp – Doughty Engineering

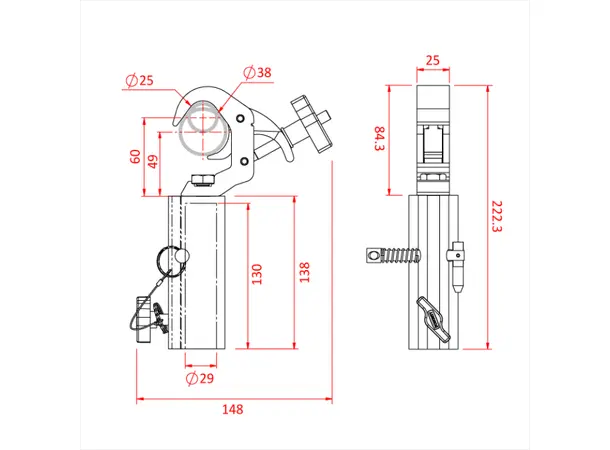

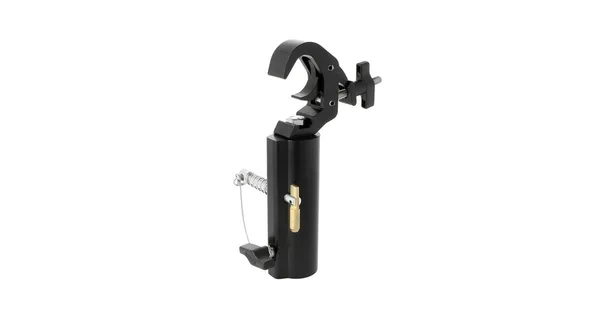

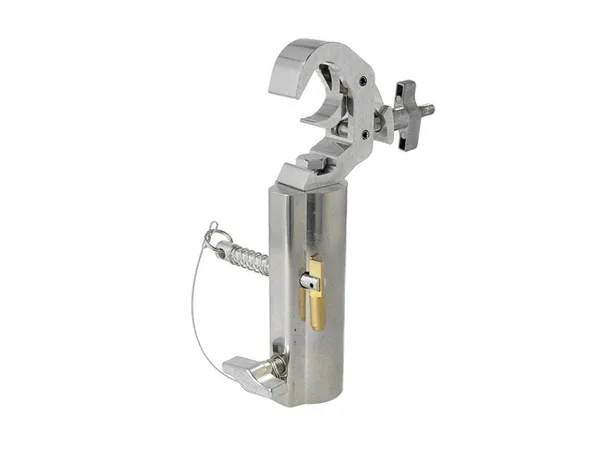

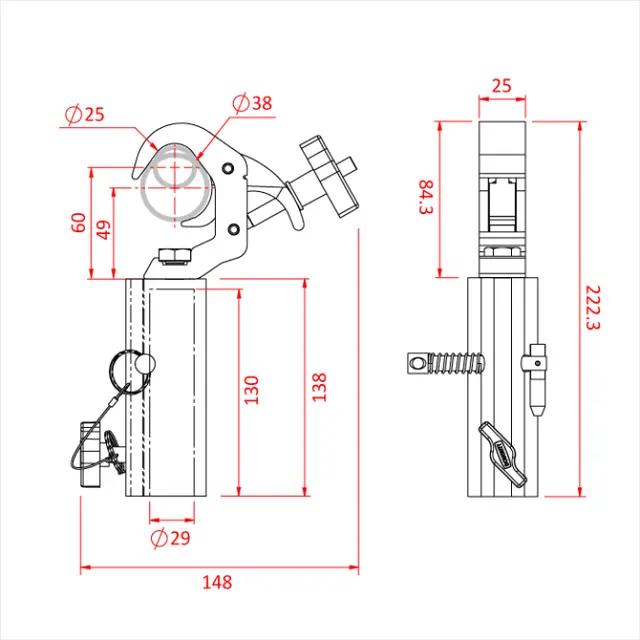

A high tensile extruded aluminium quick trigger clamp that is suitable for 25mm to 38mm diameter tubes. It has a WLL of 40Kg and is 25mm wide factory fitted with a 29mm spigot receiver designed to accept a 28mm diameter spigot. Supplied with lynch pin for secondary locking allowing 360 degree rotation, this clamp is designed predominantly for use in the TV/Film industry and is often used with Drop Arms and Pantographs. Available in polished silver or powder coated black.
Specification
WLL:
40Kg
Tube Diameter:
25 – 38mm
Product link:
https://doughty-engineering.co.uk/products/baby-quick-trigger-tv-clamp/
