Baby Quick Trigger Clamp – Doughty Engineering

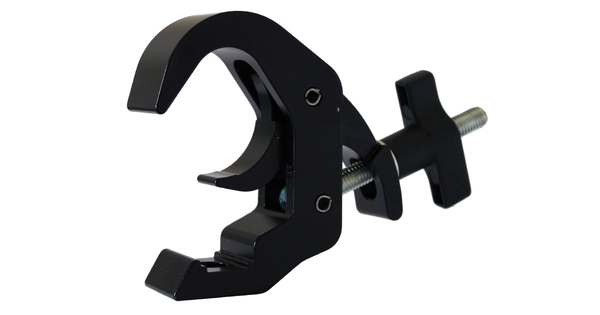

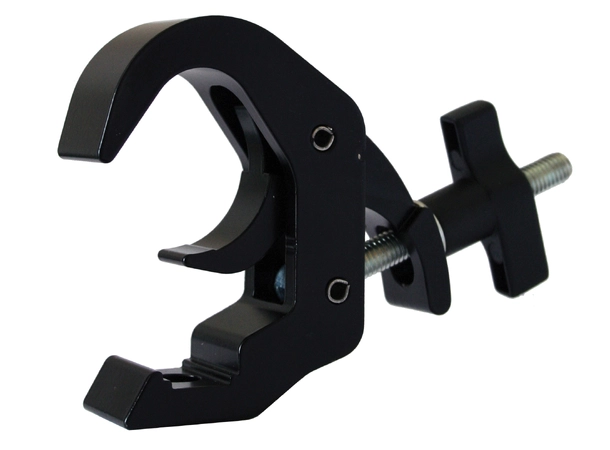

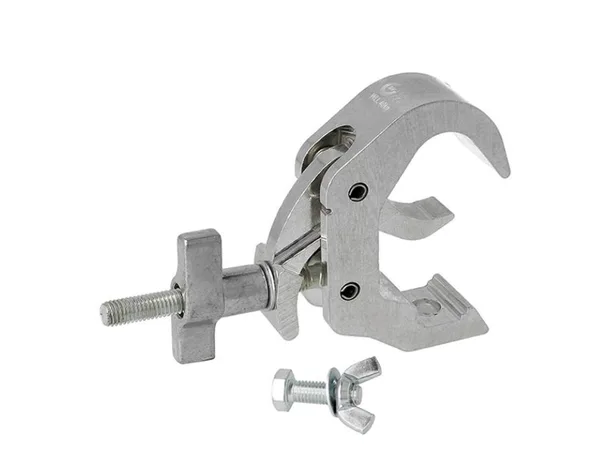

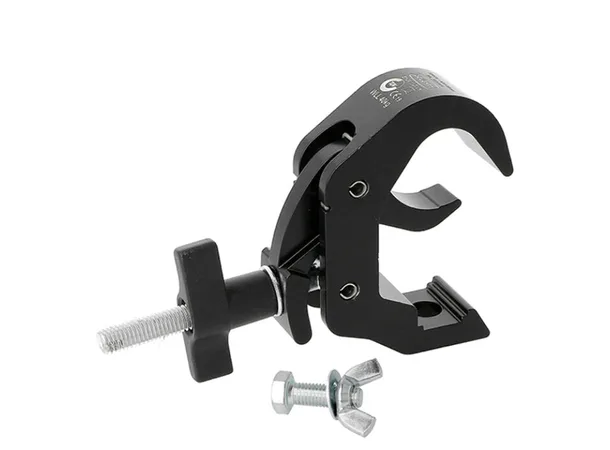

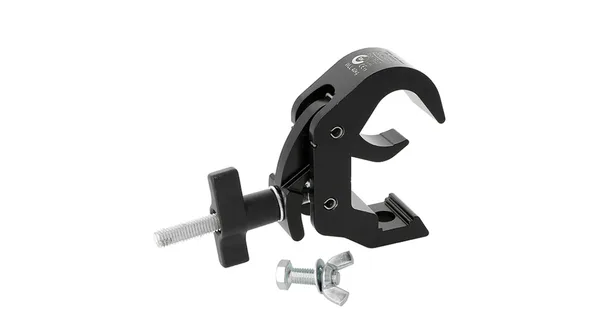

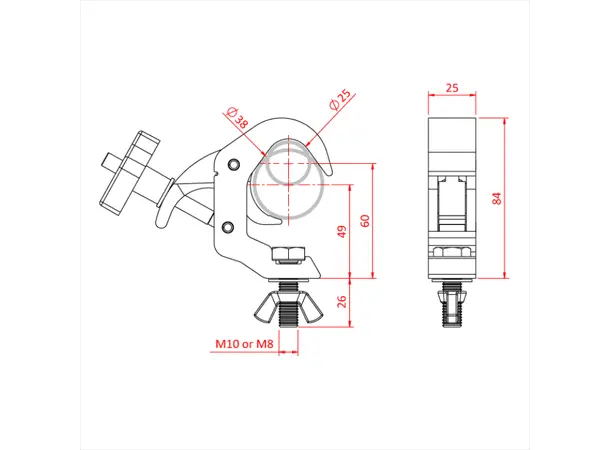

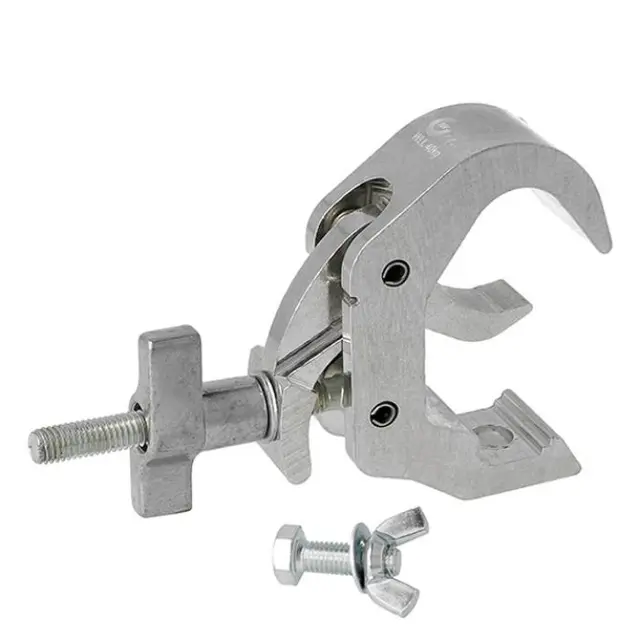

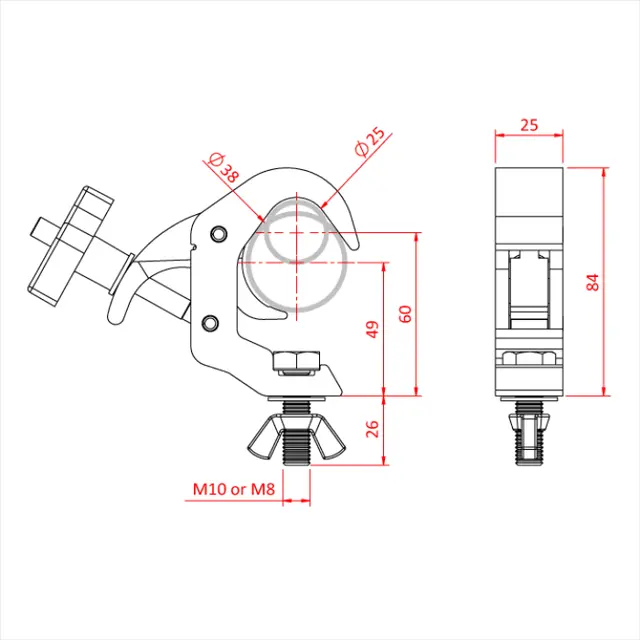

A high tensile extruded aluminium quick trigger clamp that is suitable for 25mm to 38mm diameter tubes. It has a WLL of 40Kg and is 25mm wide. Slotted to hold captive an M8 or M10 nut or bolt head and supplied with an M10 X 35 bolt and wing nut. Ideal for smaller trussing as it will not damage the cords. Available in polished silver or powder coated black.
Specification
WLL:
40Kg
Tube Diameter:
25 – 38mm
Clamp Width:
25mm
Colour:
Silver Black
Box Qty:
18
Product link:
https://doughty-engineering.co.uk/products/baby-quick-trigger-clamp/
