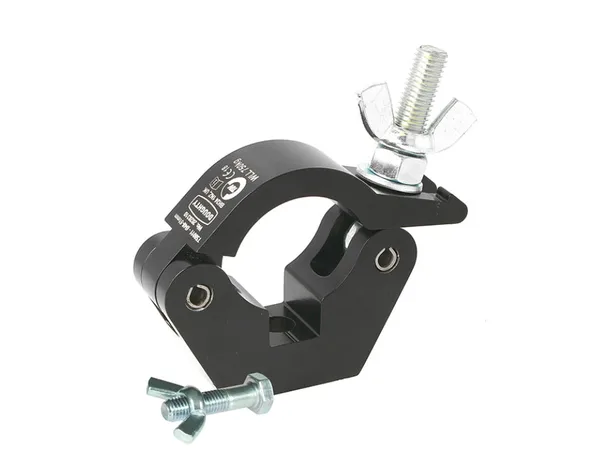

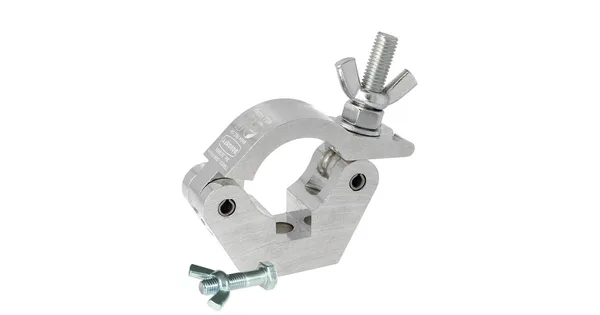

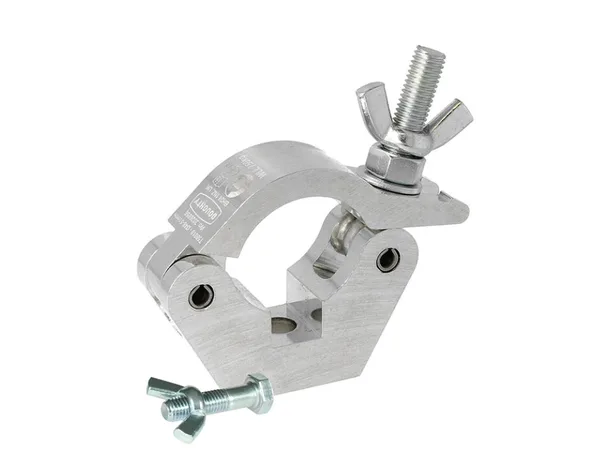

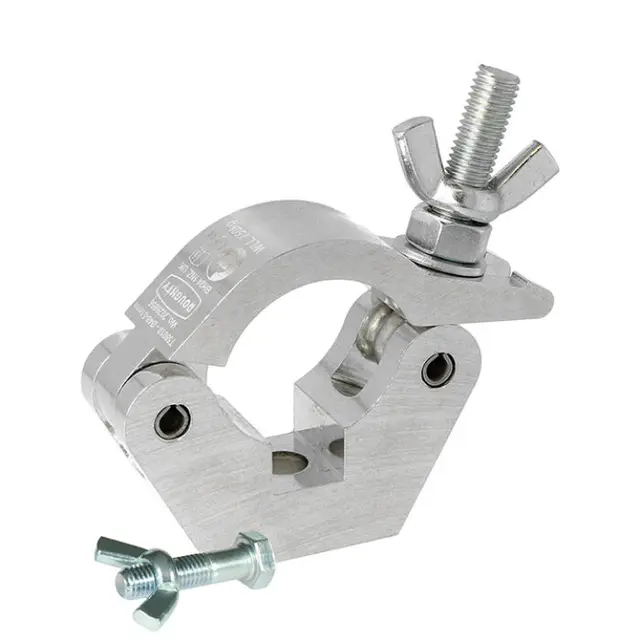

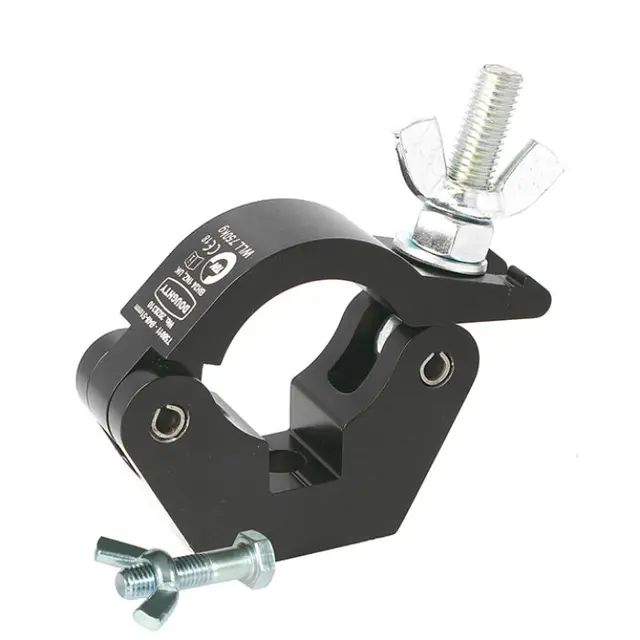

Doughty T58011 S/L Hook Cl. M12

Slimline Doughty Hook Clamp – Doughty Engineering

The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89" – 2.01") diameter tubes. It has a WLL of 750Kg and is 30mm (1.18") wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.

Specification

WLL:
750kg

Tube Diameter:
48mm – 51mm (1.89” – 2.01”)

Clamp Width:
30mm (1.18")

Colour:
Silver Black

Box Qty:
18
