30SV with Fork – Doughty Engineering

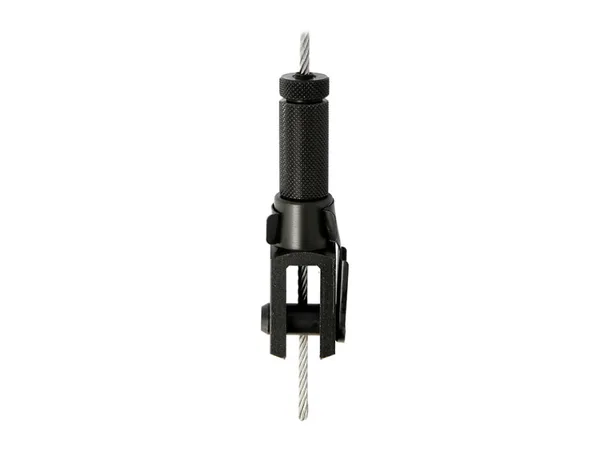

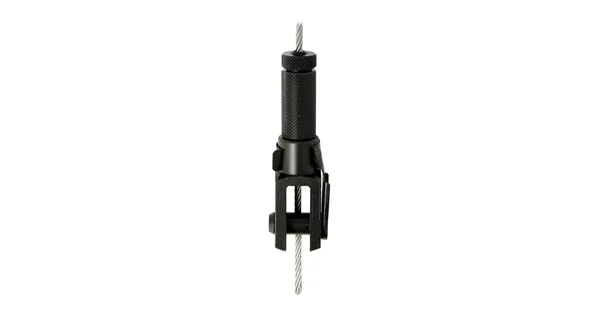

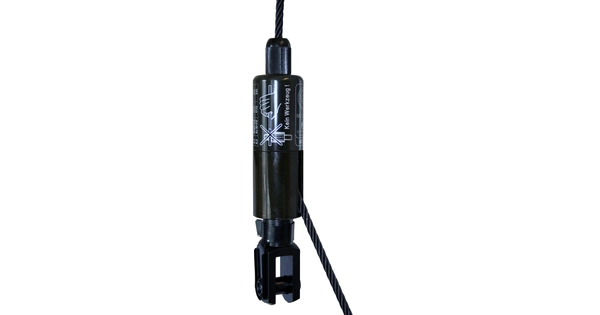

A Type 30SV Reutlinger Cable Holder fitted with a fork. Suitable for Ø2mm & Ø3mm steel wire rope these cable holders have been specifically designed for applications which demand compliance with BGV C1, such as stage productions, fair booths, etc.
Reutlinger cable holders can be repositioned without damaging the cable and no tools are necessary.

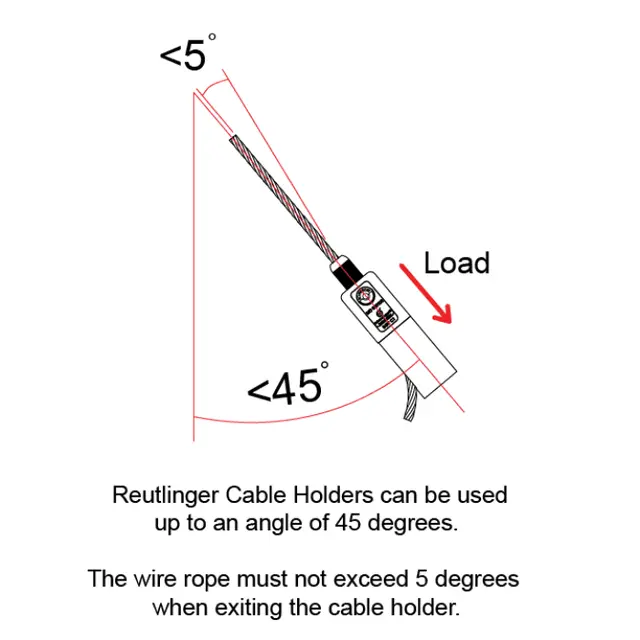

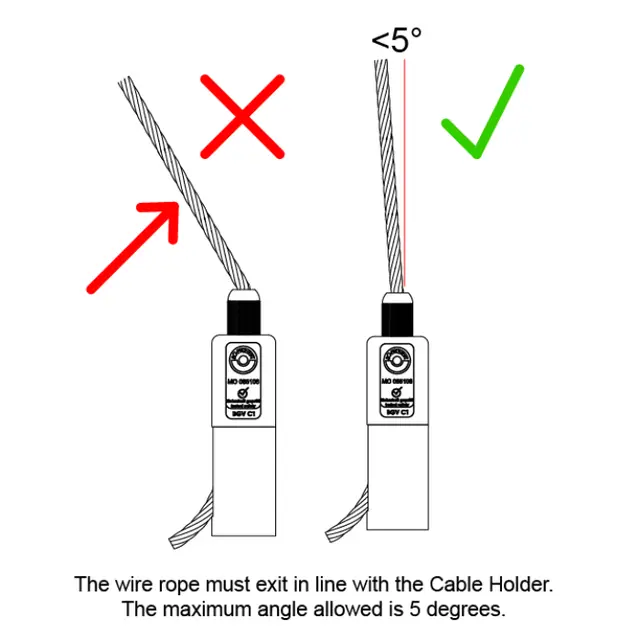

Please see the Reutlinger website for permitted wire rope construction, type and further loading instructions:
https://reutlinger.de/en/products-m/standard-products/cable-holder/type-30
Specification
WLL:
Ø2mm – 40Kg – Galvanised Steel Cable Ø2mm – 30Kg – Stainless Steel Cable Ø3mm – 85Kg – Galvanised Steel Cable Ø3mm – 65Kg – Stainless Steel Cable
Finish:
Black
Colour:
Black
Wire Diameter (i):
2mm 3mm
Product link:
https://doughty-engineering.co.uk/products/30sv-with-fork/
