Demountable Grid Hanger – Doughty Engineering

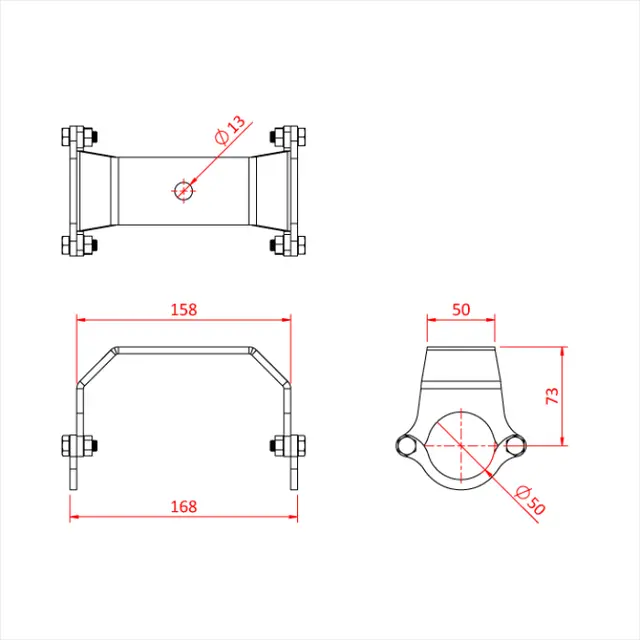

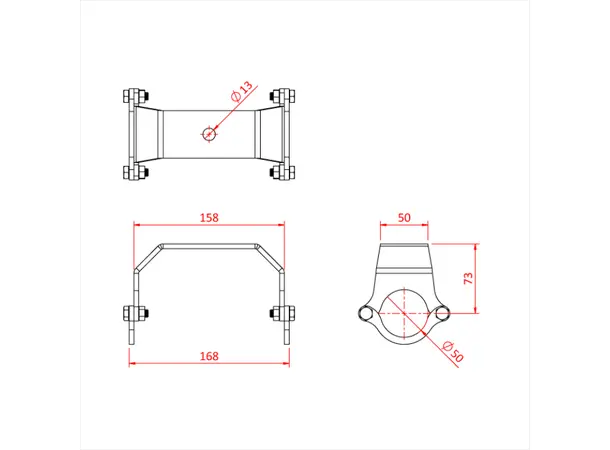

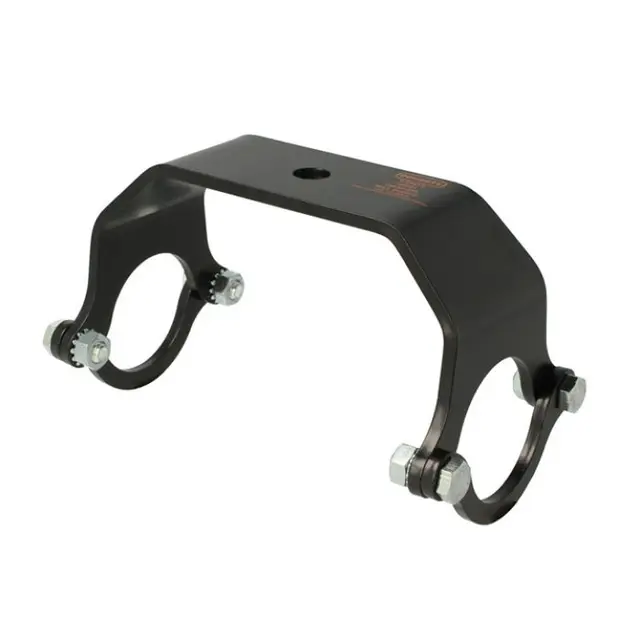

A folded steel hanger designed to suspend 48mm diameter tube from an M12 stud or bolt fixing.
Features removable lower sections that mean the barrel can be easily removed or added to the grid with the fixings in place.

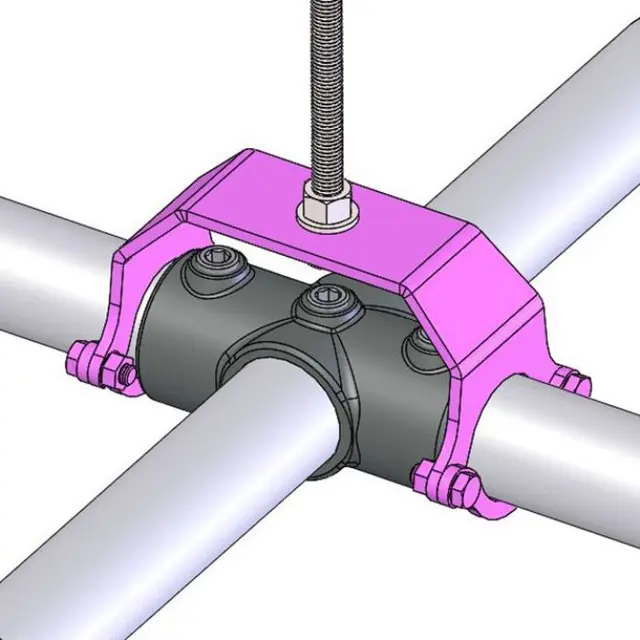

Ideal for suspending a barrel grid beneath air conditioning ducts etc. The hangers width is the correct size to fit over a pipe clamp fitting.
Specification
WLL:
200Kg
Tube Diameter:
48mm
Finish:
Black
Colour:
Black
