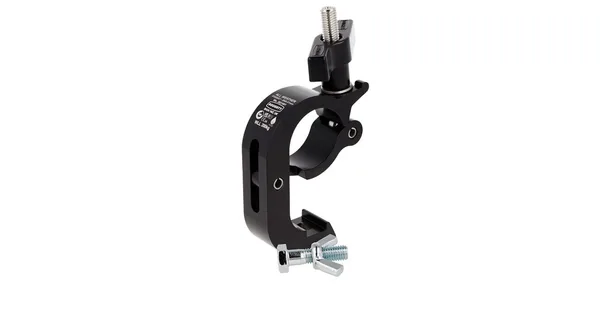

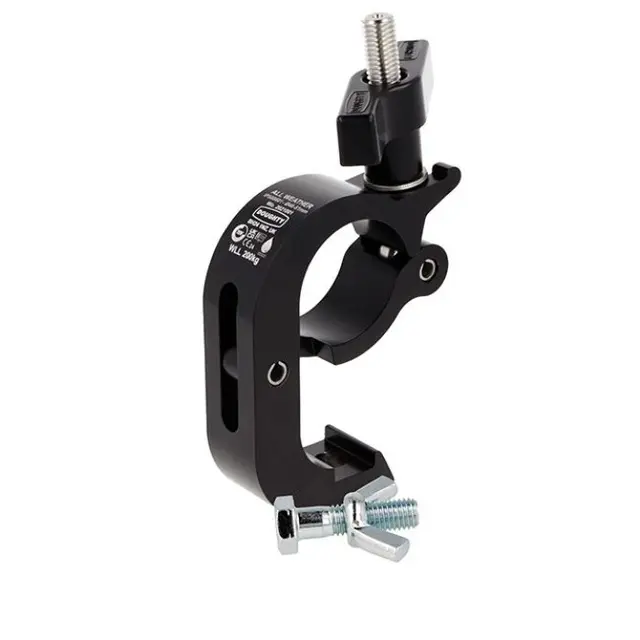

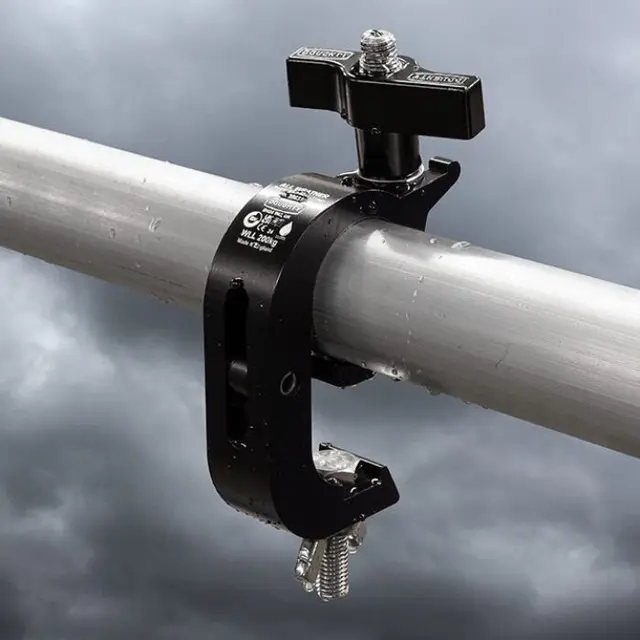

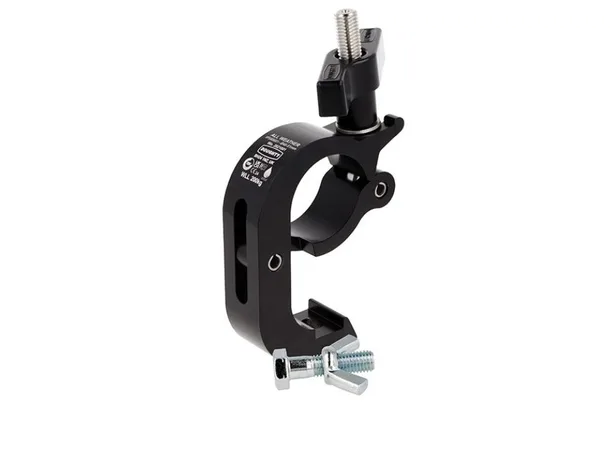

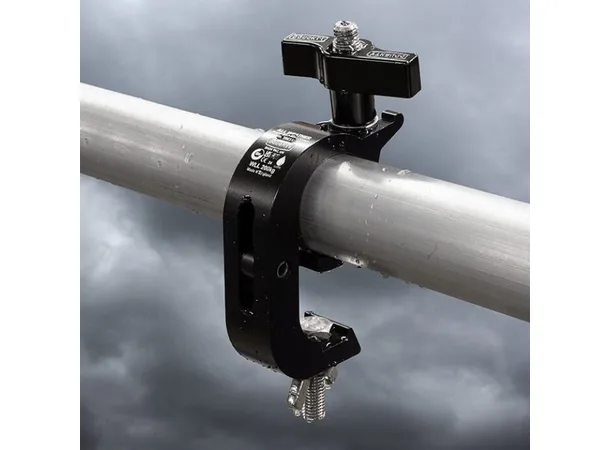

Doughty IP5886101 TRIGGER HOOK CLAMP

All Weather Trigger Hook Clamp – Doughty Engineering

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.

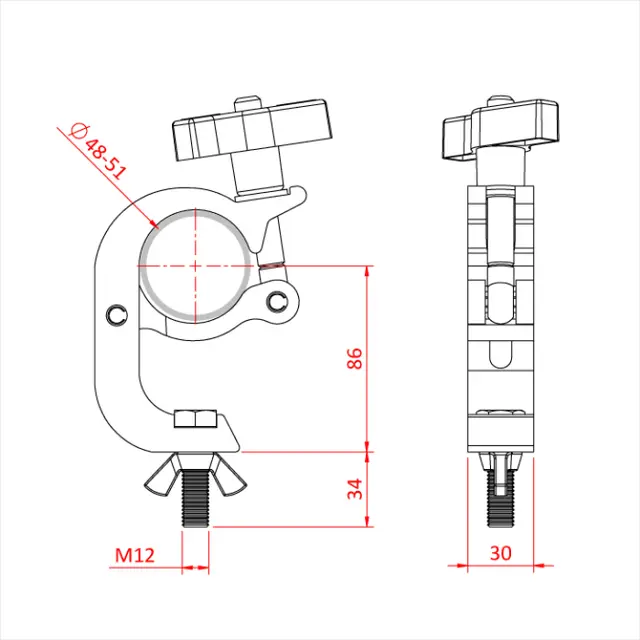

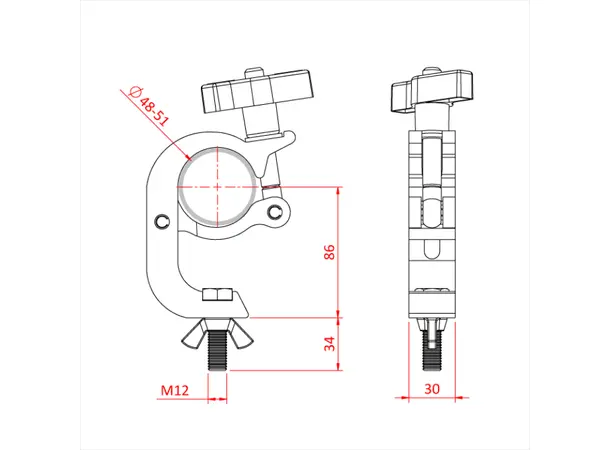

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm diameter tubes. Has a WLL of 200Kg and is 30mm wide. Slotted to hold captive an M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in powder coated Black.

Specification

Finish:
Black Powder Paint

Clamp Width:
30mm

Tube Diameter:
48-51mm

WLL:
200Kg
