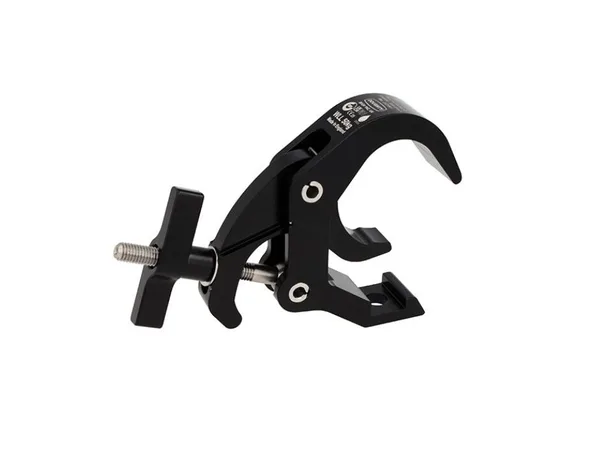

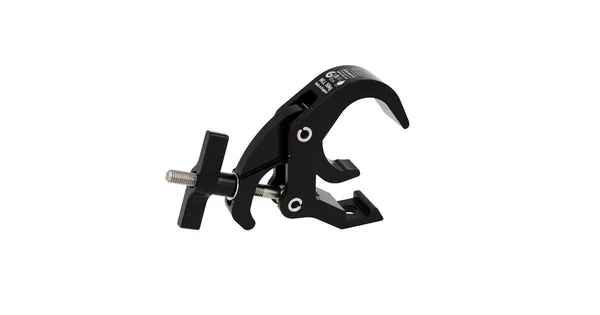

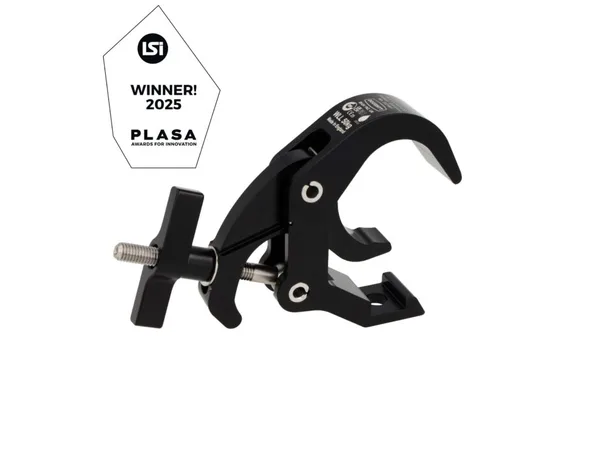

Lightweight Quick Trigger Clamp – Doughty Engineering

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade parts which make it ideal for use at outdoor events.

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 50Kg and is 25mm wide. Slotted to hold captive an M10 nut or bolt head and supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut.

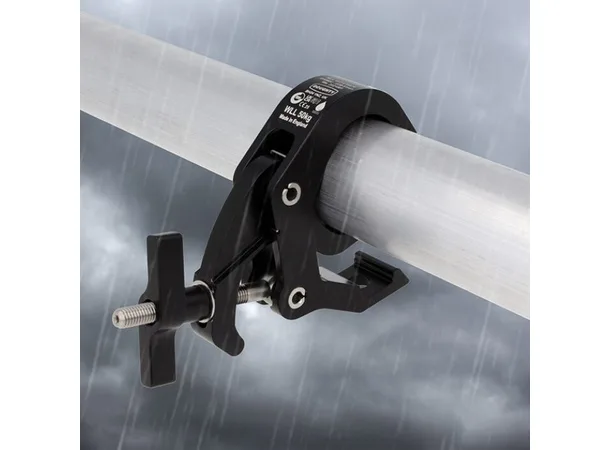

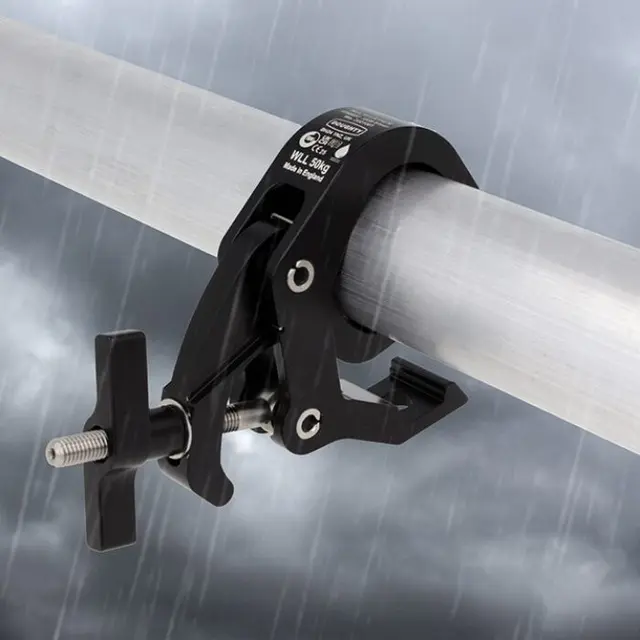

Ideal for hanging moving heads on trussing as it will not damage the cords. Available in powder coated black.

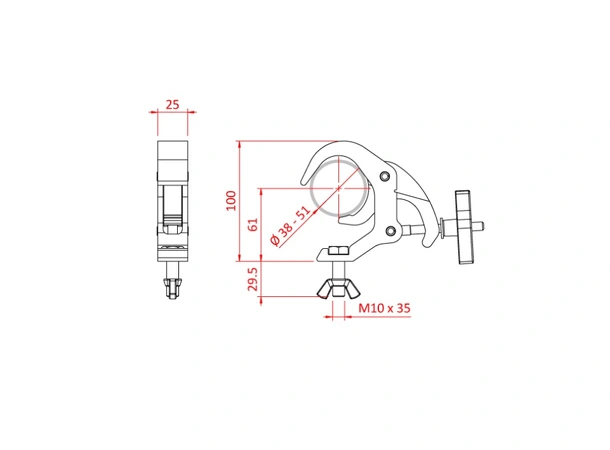

Specification

Clamp Width:
25mm

Finish:
Black Powder Paint

Colour:
Black

Tube Diameter:
38-51mm

WLL:
50Kg

Fixing:
M10

Box Qty:
24
