All Weather Slimline Quick Trigger Hook Clamp – Doughty Engineering
Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade parts which make it ideal for use at outdoor events.

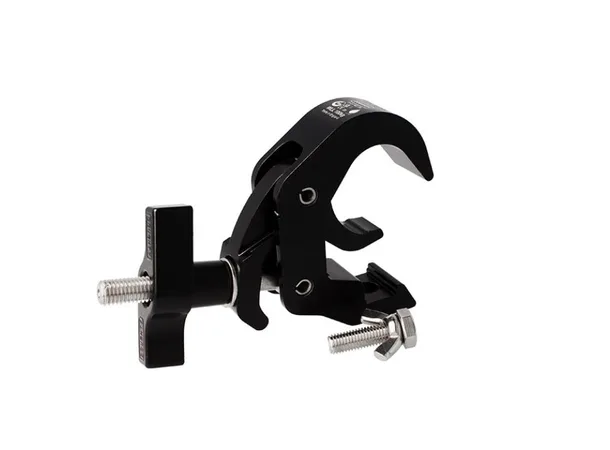

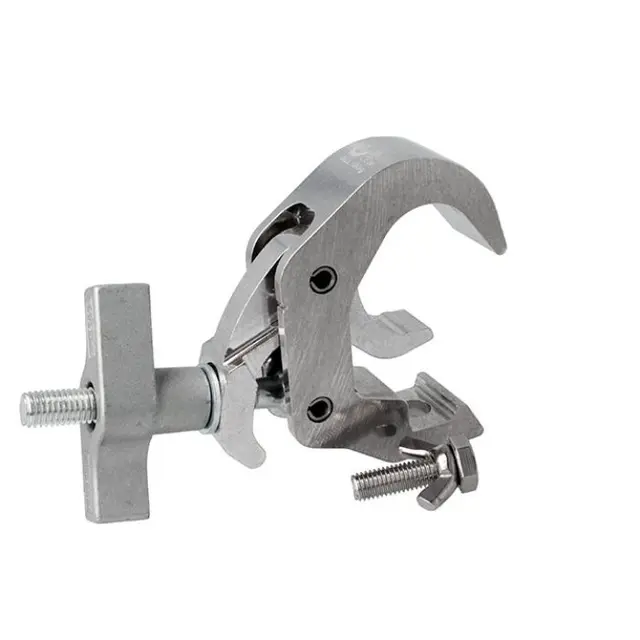

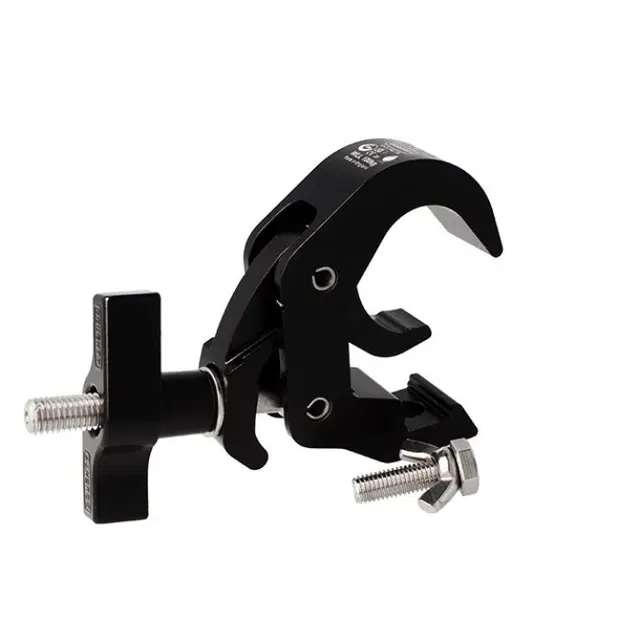

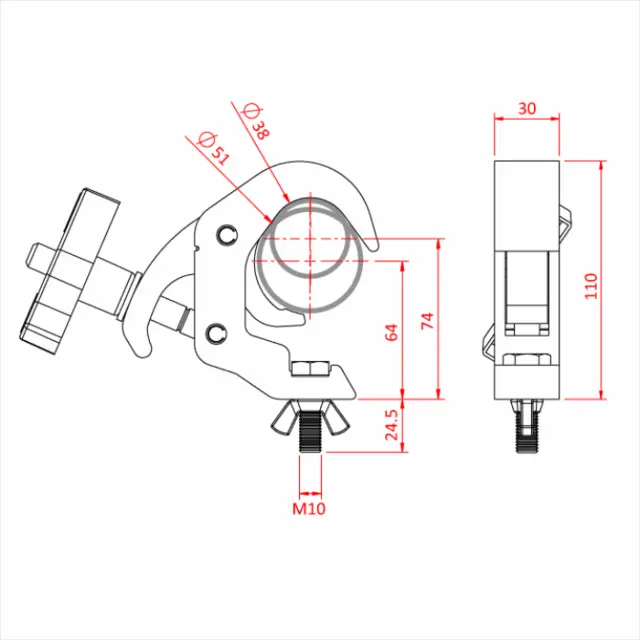

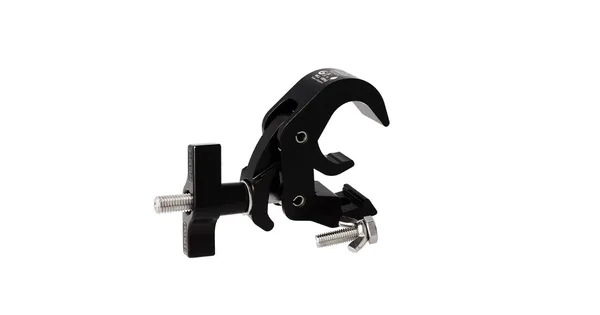

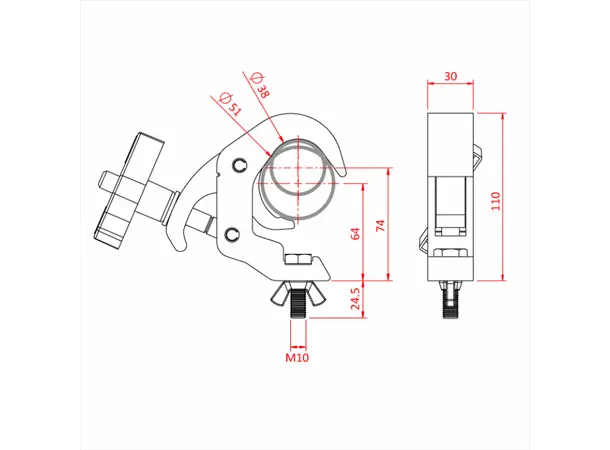

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 100Kg and is 30mm wide. Slotted to hold captive an M10 or M12 nut or bolt head and supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut.
Ideal for hanging moving heads on trussing as it will not damage the cords. Available in a silver or powder coated black finish.
Specification
Finish:
Polished Black Powder Paint
Clamp Width:
30mm
Tube Diameter:
38-51mm
WLL:
100Kg
Box Qty:
18
