All Weather Mammoth Hook Clamp – Doughty Engineering

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.

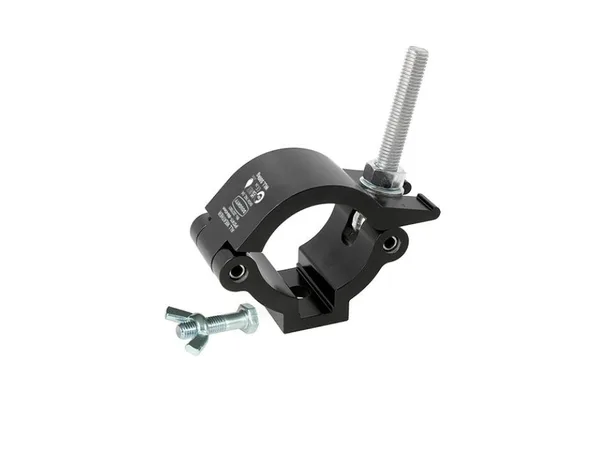

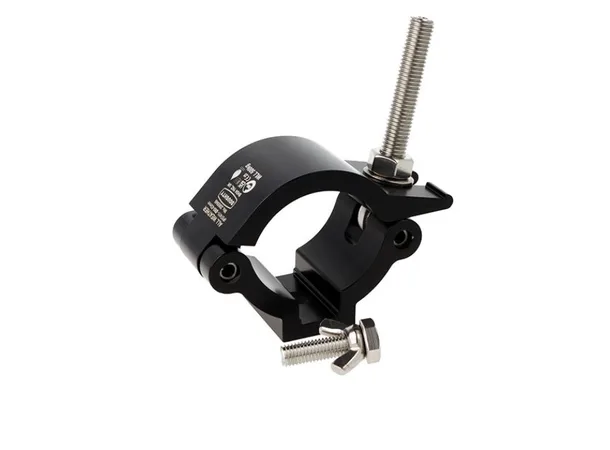

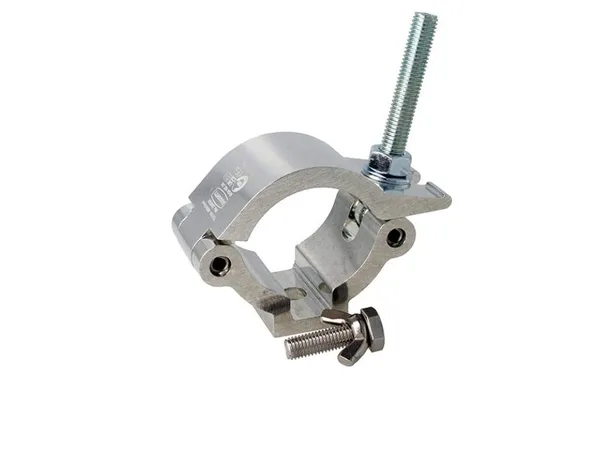

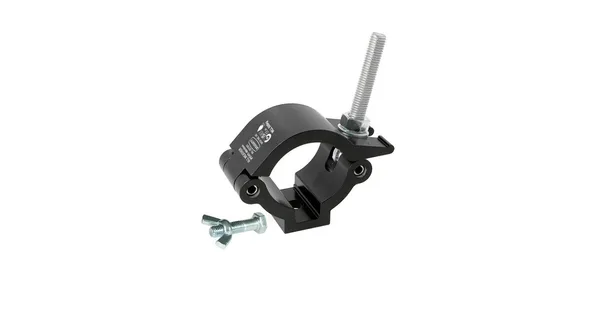

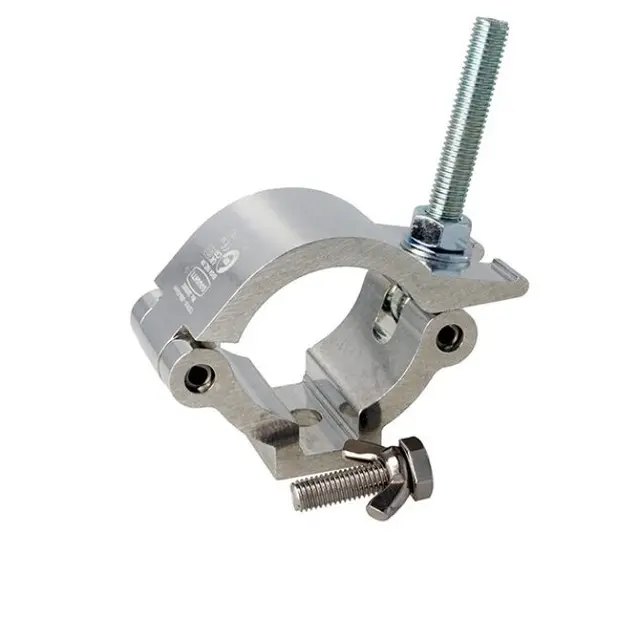

A high tensile extruded aluminium clamp that is suitable for 60mm to 63mm diameter tubes. It has a WLL of 500Kg and is 50mm wide. Slotted to hold captive an M10 or M12 nut or bolt head and supplied with an A4 grade stainless steel M10 X 35 bolt and wing nut.

Supplied with a sachet of Copper Grease to prevent Stainless threads galling, and available in a silver or powder coated black finish.

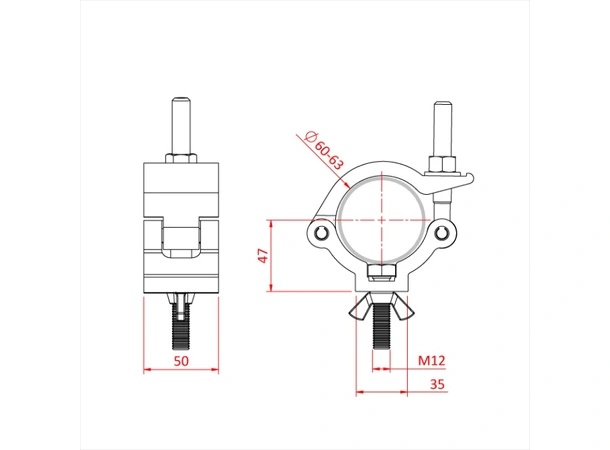

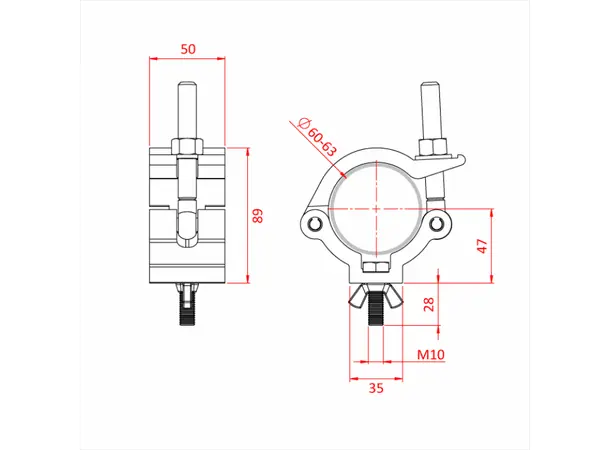

Specification

Colour:
Silver Black

Clamp Width:
50mm

Tube Diameter:
60 – 63mm

WLL:
500Kg

Box Qty:
12
