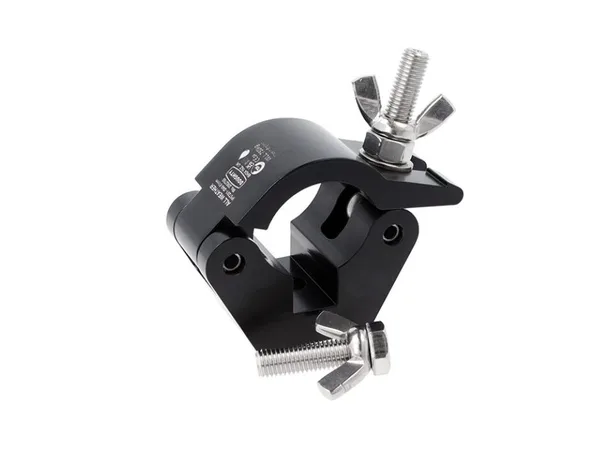

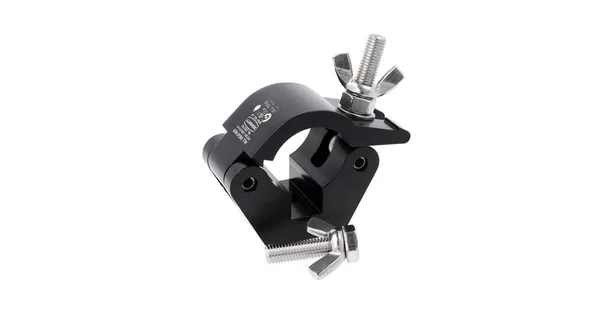

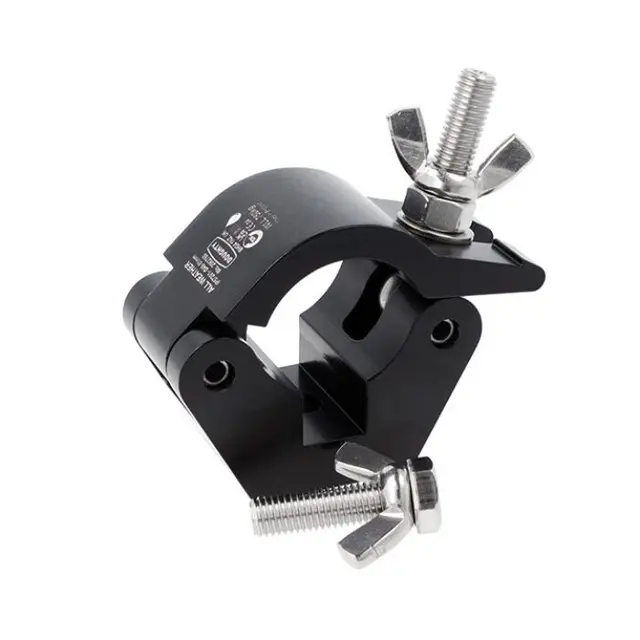

All Weather Doughty Hook Clamp

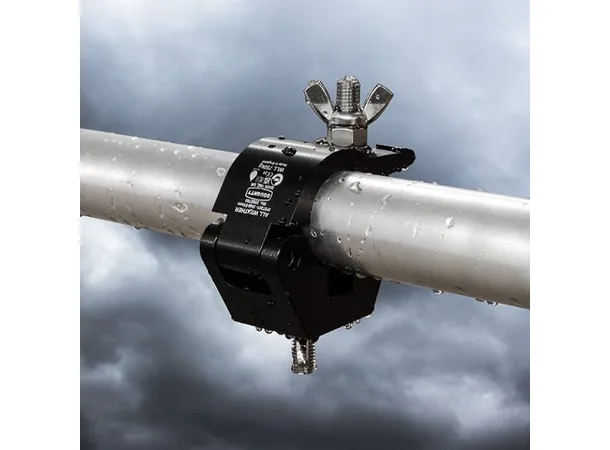

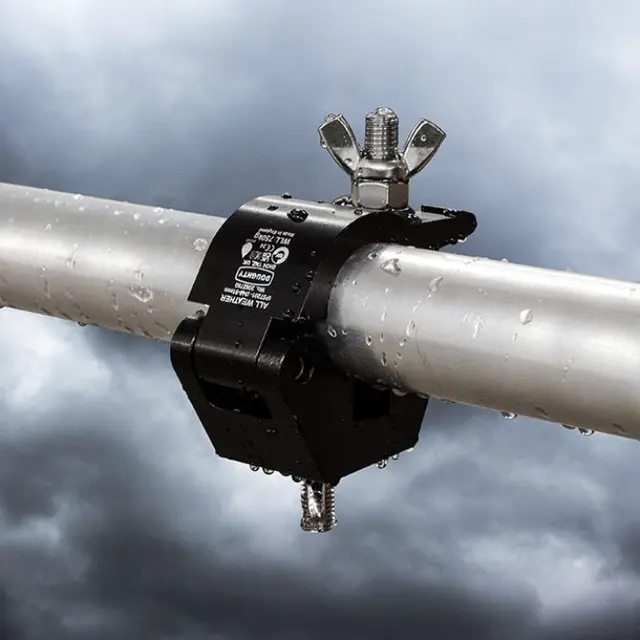

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts, which make it ideal for use at outdoor events.

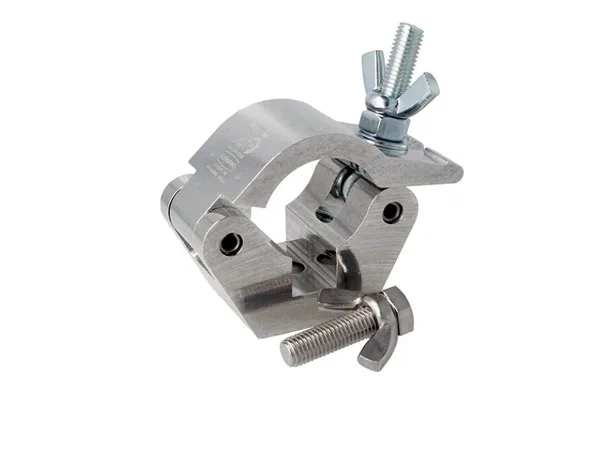

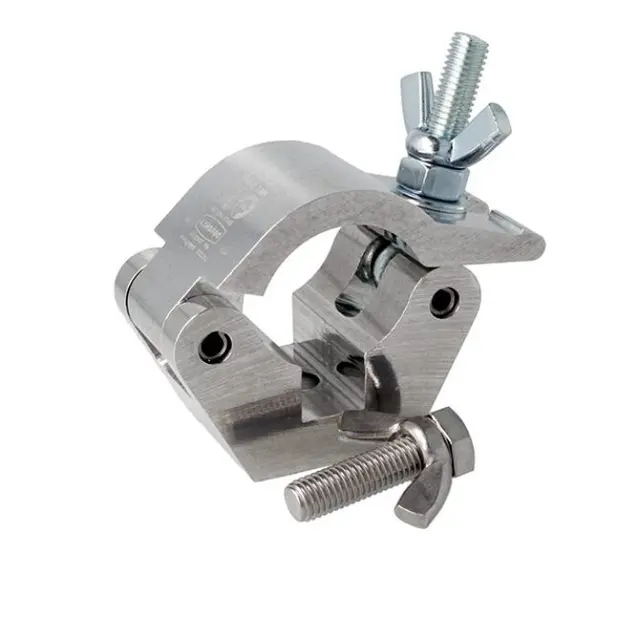

The industry standard slimline half coupler. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 750Kg and is 50mm wide. Slotted to hold captive an M12 nut or bolt head and supplied with an A4 grade stainless steel M12 x 45 bolt and wing nut.

Ideal for use on trussing as it will not damage the cords. Supplied with a sachet of Copper Grease to prevent stainless threads galling, and available in a powder coated black finish.

TÜV APPROVED

Part Number

Black Powder Paint: IP57201

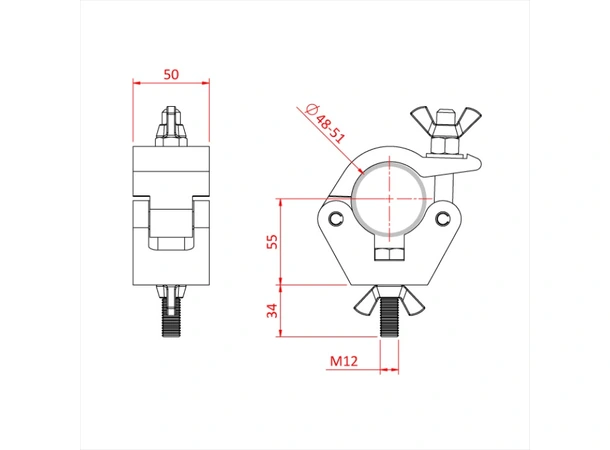

Specification

• Finish: Black Powder Paint
• Clamp Width: 50mm
• Tube Diameter: 48-51mm
• WLL: 750kg
