All Weather Doughty Swivel Coupler

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts, which make it ideal for use at outdoor events.

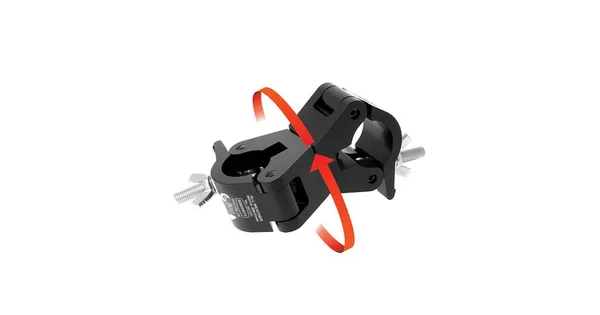

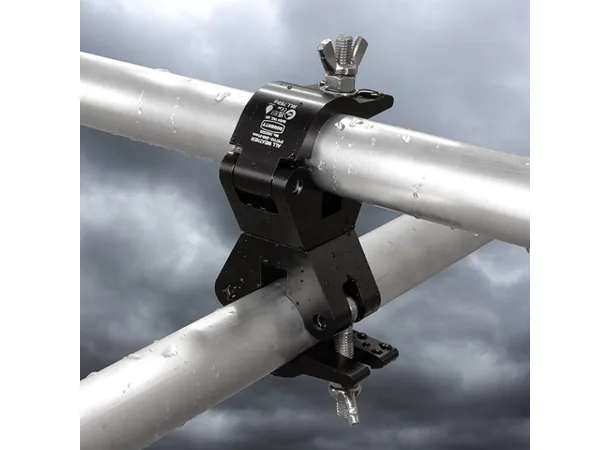

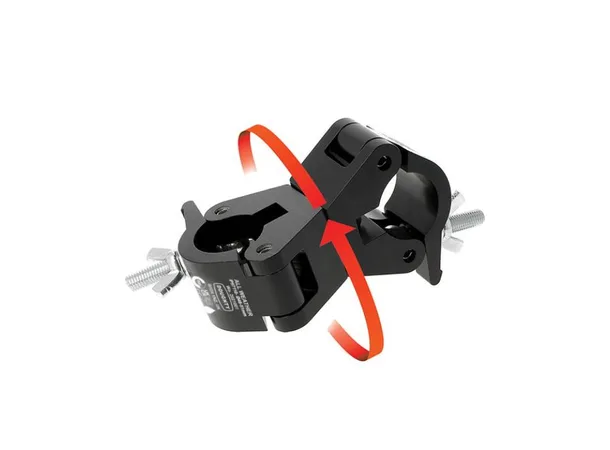

The industry standard swivel coupler. Consists of a pair of high tensile extruded aluminium clamps back to back designed to swivel 360 degrees, that are suitable for 48mm to 51mm diameter tubes. It has a WLL of 750Kg and uses a pair of 50mm wide clamps.

Ideal for use on trussing as it will not damage the cords. Supplied with a sachet of Copper Grease to prevent stainless threads galling, and available in a powder coated black finish.

TÜV APPROVED

Part Number

Black Powder Paint: IP57110

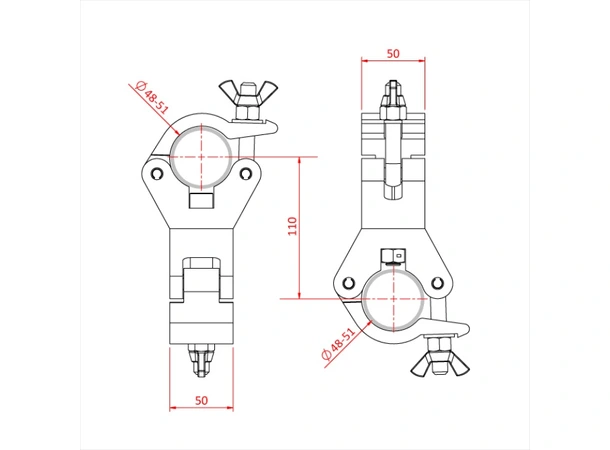

Specification

• Finish: Black Powder Paint
• Clamp Width: 50mm
• Tube Diameter: 48-51mm
• Tube Centres: 110mm
• WLL: 750kg
