All Weather Doughty Swivel Coupler – Doughty Engineering

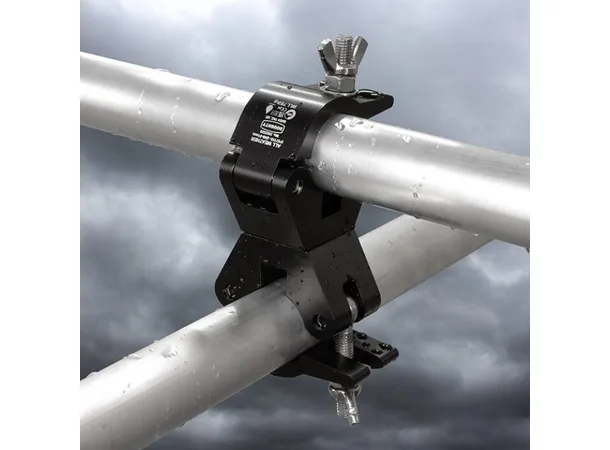

Part of our new All Weather clamp range manufactured with 316 stainless steel and AW6082 T6 grade aluminium parts which make it ideal for use at outdoor events.

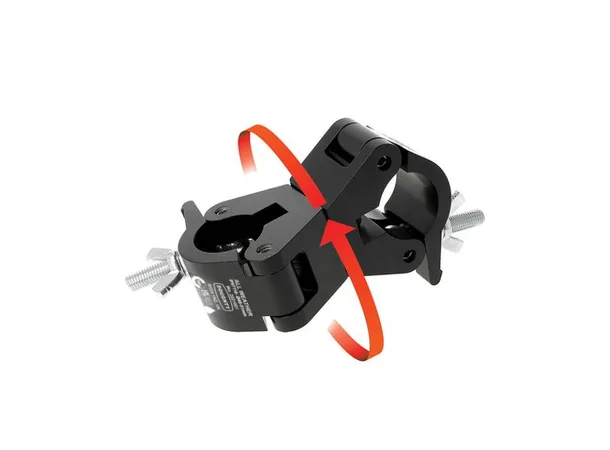

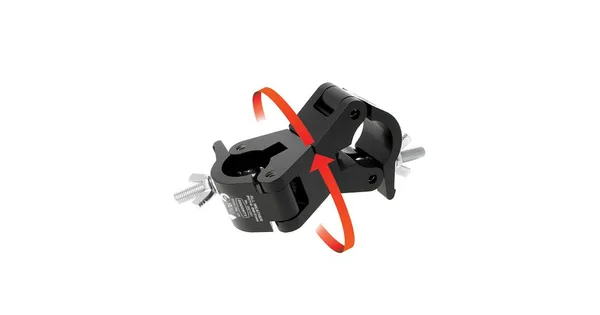

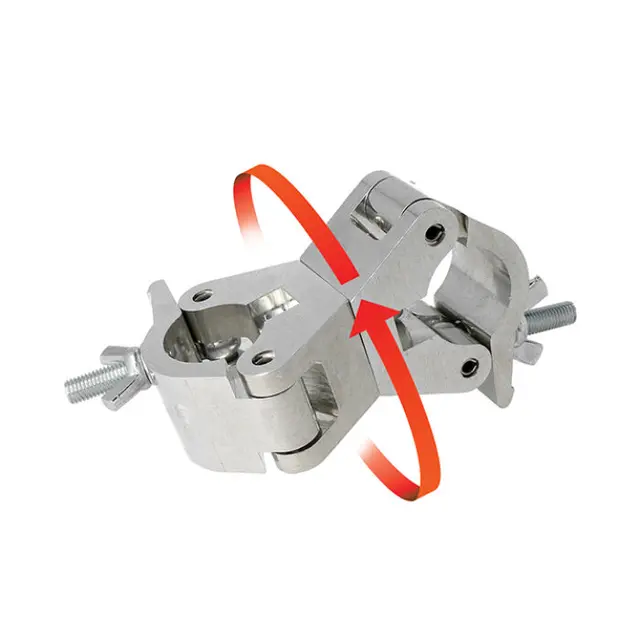

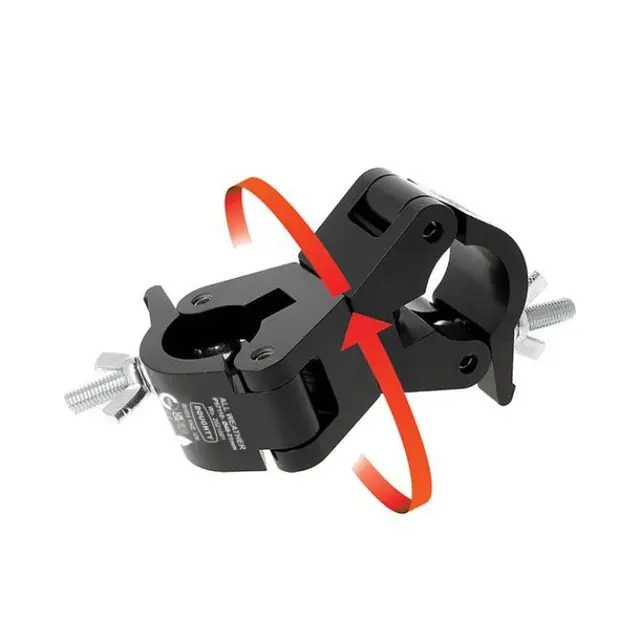

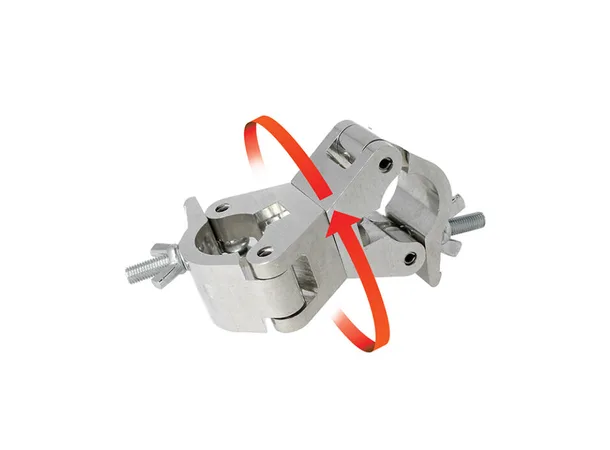

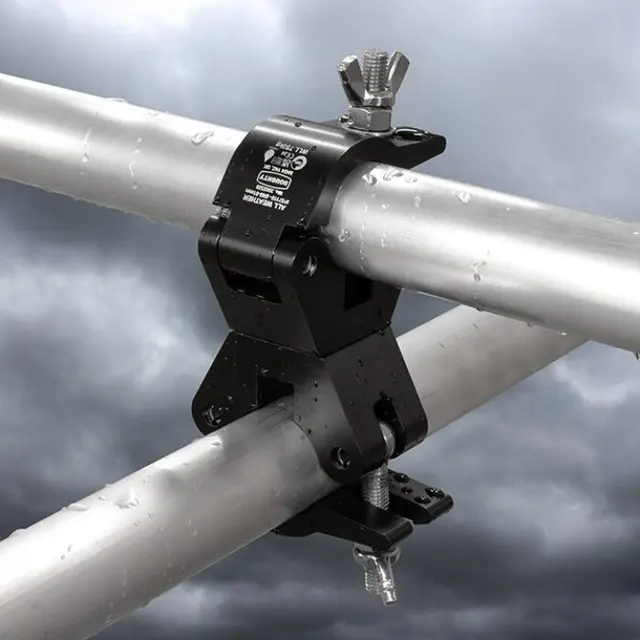

The industry standard swivel coupler. Consists of a pair of high tensile extruded aluminium clamps back to back designed to swivel 360 degrees, that are suitable for 48mm to 51mm diameter tubes. It has a WLL of 750Kg and uses a pair of 50mm wide clamps.
Ideal for use on trussing as it will not damage the cords. Supplied with a sachet of Copper Grease to prevent Stainless threads galling, and available in a silver or powder coated black finish.

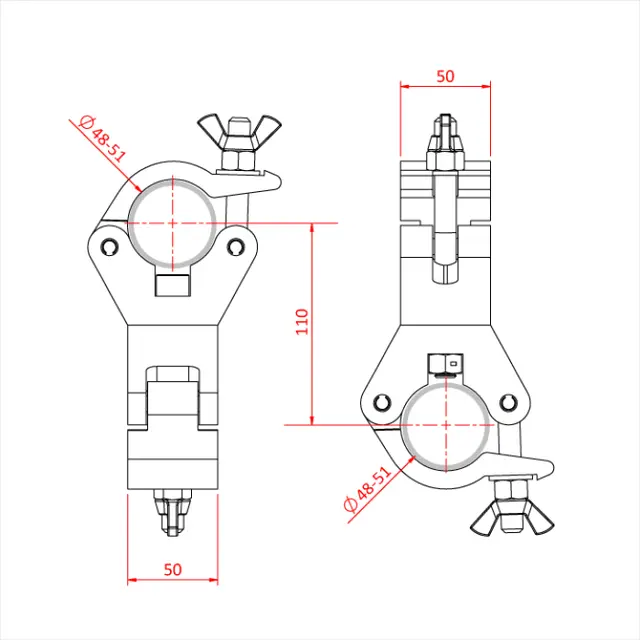

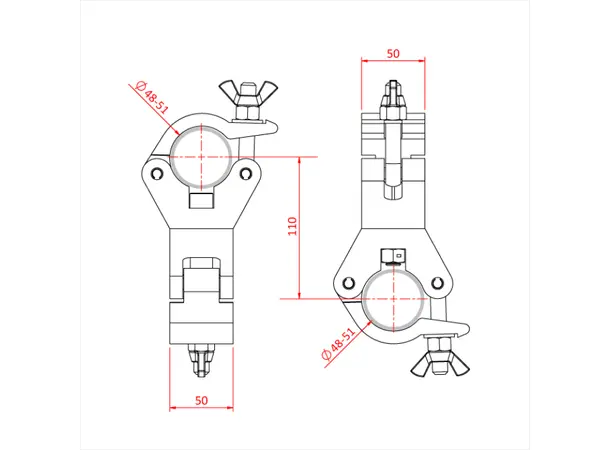

Specification
Colour:
Silver Black
Clamp Width:
50mm
Tube Diameter:
48-51mm
Tube Centres:
110mm
WLL:
750kg
Box Qty:
6
