CODA Audio’s LINUS system racks provide complete housing and system connection solutions for all CODA Audio loudspeaker systems.
The touring variants feature an internal steel shock-mount suspension system, which ensures maximum protection for the LINUS amplifiers housed inside. The design includes a rack to rack connection system allowing for flown or ground stacked positioning and the connection point for the transport system.
The racks also provide an advanced front facing cable connection patch panel and rear mounted AC mains distribution system designed to facilitate quick and accurate set-up.
In addition, the LINUS DSP platform provides factory presets for all CODA Audio products. Therefore, along with providing FOH system control, these racks can be used for applications such as: monitor systems, delay systems, zoned systems, wherever you need power and processing for your CODA system. Smart in design and highly durable in construction, the rack design completes the CODA Audio system concept for touring and temporary applications.
“LINUS Technology” delivers in all areas to all audio professionals.
LINUS T-RACK :

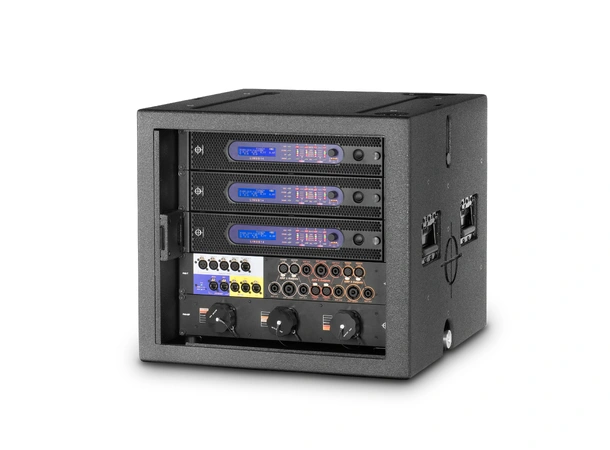

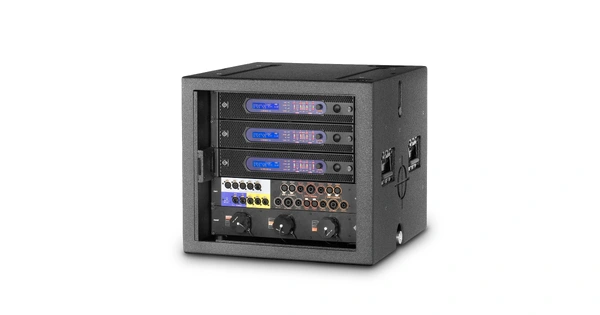

12-Channel Touring Rack
3x LINUS14D amplifier in a 10U heavy-duty rack
19”/10U System Rack including 3x LINUS14D, LINUS PAN-T, Internal Cable set, PDU-T
Overview
CODA Audio strives to provide complete solutions that allow for simple, setup, integration and operation of CODA Audio systems. The LINUS T-RACK is an important part of this effort. The T-RACK houses three LINUS14D amplifiers in an efficient road ready package. This factory-made standard includes switchable rear mounted power distribution, shock mounted infrastructure and ready-to-fly integrated rigging hardware that allow it to be used almost anywhere. The T-RACK’s simplified front mounted connectivity and effortless expandability make it easy to use.
Main Features
- 3x LINUS14D amplifiers in a 10U heavy-duty rack
- Delivers 12x 3500 W @ 4 Ohm
- Integrated shock-mount suspension system for maximum protection
- Integrated rigging hardware for flown or ground stacked deployment
- Rear mounted power distribution (optional switchable: US / EU)
- Selectable inputs: Analog, AES over Ethernet, LiNET and DANTE
- Outputs on NL4, NL8 (Socapex optional available)
- 5-pin XLR comparator inputs for use with CODA Audio sensor controlled subwoofers
- All inputs and outputs are at the front for easy workflow
- Expandable – rack to rack internal cabling allows to join two or more racks together
- Sliding doors for quick access
- Protection grille on the rear
- Can drive all CODA loudspeaker systems
- Compatible to M-RACK
