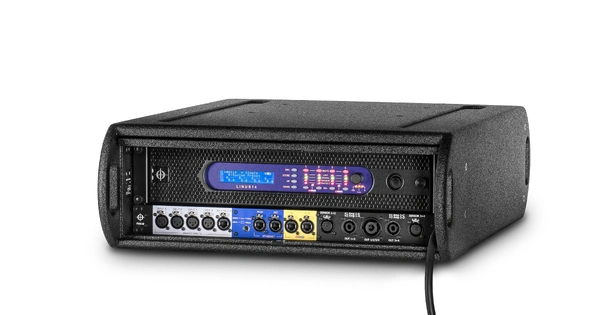

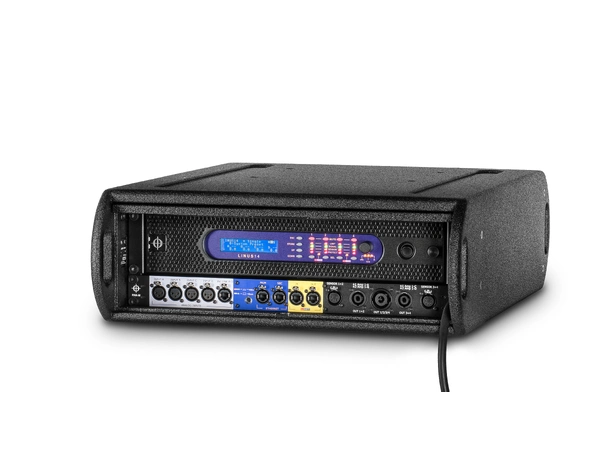

CODA Audio Linus M-RACK 4x3500W 3U Rack with Linus14D amplifier

CODA Audio Linus M-RACK 4x3500W

3U Rack with Linus14D amplifier

Varenr: LINUS M-RACK
174 627,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (20 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

LINUS M-RACK :

Compact 4-Channel Touring Rack

One LINUS14D amplifier in a 3U case

19”/3U Mobile Rack including 1x LINUS14D, LINUS PAN-M, Internal Cable set



Overview

The LINUS M-RACK continues CODA Audio’s comprehensive system-based approach by providing a single LINUS14D DSP/amplifier with a CODA PAN-M connector panel in a compact 3U rack package. As the LINUS14D is capable of powering every loudspeaker in the CODA catalogue, the M-RACK makes every smaller portable CODA system as clean and flawless in terms of aesthetics and connectivity as it is in terms of system performance.



Main Features

  • One LINUS14D amplifier in a 3U case
  • 4x 3500 W @ 4 Ohm
  • Selectable inputs: Analog, AES over Ethernet, LiNET and DANTE
  • Outputs on NL4, NL8
  • 5-pin XLR comparator inputs for use with CODA Audio sensor controlled subwoofers
  • All connectors at the front for easy workflow
  • Sliding door for quick access
  • Protection grille on the rear for connectors protection
  • Can drive all CODA Audio loudspeaker systems





Teknisk info

Produktinformasjon

AC input Schuko 16A 230V/-190cm
Analog
  • 1x etherCON® analog Input/ Link
  • 4x XLR Input
Components
  • 1x Enclosure, sliding doors on front side, protection grille on the rear side
  • 1x LINUS14D
  • 1x PAN-M Connecting Panel
Connecting panel front side
  • Non powered connecting panel including integrated cabling system
  • PAN-M
Dante 1x etherCON®
Dimensions (WxHxD) 528 x 195 x 652 mm / 20.79” x 7.68” x 25.67”
Enclosure material Birch plywood
Finish Polyurea coating
LINET (AES/EBU)
  • 1x etherCON® Input (8x signal channels)
  • 1x etherCON® Output (8x signal channels)
Net weight 31.5 kg / 69.45 lbs.
Outputs
  • 1x Neutrik NL8 speakON®
  • 2x Neutrik NL4 speakON®
Power PAN-M connecting panel is suited with a cable link through the unit
Remote Control
  • 1x etherCON® Input
  • 1x etherCON® Output
  • AES over Ethernet activated (Black Pushbutton): Transport of remote control incl. 4x LINET (AES/EBU)
  • LINET activated (Yellow Pushbutton): LINET signal and remote control sockets seperated
  • Recessed push button to select AES over Ethernet signal input
Sensor Control Connection 2x XLR5
Shipping dim. (WxHxD) 555 x 240 x 685 mm / 21.85” x 9.45” x 26.97”
Shipping weight 37 kg / 81.57 lbs.
Type System Rack


Dokumenter
ProdusentSupportCoda Audio Linus M-Rack 14D Datasheet.pd
