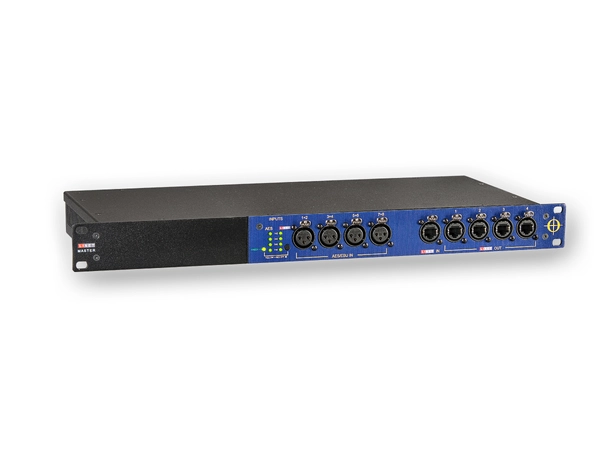

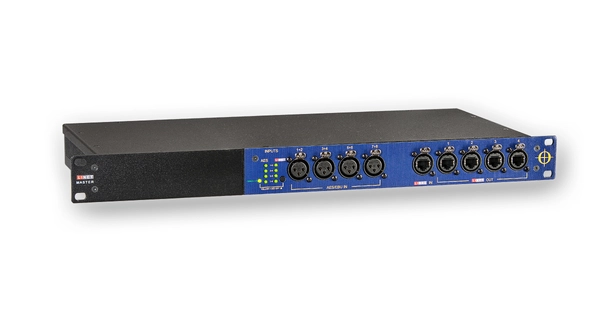

CODA Audio LiNET Master

Redundant 19" AES To LiNET Converter

Converts AES/EBU to LiNET, 4x AES/EBU inputs (8 channels)

Overview

LiNET Master is the bridge between a mixing console and the CODA digital transport system. It serves as a perfect AES/EBU front-end ensuring ultimate compatibility and redundancy to the entire audio chain.

High quality 44.1 – 192 kHz sample rate converters integrated seamlessly with a pristine word clock guarantee excellent audio transmission with perfect synchronisation at lengths of 300 m with shielded CAT5e cabling, or longer with shielded CAT6A.

Main Features

• 19” / 1U
• Converts AES/EBU to LiNET
• 4x AES/EBU inputs (8 channels)
• 1x LiNET input (8 channels)
• 4x LiNET outputs
• Word Clock
• Sample rate 44.1 – 192 kHz

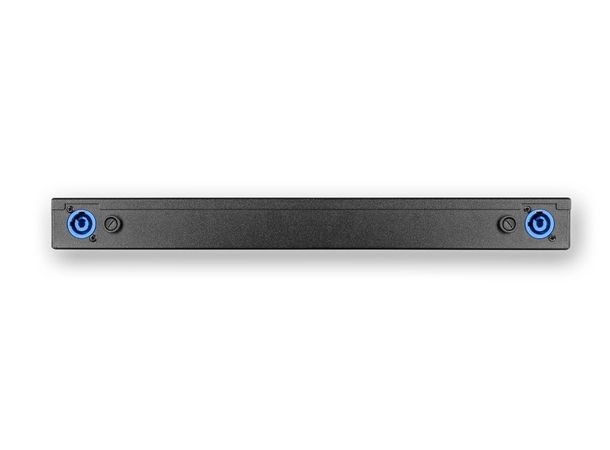

• Dual redundant power supply
• Compatible with all LINUS devices
• Redundant connection to LiNET Switch
• 5 year warranty
